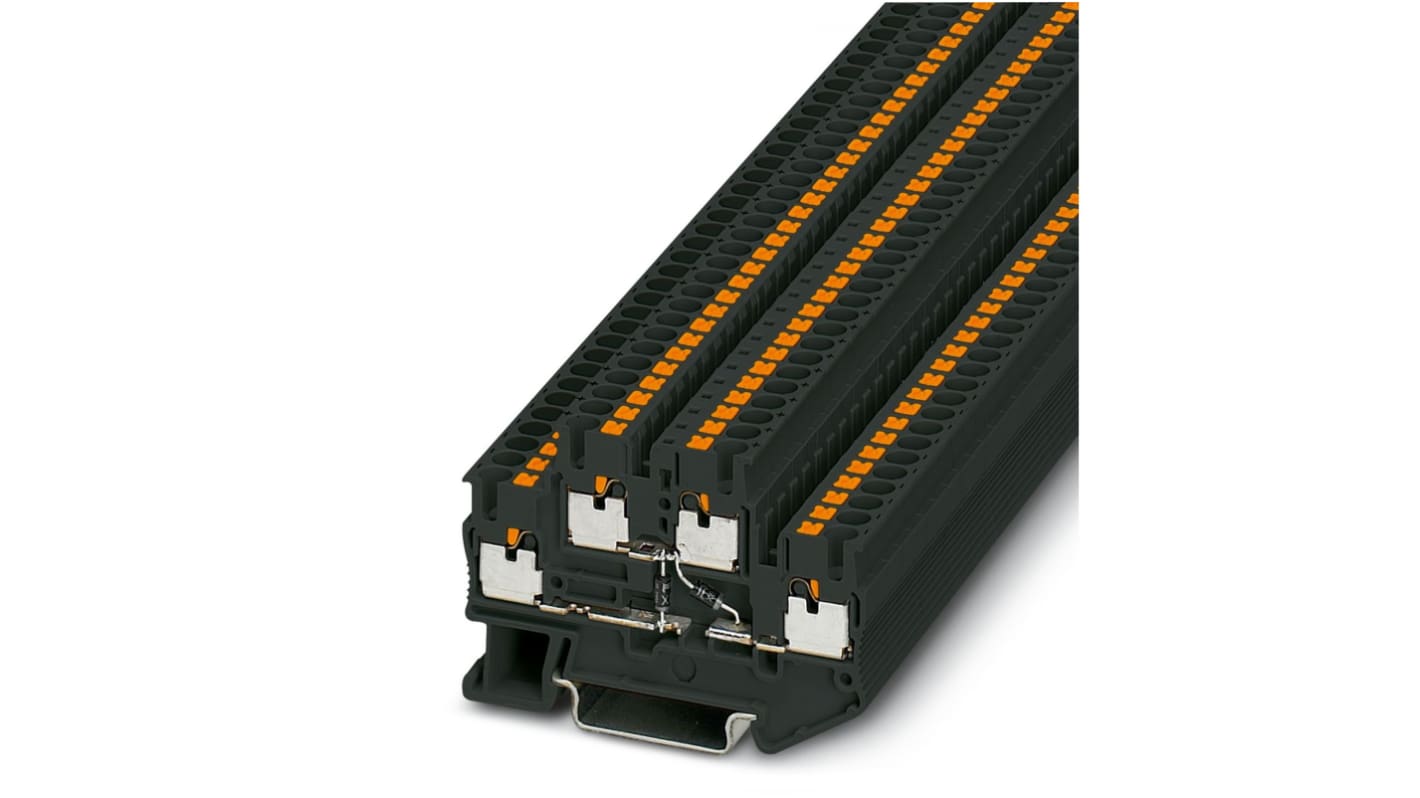

Phoenix Contact 3211444 PTTB 2.5-2DIO/O-UL/O-UR BK Series Black, 0.14 → 4mm², Push In Termination

Subtotal (1 pack of 50 units)*

£416.65

(exc. VAT)

£500.00

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
50 +£8.333£416.65

*price indicative

RS Stock No.:
207-3751
Mfr. Part No.:
3211444
Brand:
Phoenix Contact
Find similar products by selecting one or more attributes.
Select all

Brand

Phoenix Contact

Colour

Black

American Wire Gauge

12 → 26AWG

Voltage Rating

500 V

Series

PTTB 2.5-2DIO/O-UL/O-UR BK

Termination Method

Push In

Cable CSA

0.14 → 4mm²

Fused

No

Current Rating

500mA

Model Number

PTTB 2,5-2DIO/O-UL/O-UR BK

COO (Country of Origin):
PL
The Phoenix Component terminal block, with integrated 1N4007 diode, The max. current is determined by the diode.

reverse voltage: 1300 V
maximum continuous current: 0.5 A
nom. voltage: 500 V
nominal current: 0.5 A
connection method: Push-in connection
number of connections: 4
cross section: 0.14 mm² - 4 mm²
AWG: 26 - 12

This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
