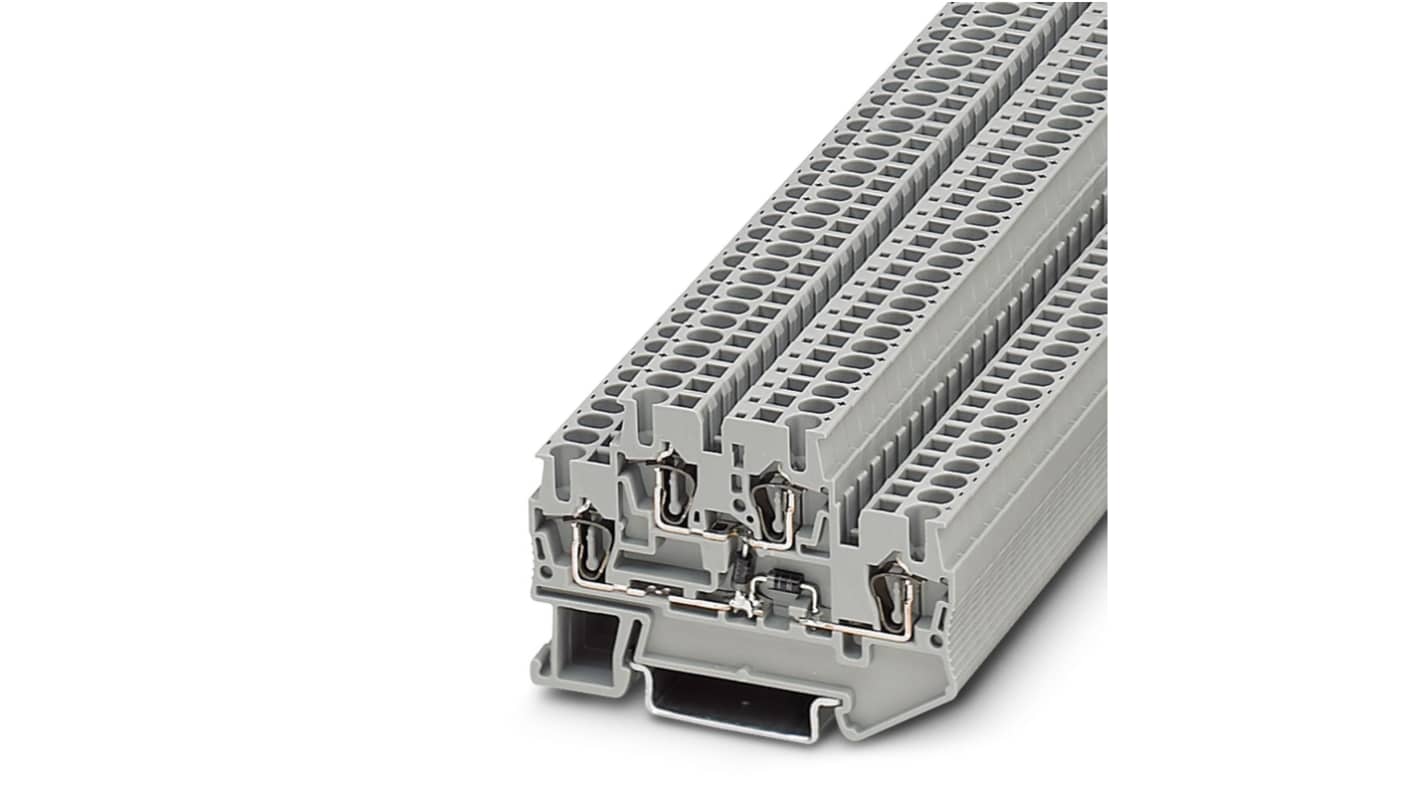

Phoenix Contact 3031584 STTB 2.5-2DIO/O-UL/UR-UL Series DIN Rail Terminal Block Grey, 0.08mm², 4 mm², 2-Level, Spring
- RS Stock No.:
- 776-8129
- Mfr. Part No.:
- 3031584
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£35.40
(exc. VAT)
£42.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 50 unit(s) shipping from 20 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | £7.08 | £35.40 |
*price indicative
- RS Stock No.:
- 776-8129
- Mfr. Part No.:
- 3031584
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | DIN Rail Terminal Block | |
| Colour | Grey | |
| Sub Type | Feed Through | |
| Number of Levels | 2 | |
| Series | STTB 2.5-2DIO/O-UL/UR-UL | |
| Voltage | 250V | |
| Cable CSA | 0.08, 4mm² | |
| Minimum Wire Size AWG | 28AWG | |
| Maximum Wire Size AWG | 12AWG | |
| Fused | No | |
| Termination Type | Spring Cage | |
| Terminal Block Current | 26A | |
| Minimum Operating Temperature | -60°C | |
| Maximum Operating Temperature | 110°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | IEC 60947-7-1, EAC, cULus, CSA | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type DIN Rail Terminal Block | ||
Colour Grey | ||
Sub Type Feed Through | ||
Number of Levels 2 | ||
Series STTB 2.5-2DIO/O-UL/UR-UL | ||
Voltage 250V | ||
Cable CSA 0.08, 4mm² | ||
Minimum Wire Size AWG 28AWG | ||
Maximum Wire Size AWG 12AWG | ||
Fused No | ||
Termination Type Spring Cage | ||
Terminal Block Current 26A | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature 110°C | ||
Hazardous Area Certification No | ||
Standards/Approvals IEC 60947-7-1, EAC, cULus, CSA | ||
- COO (Country of Origin):
- PL
