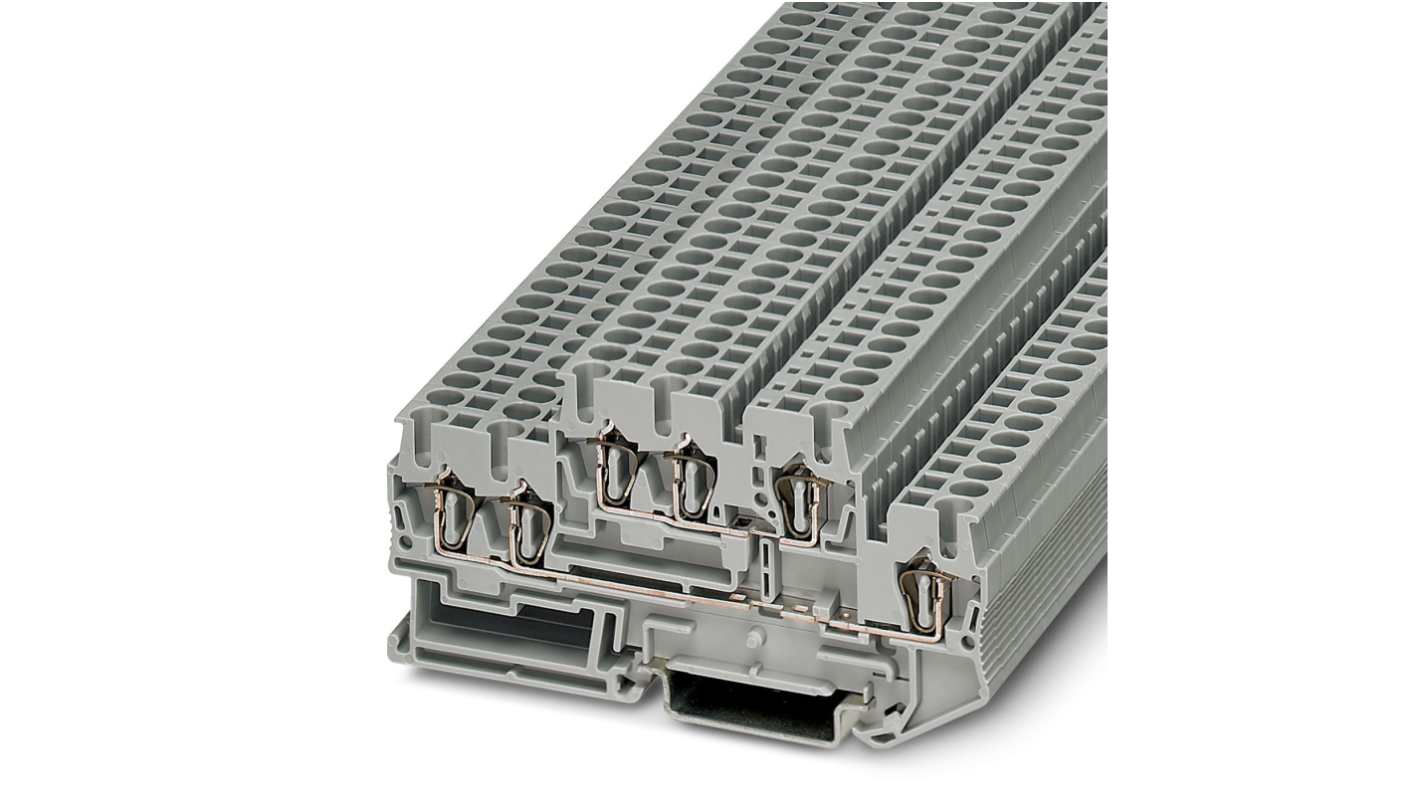

Phoenix Contact 3038516 STTB 2.5-TWIN Series Grey, Double-Level, Spring Clamp Termination
- RS Stock No.:
- 776-8034
- Mfr. Part No.:
- 3038516
- Brand:
- Phoenix Contact
Subtotal (1 pack of 5 units)*
£16.16
(exc. VAT)
£19.39
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 95 unit(s) ready to ship
- Plus 270 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £3.232 | £16.16 |
*price indicative
- RS Stock No.:
- 776-8034
- Mfr. Part No.:
- 3038516
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Phoenix Contact | |
Colour | Grey | |
Number of Levels | Double | |
Series | STTB 2.5-TWIN | |
American Wire Gauge | 28 → 12AWG | |
Voltage Rating | 500 V | |
Termination Method | Spring Clamp | |
Current Rating | 22A | |
Model Number | STTB 2,5-TWIN | |
Select all | ||
---|---|---|
Brand Phoenix Contact | ||
Colour Grey | ||
Number of Levels Double | ||
Series STTB 2.5-TWIN | ||
American Wire Gauge 28 → 12AWG | ||
Voltage Rating 500 V | ||
Termination Method Spring Clamp | ||
Current Rating 22A | ||
Model Number STTB 2,5-TWIN | ||
- COO (Country of Origin):
- PL
Phoenix Contact STTB 2.5-TWIN Series DIN Rail Terminal Block, 22A - 3038516
This DIN rail terminal block enhances electrical connections across various applications. Its compact double-level design optimises space utilisation in control cabinets and junction boxes. The reliable connection method ensures robust performance in environments ranging from industrial to railway applications.
Features & Benefits
• Efficient spring cage connection for secure conductor handling
• Rated for 22A to accommodate higher loads
• Complies with standard requirements for improved safety
• Constructed from durable material for longevity
• Corrosion-free terminal points reduce maintenance needs
• Rated for 22A to accommodate higher loads
• Complies with standard requirements for improved safety
• Constructed from durable material for longevity
• Corrosion-free terminal points reduce maintenance needs
Applications
• Utilised in plant engineering for efficient wiring solutions
• Suitable for railway applications
• Suitable for railway applications
How it can be install this terminal block in my application?
Ensure proper mounting on NS35 rails, then connect conductors according to the specified stripping lengths.
What wire sizes can be accommodated with this terminal block?
It can handle rigid conductors from 0.08mm² to 4mm² and flexible wires up to 2.5mm².
Is this terminal block suitable for both low and high temperatures?
Yes, it operates effectively from -60 to 110°C, suitable for various environmental conditions.
Can multiple conductors be connected simultaneously?
Yes, it supports multiple flexible conductors with TWIN ferrules for efficient wiring configurations.
