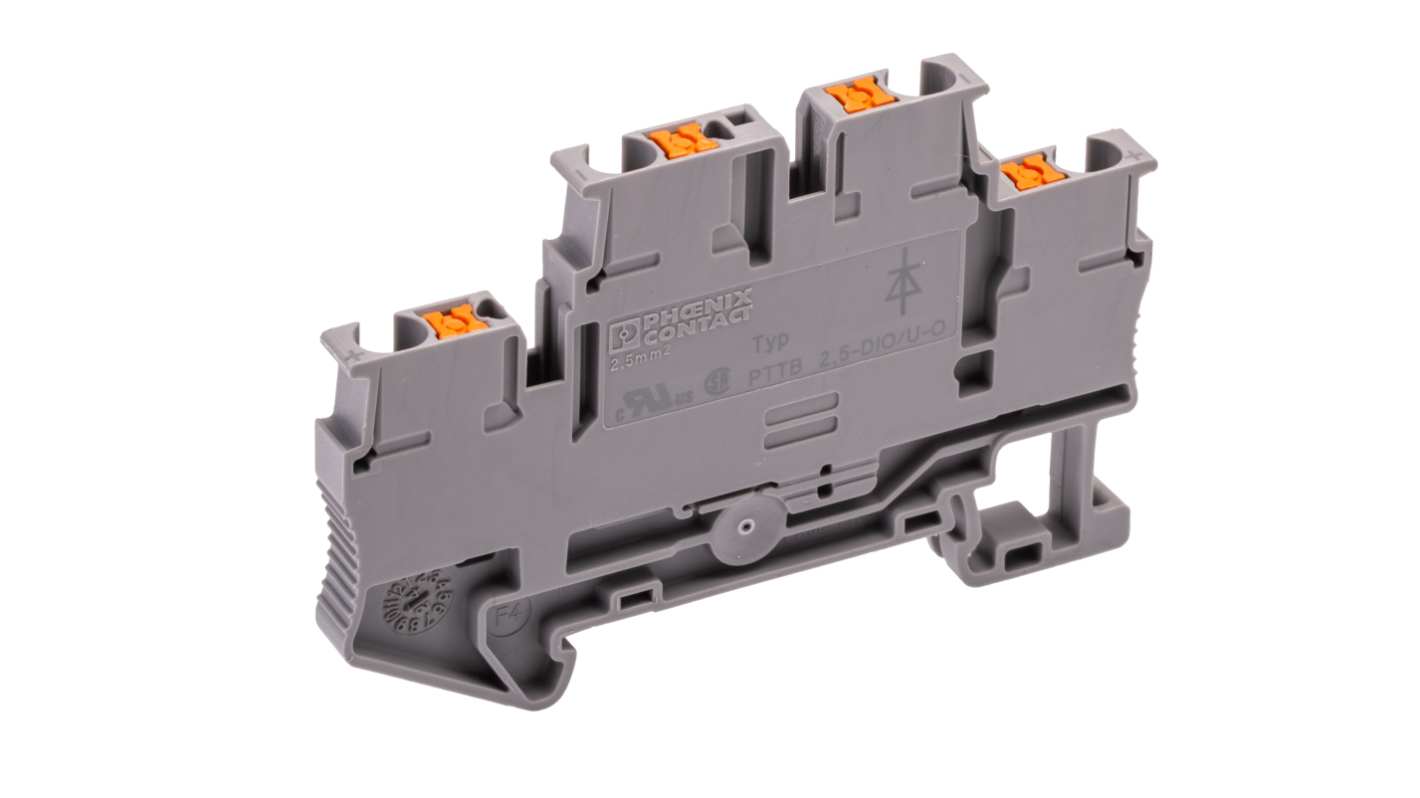

Phoenix Contact PTTB 2.5-DIO/U-O Series Grey Double Level Terminal Block, 0.14 → 4mm², Double-Level, Push In
- RS Stock No.:
- 687-9760
- Mfr. Part No.:
- 3210936
- Brand:
- Phoenix Contact
75 In stock - FREE next working day delivery available
15 available from Europe for delivery within 2 working day(s).
Price Each (In a Pack of 5)
£4.394
(exc. VAT)
£5.273
(inc. VAT)
Units | Per unit | Per Pack* |
---|---|---|
5 - 25 | £4.394 | £21.97 |
30 - 55 | £4.174 | £20.87 |
60 + | £3.998 | £19.99 |
*price indicative
- RS Stock No.:
- 687-9760
- Mfr. Part No.:
- 3210936
- Brand:
- Phoenix Contact
Technical Reference
Legislation and Compliance
Product Details
Diode and Lamp Terminal Blocks
Using the diode terminal blocks of the PT push-in connection terminal blocks makes it possible to solve a variety of switching tasks. The diode is integrated either from left to right or vice versa in the terminal housings. Three and four-conductor terminal blocks are also available for multi-conductor connections.
Integrated diodes (1N 4007) and lamps on certain parts
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits
Push-In technology with 50 % less insertion force for direct plugging from 0.34 mm²
Configurations include lamp test circuits and fault message circuits
Push-In Connection Terminal Blocks
The PT series is characterised by easy, direct conductor connection, and it consistently uses the advantages of the CLIPLINE complete system. The up to 50% lower insertion forces of the PT push-in connection method also allows easy and direct plugging of solid and stranded conductors with ferrules of 0.34mm2 and up.
Specifications
Attribute | Value |
---|---|
Colour | Grey |
Number of Levels | Double |
American Wire Gauge | 26 → 12AWG |
Series | PTTB 2.5-DIO/U-O |
Termination Method | Push In |
Cable CSA | 0.14 → 4mm² |
Voltage Rating | 500 V |
Current Rating | 20A |
Model Number | PTTB 2,5-DIO/U-O |
