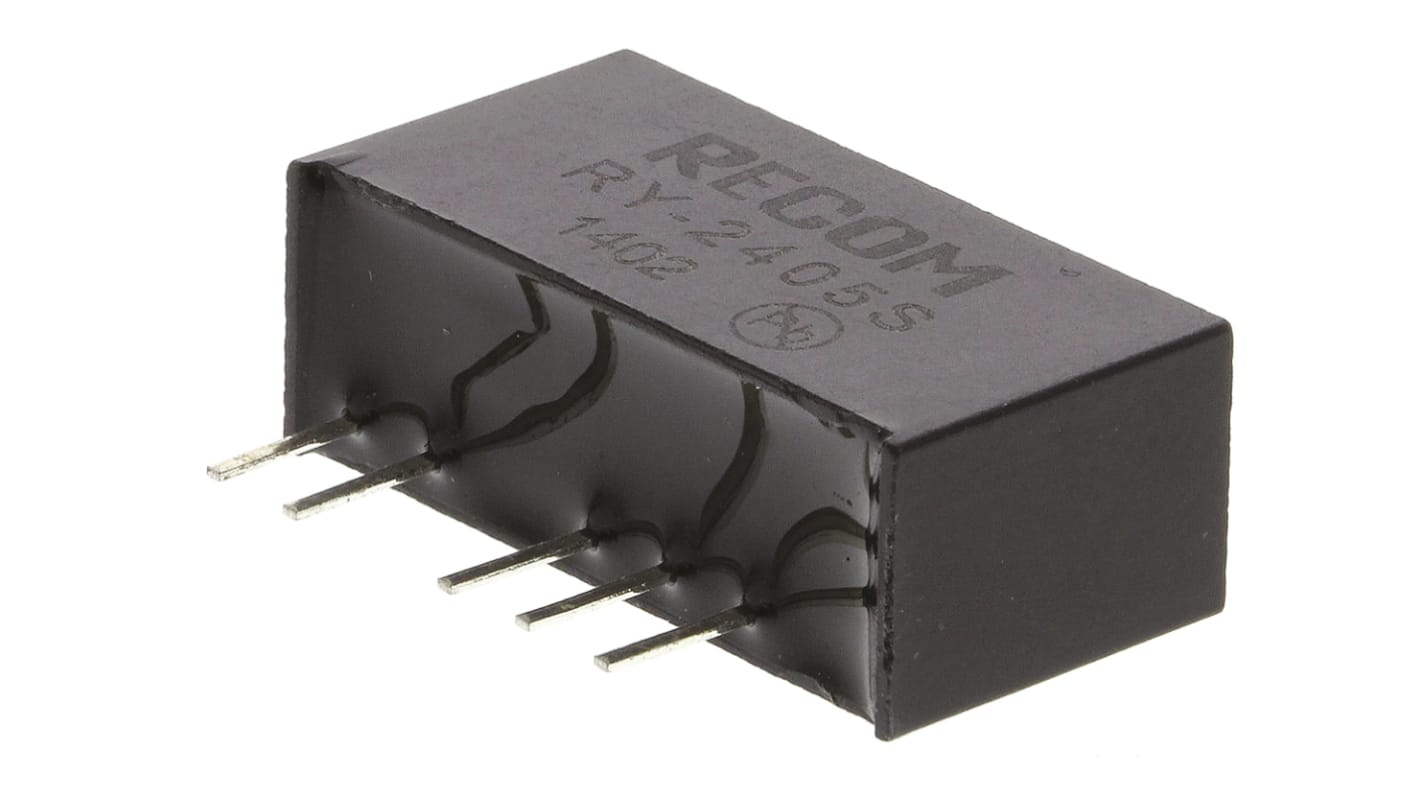

Recom RY DC-DC Converter, 5V dc/ 200mA Output, 22.8 → 25.2 V dc Input, 1W, Through Hole, +70°C Max Temp -40°C
- RS Stock No.:
- 672-7499
- Mfr. Part No.:
- RY-2405S
- Brand:
- Recom
3 In stock - FREE next working day delivery available
Price Each
£8.24
(exc. VAT)
£9.89
(inc. VAT)
Units | Per unit |
1 + | £8.24 |
- RS Stock No.:
- 672-7499
- Mfr. Part No.:
- RY-2405S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom 1W SIP Single/Dual Output Regulated Isolated DC-DC Converter - RY Series
Regulated output
Control pin for remote On/Off
1kVdc isolation
UL94V-0 package material
No heatsink required
Fully encapsulated
SIP7 package
Control pin for remote On/Off
1kVdc isolation
UL94V-0 package material
No heatsink required
Fully encapsulated
SIP7 package
Note
Operating temperature range is with derating above 70°C.
RECOM DC-DC Converter, 22.8 to 25.2V DC Input Voltage, 5V DC Output Voltage - RY Series - RY-2405S
Regulate an electrical output using this DC-DC converter from RECOM. This versatile component converts an input voltage between 22.8 and 25.2V DC to a steady output of 5V DC for the safe and efficient operation of low-power devices. It's enclosed in a self-extinguishing package for safety in the event of a fire. A wide operating temperature range of -40°C to +70°C makes it suitable for use in demanding environments. Thanks to its compact size of 19.65 (length) x 7.05 (width) x 10.2mm (depth), this unit helps to maximise packing efficiency on your PCB.
Features & Benefits
• Through-hole mounting style for ease of installation on a PCB
• MTBF of 924,000 hours at +25°C for long-lasting performance
• Efficiency of 58 to 60% for minimal power losses
• Isolated input and output for improved electrical safety
• MTBF of 924,000 hours at +25°C for long-lasting performance
• Efficiency of 58 to 60% for minimal power losses
• Isolated input and output for improved electrical safety
Applications
• Medical technology
• Computing equipment
• Domestic appliances
• Electronics assembly
• Computing equipment
• Domestic appliances
• Electronics assembly
How accurate is the output of this DC-DC converter?
A built-in linear regulator means this DC-DC converter maintains its output to an accuracy of ±1%, ensuring precise results.
Specifications
Attribute | Value |
---|---|
Output Voltage | 5V dc |
Input Voltage Range | 22.8 → 25.2 V dc |
Power Rating | 1W |
Input Voltage Nominal | 24 V dc |
Output Current | 200mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 1kV dc |
Width | 7.05mm |
Depth | 10.2mm |
Length | 19.65mm |
Series | RY |
Load Regulation | ±1% |
Minimum Temperature | -40°C |
Maximum Temperature | +70°C |
Efficiency | 60% |
