MPN

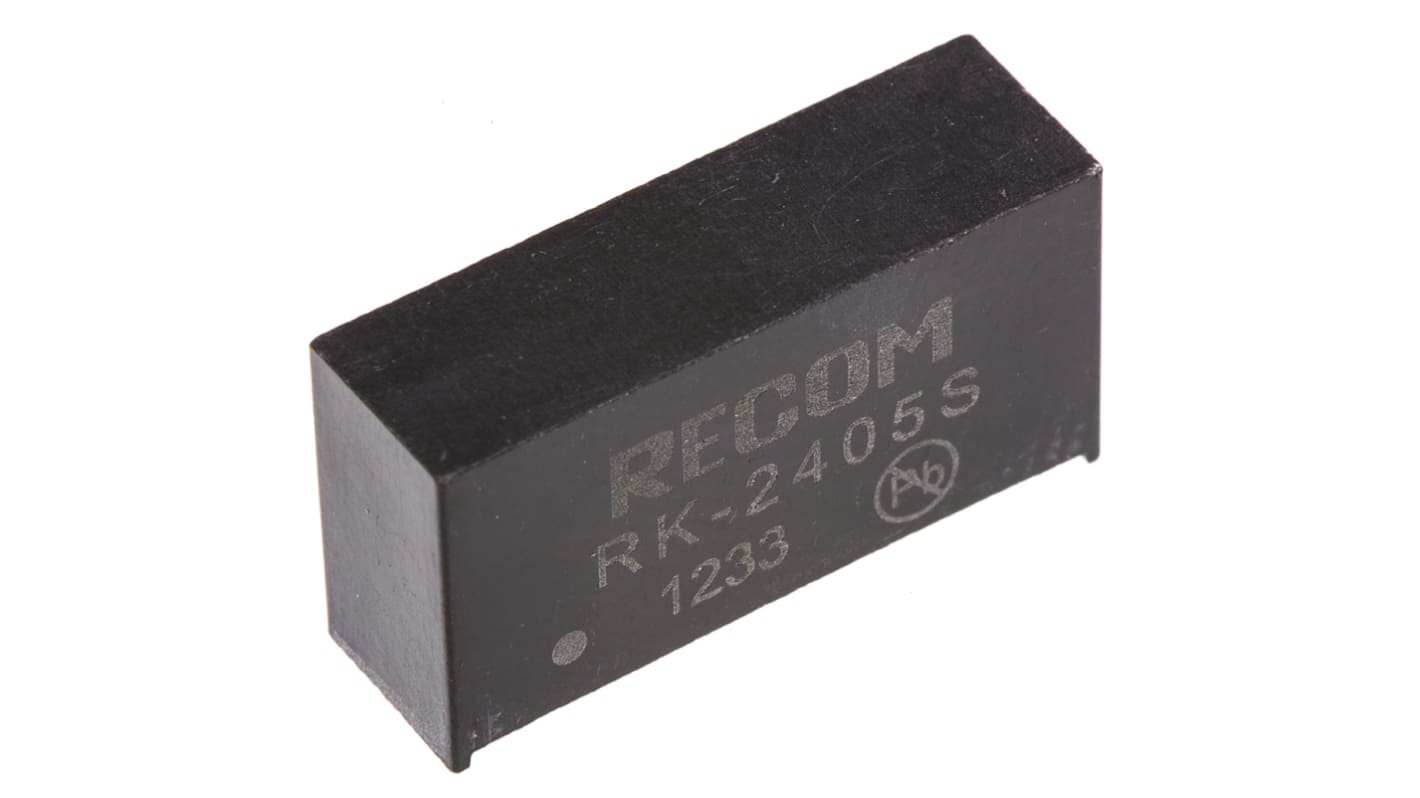

Recom RK DC/DC Converter, 5V dc/ 200 mA, 24V dc Input, 21.6V Input 1 W, Through Hole, 90 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 166-8836
Mfr. Part No.:: RK-2405S
Brand:: Recom

Recom RK DC/DC Converter, 5V dc/ 200 mA, 24V dc Input, 21.6V Input 1 W, Through Hole, 90 °C Max Temp -40 °C Min Temp,

Bulk discount available

View bulk pricing options

Subtotal (1 tube of 25 units)*

£190.61

(exc. VAT)

£228.73

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 04 March 2027

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£190.61	£7.624
5 - 9	£184.89	£7.396
10 - 24	£179.17	£7.167
25 - 49	£173.45	£6.938
50 +	£167.73	£6.709

*price indicative

RS Stock No.:: 166-8836
Mfr. Part No.:: RK-2405S
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage 1	5V dc
	Product Type	DC/DC Converter
	Maximum Input Voltage	24V dc
	Minimum Input Voltage	21.6V
	Output Current 1	200mA
	Mount Type	Through Hole
	MTBF	1012000h
	Number of Outputs	1
	Number of Pins	7
	Isolation Voltage	3kV dc
	Maximum Output Power	1W
	Package Type	SIP-7
	Series	RK
	Depth	10.2mm
	Length	19.6mm
	Standards/Approvals	No
	Minimum Operating Temperature	-40°C
	Efficiency	84%
	Maximum Operating Temperature	90°C

	Select all
	Brand Recom
	Output Voltage 1 5V dc
	Product Type DC/DC Converter
	Maximum Input Voltage 24V dc
	Minimum Input Voltage 21.6V
	Output Current 1 200mA
	Mount Type Through Hole
	MTBF 1012000h
	Number of Outputs 1
	Number of Pins 7
	Isolation Voltage 3kV dc
	Maximum Output Power 1W
	Package Type SIP-7
	Series RK
	Depth 10.2mm
	Length 19.6mm
	Standards/Approvals No
	Minimum Operating Temperature -40°C
	Efficiency 84%
	Maximum Operating Temperature 90°C

Datasheet

COO (Country of Origin):: TW

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RK Series

3kVdc isolation

Industry standard pin-out

UL94V-0 package material

78% efficiency

SIP7 package

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-01
