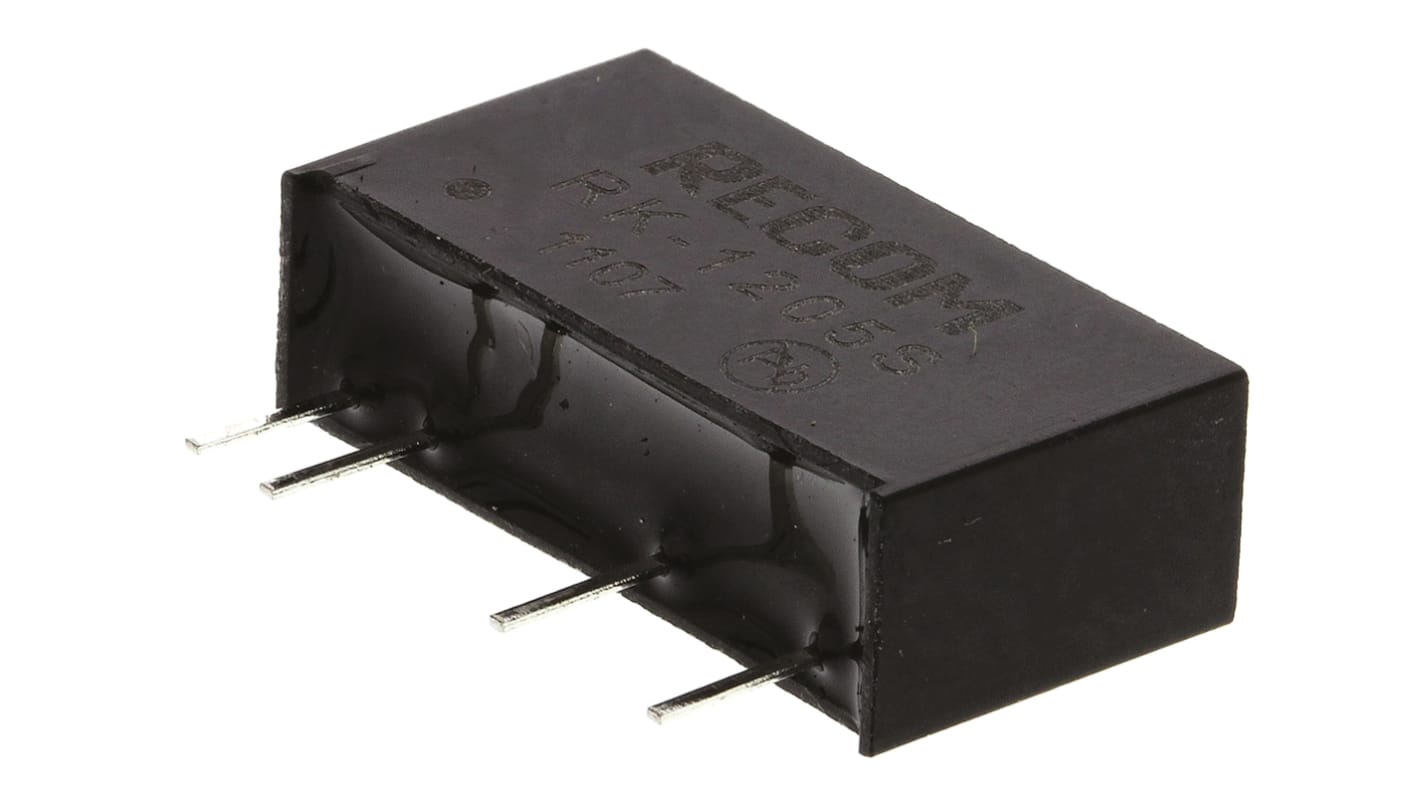

Recom RK DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

RS Stock No.:: 166-9122
Mfr. Part No.:: RK-1205S
Brand:: Recom

Recom RK DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C

Available to back order for despatch 07/11/2024

Price 1 Tube of 25

£166.93

(exc. VAT)

£200.32

(inc. VAT)

Tube(s)	Per Tube	Per unit*
1 - 4	£166.93	£6.677
5 - 9	£161.93	£6.477
10 - 24	£156.92	£6.277
25 - 49	£151.91	£6.076
50 +	£146.90	£5.876

*price indicative

RS Stock No.:: 166-9122
Mfr. Part No.:: RK-1205S
Brand:: Recom

Technical Reference

Datasheet

Legislation and Compliance

COO (Country of Origin):: TW

Product Details

Recom 1W SIP Single Output Unregulated Isolated DC-DC Converter - RK Series

3kVdc isolation
Industry standard pin-out
UL94V-0 package material
78% efficiency
SIP7 package

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-01

Specifications

Attribute	Value
Output Voltage	5V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	200mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Package	SIP
Isolation Voltage	3kV dc
Depth	10.2mm
Length	19.6mm
Series	RK
Minimum Temperature	-40°C
Maximum Temperature	+85°C
