Recom RK DC-DC Converter, 12V dc/ 84mA Output, 21.6 → 26.4 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
- RS Stock No.:
- 162-2753
- Mfr. Part No.:
- RK-2412S/H6
- Brand:
- Recom
Available to back order for despatch 12/08/2024
Added
Price 1 Tube of 25
£212.00
(exc. VAT)
£254.40
(inc. VAT)
| Tube(s) | Per Tube | Per unit* |
| 1 - 4 | £212.00 | £8.48 |
| 5 - 9 | £205.64 | £8.226 |
| 10 - 24 | £199.28 | £7.971 |
| 25 - 49 | £192.92 | £7.717 |
| 50 + | £186.56 | £7.462 |
| *price indicative | ||
- RS Stock No.:
- 162-2753
- Mfr. Part No.:
- RK-2412S/H6
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

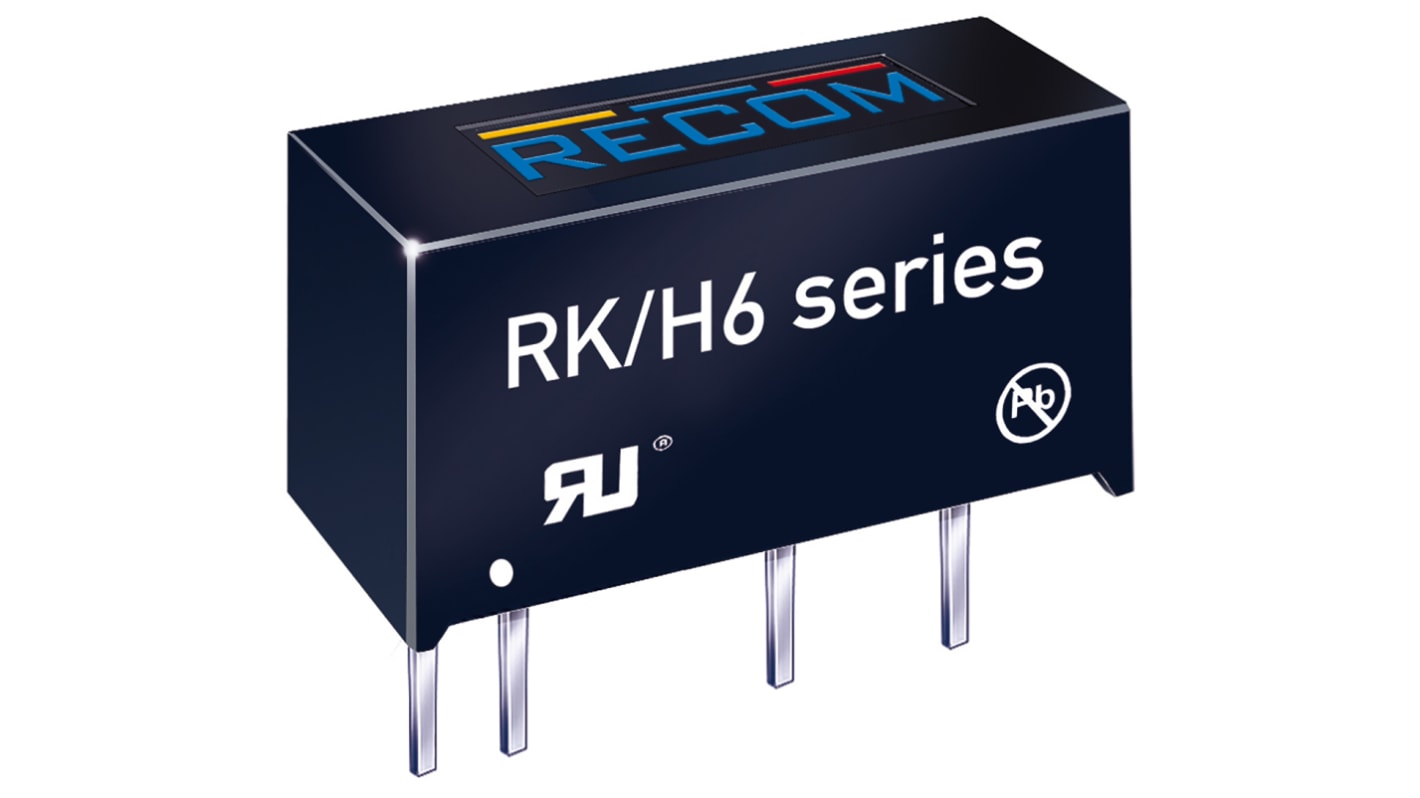

Recom 1W SIP7 Single/Dual Output Unregulated DC-DC Converters - RK/H6 and RH/H6 Series
The RK/H6 and RH/H6 series 1 W DC-DC converters feature high 6.4 kV dc isolation. They also feature an extended
operating temperature range up to +90°C without derating, yet are lower cost than standard high isolation converters.
They are suitable for demanding industrial and high isolation test and measurement applications.
operating temperature range up to +90°C without derating, yet are lower cost than standard high isolation converters.
They are suitable for demanding industrial and high isolation test and measurement applications.
Features & Benefits
High 6.4 kV dc isolation
Wide operating temperature range from -40°C to +90°C without derating
High capacitive load capability
Continuous short circuit protection
Built-in EN50022 Class A filter
Efficiency up to 80%
Wide operating temperature range from -40°C to +90°C without derating
High capacitive load capability
Continuous short circuit protection
Built-in EN50022 Class A filter
Efficiency up to 80%
Approvals
IEC60950-1
UL60950-1
UL60950-1
Specifications
Attribute | Value |
|---|---|
| Output Voltage | 12V dc |
| Input Voltage Range | 21.6 → 26.4 V dc |
| Power Rating | 1W |
| Input Voltage Nominal | 24 V dc |
| Output Current | 84mA |
| Mounting Type | Through Hole |
| Isolated | Yes |
| Number of Outputs | 1 |
| Output Voltage Adjustment Range | ±5% |
| Package | SIP 7 |
| Isolation Voltage | 4kV dc |
| Depth | 10.2mm |
| Length | 19.65mm |
| Width | 7.05mm |
| Series | RK |
| Load Regulation | 0.1 |
| Standards Met | A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950 |
| Efficiency | 77 → 79% |
| Maximum Temperature | +90°C |
| Minimum Temperature | -40°C |
