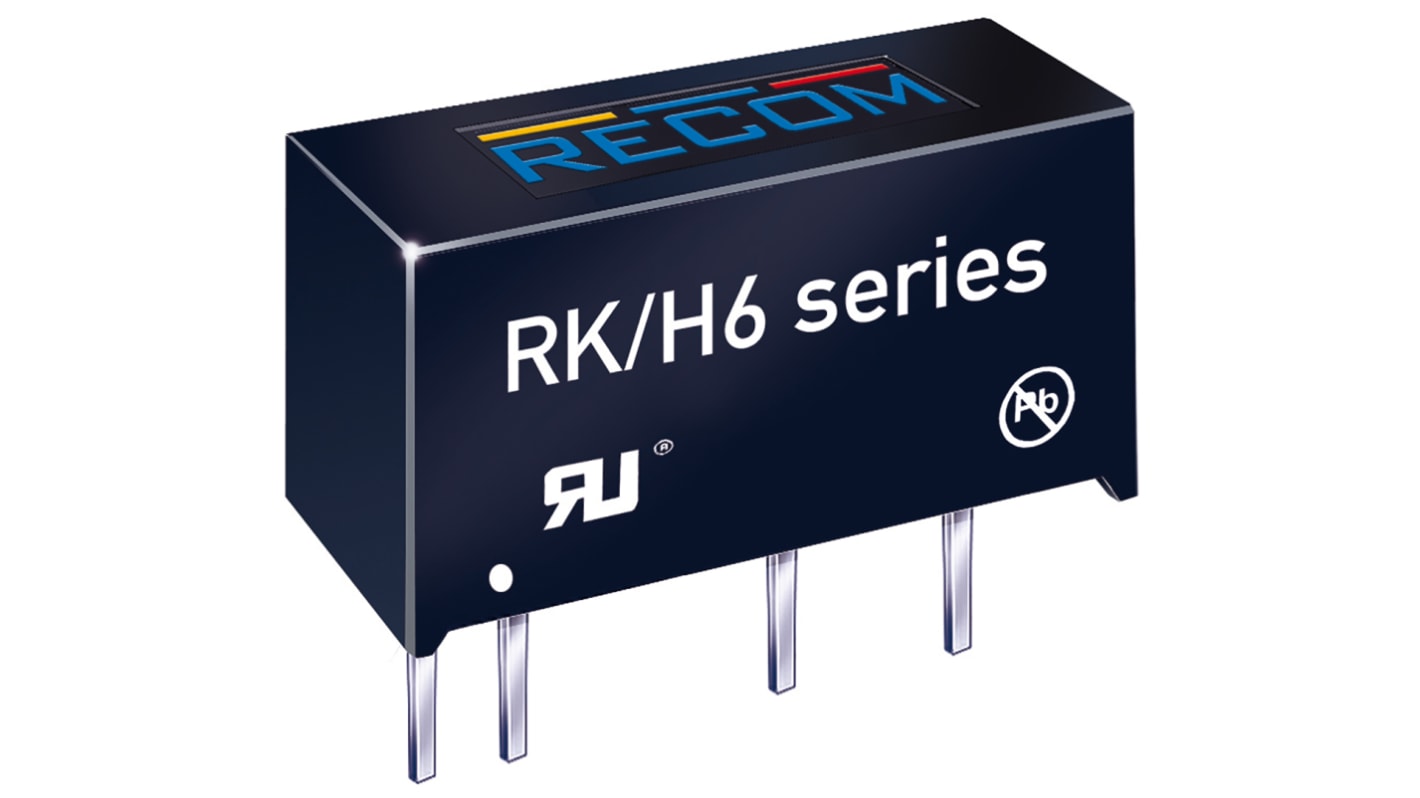

Recom RK DC-DC Converter, 15V dc/ 66mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

RS Stock No.:: 166-6599
Mfr. Part No.:: RK-1215S/H6
Brand:: Recom

Recom RK DC-DC Converter, 15V dc/ 66mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C

Bulk discount available

Price 1 Tube of 25**

£191.58

(exc. VAT)

£229.90

(inc. VAT)

Available to back order for despatch 21/04/2025*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over £50.00

Tube(s)	Per Tube	Per unit**
1 - 4	£191.58	£7.663
5 - 9	£185.83	£7.433
10 - 24	£180.08	£7.203
25 - 49	£174.34	£6.974
50 +	£168.59	£6.744

**price indicative

RS Stock No.:: 166-6599
Mfr. Part No.:: RK-1215S/H6
Brand:: Recom

Datasheet

Attribute	Value
Output Voltage	15V dc
Input Voltage Range	10.8 → 13.2 V dc
Power Rating	1W
Input Voltage Nominal	12 V dc
Output Current	66mA
Mounting Type	Through Hole
Isolated	Yes
Number of Outputs	1
Output Voltage Adjustment Range	±5%
Package	SIP 7
Isolation Voltage	4kV dc
Length	19.65mm
Depth	10.2mm
Width	7.05mm
Series	RK
Load Regulation	0.1
Efficiency	77 → 80%
Standards Met	A12:2011, E-358085, EN 60950-1, EN 60950-1:2006, IEC/EN 60601-1 Certified, IEC/EN 60601-1: 2006, UL 60950-1, UL 94 V-0, UL60950
Maximum Temperature	+90°C
Minimum Temperature	-40°C

Recom RK DC-DC Converter, 15V dc/ 66mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +90°C Max Temp -40°C
