Recom RY DC-DC Converter, 12V dc/ 84mA Output, 4.75 → 5.25 V dc Input, 1W, Through Hole, +70°C Max Temp -40°C
- RS Stock No.:
- 473-5356
- Mfr. Part No.:
- RY-0512S
- Brand:
- Recom
Sorry, we couldn't check our stock levels right now. Please try refreshing the page.
Not available for guaranteed pre 9am/10am delivery
Added
Price Each
£8.30
(exc. VAT)
£9.96
(inc. VAT)
Units | Per unit |
1 - 4 | £8.30 |
5 - 9 | £8.05 |
10 - 24 | £7.80 |
25 - 49 | £7.55 |
50 + | £7.30 |
- RS Stock No.:
- 473-5356
- Mfr. Part No.:
- RY-0512S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details

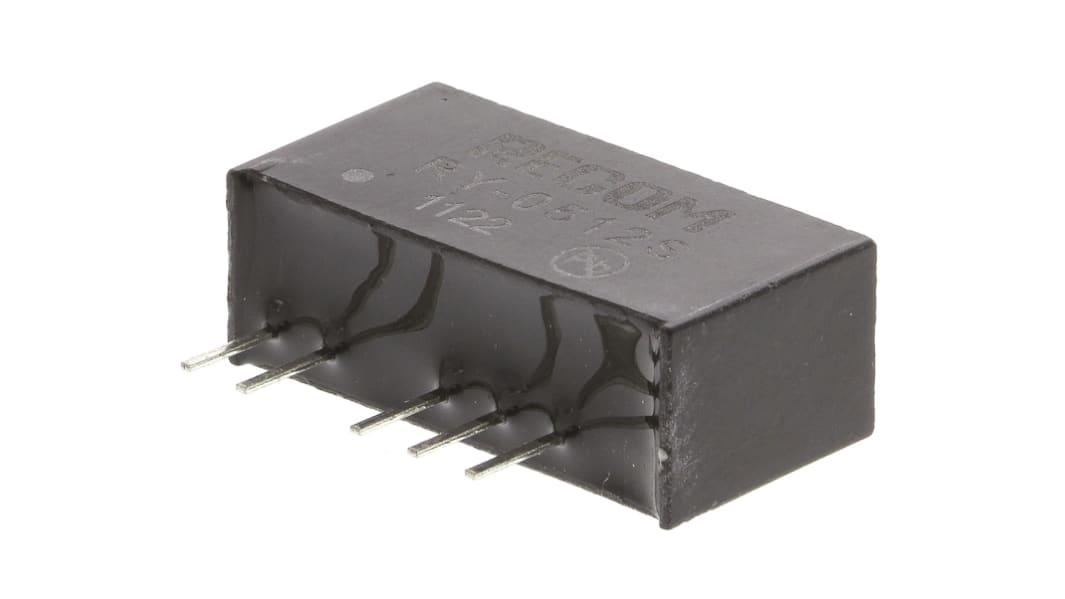

RECOM DC-DC Converter, 1kV DC Isolation, 66% Efficiency - RY Series - RY-0512S
Step up to a powerful energy solution with this DC-DC converter from RECOM. It's designed to take an input voltage between 4.75 and 5.25V DC and increase it to an output of 12V DC to power a compatible appliance. The device is isolated, providing an additional layer of safety for personnel and equipment. Thanks to through-hole mounting and a depth of just 10.2mm, you can easily add it to a busy PCB.
Features & Benefits
• 1W output suitable for low-power applications
• Fully encapsulated design for protection from environmental contaminants
• Broad operating temperature range of -40°C to +70°C suits challenging conditions
• Constant voltage with load regulation of ±1%
• Output current of 84mA provides reliable power to your components
• Fully encapsulated design for protection from environmental contaminants
• Broad operating temperature range of -40°C to +70°C suits challenging conditions
• Constant voltage with load regulation of ±1%
• Output current of 84mA provides reliable power to your components
Applications
• Automotive manufacturing
• Industrial automation equipment
• Lighting systems
• Industrial automation equipment
• Lighting systems
How big is this DC-DC converter?
It has compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (D), which is ideal for PCBs where space is at a premium.
Can I control the converter remotely?
Yes, it has a control pin that enables you to turn it on and off remotely.
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 4.75 → 5.25 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | 84mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP |
Isolation Voltage | 1kV dc |
Depth | 10.2mm |
Length | 19.65mm |
Width | 7.05mm |
Series | RY |
Load Regulation | ±1% |
Standards Met | EN 60950-1 |
Minimum Temperature | -40°C |
Efficiency | 66% |
Maximum Temperature | +70°C |
