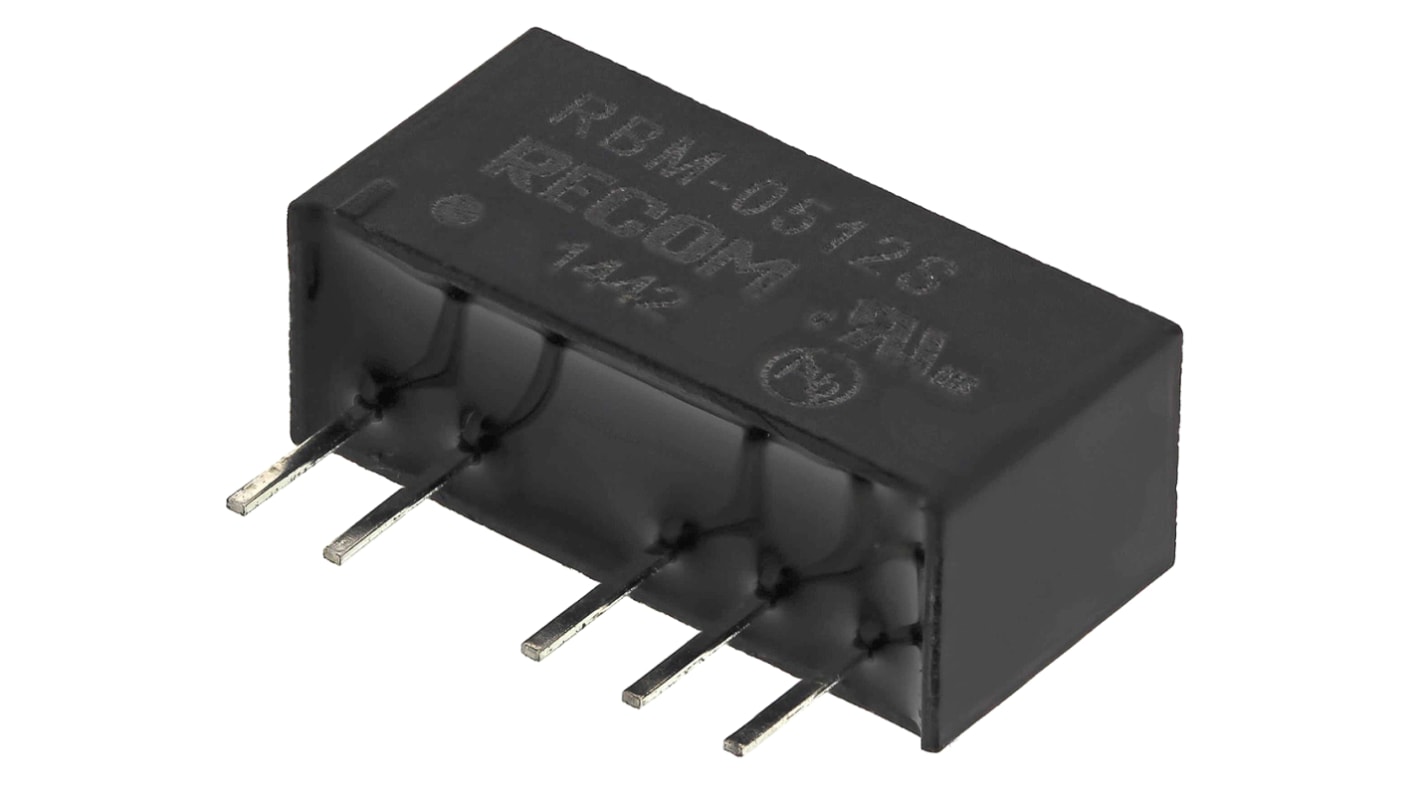

Recom RBM DC/DC Converter, 12V dc/ 84 mA, 5V dc Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

View all DC-DC Converters
Bulk discount available

Subtotal (1 tube of 30 units)*

£204.54

(exc. VAT)

£245.45

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Tube(s)
Per Tube
Per unit*
1 - 4£204.54£6.818
5 - 9£198.40£6.613
10 - 24£192.26£6.409
25 - 49£186.13£6.204
50 +£179.99£6.00

*price indicative

RS Stock No.:
166-8914
Mfr. Part No.:
RBM-0512S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

12V dc

Product Type

DC/DC Converter

Maximum Input Voltage

5V dc

Minimum Input Voltage

4.5V

Output Current 1

84mA

Mount Type

Through Hole

MTBF

19400000h

Number of Outputs

1

Isolation Voltage

3kV dc

Number of Pins

6

Package Type

SIP Micro

Maximum Output Power

1W

Series

RBM

Length

16.55mm

Depth

7.7mm

Standards/Approvals

No

Efficiency

80%

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RBM Series


Micro size SIP6 package

3kVdc isolation

UL 94V-0 package material

Industry standard pinout

Efficiency at full load up to 80%

Full rated power can be taken from one output

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-1
