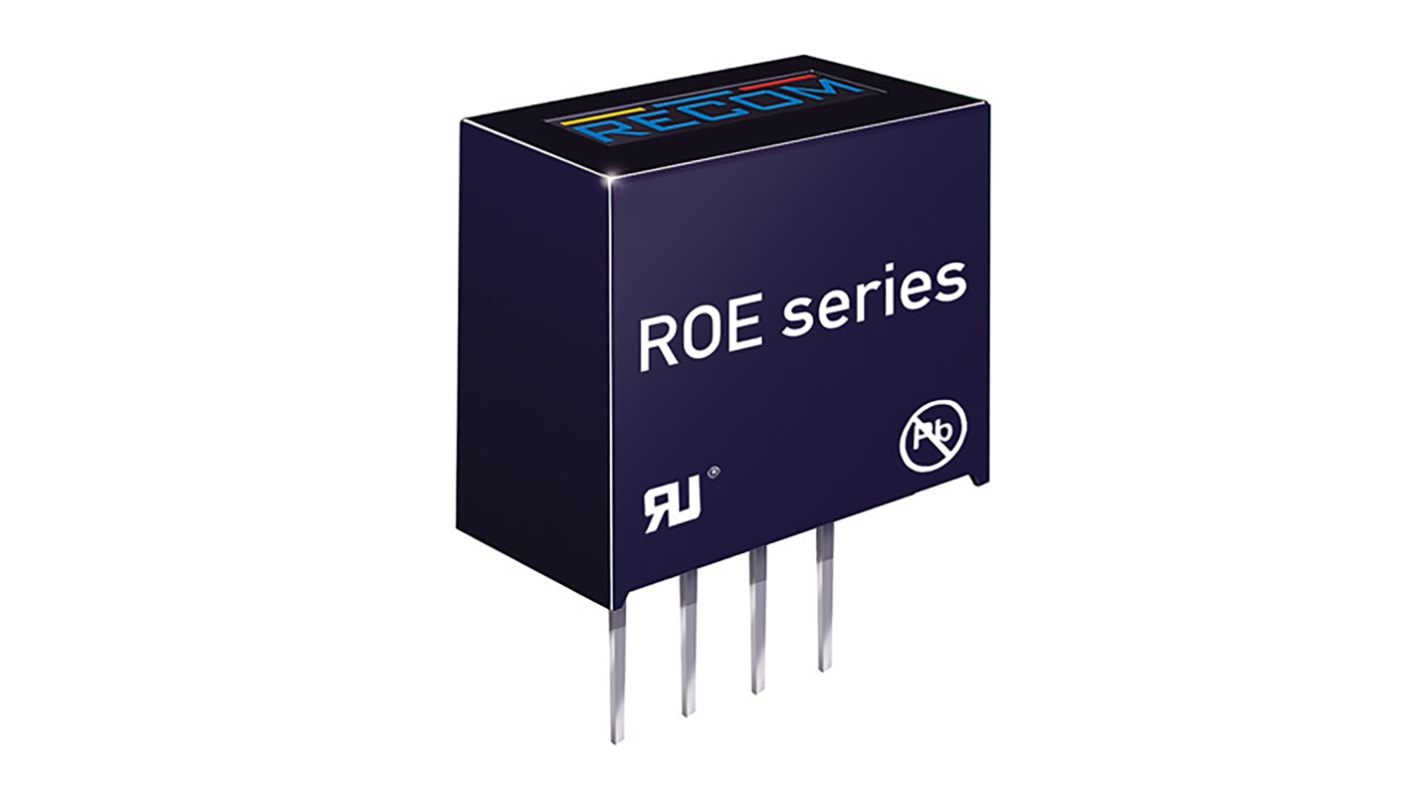

Recom ROE DC-DC Converter, 12V dc/ 84mA Output, 4.5 → 5.5 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C Min
- RS Stock No.:
- 139-2796
- Mfr. Part No.:
- ROE-0512S
- Brand:
- Recom
Available to back order for despatch when stock is available
Price 1 Tube of 42
£114.20
(exc. VAT)
£137.04
(inc. VAT)
Tube(s) | Per Tube | Per unit* |
---|---|---|
1 - 4 | £114.20 | £2.719 |
5 - 9 | £110.77 | £2.637 |
10 - 24 | £107.35 | £2.556 |
25 - 49 | £103.92 | £2.474 |
50 + | £100.50 | £2.393 |
*price indicative
- RS Stock No.:
- 139-2796
- Mfr. Part No.:
- ROE-0512S
- Brand:
- Recom
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- TW
Product Details
Recom ROE Series 1W DC-DC Converter
The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty
without derating. 3 year warranty
Features and Benefits
• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
RECOM DC-DC Converter, 470mF Maximum Capacitive Load, 80% Efficiency - ROE Series - ROE-0512S
Choose this DC-DC converter from RECOM to step up and deliver a steady power supply to your PCB-linked components. It boosts and smooths 5V input voltages to a noiseless 12V output that's just what devices such as battery chargers need. Thanks to 1kV DC isolation, it creates a barrier between the input and the output, ensuring that sudden power surges don't pass through and cause an upset. As it's housed in a non-conductive plastic case, you don't have to worry about any shocking surprises when installing or operating this converter.
Features & Benefits
• Compact dimensions of 11.5 (L) x 6 (W) x 10mm (H) for space-efficient installation in confined setups
• Stops burning in 10 seconds or less in the event of a fire, making it a safe choice in sensitive settings
• 84mA output current for use in low-power applications
• Stops burning in 10 seconds or less in the event of a fire, making it a safe choice in sensitive settings
• 84mA output current for use in low-power applications
Applications
• Electrical workshops
• Mobile devices
• Material handling equipment
• Mobile devices
• Material handling equipment
What's the temperature tolerance of this DC-DC converter?
This piece of kit functions optimally in a temperature range between -40°C and +85°C, so it's a versatile choice for use in harsh conditions.
Specifications
Attribute | Value |
---|---|
Output Voltage | 12V dc |
Input Voltage Range | 4.5 → 5.5 V dc |
Power Rating | 1W |
Input Voltage Nominal | 5 V dc |
Output Current | 84mA |
Mounting Type | Through Hole |
Isolated | Yes |
Number of Outputs | 1 |
Package | SIP 4 |
Isolation Voltage | 1kV dc |
Length | 11.5mm |
Depth | 10mm |
Width | 6mm |
Series | ROE |
Load Regulation | 0.15 |
Standards Met | CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition |
Efficiency | 80% |
Minimum Temperature | -40°C |
Maximum Temperature | +85°C |
