Recom ROE DC/DC Converter, 15V dc/ 66 mA, 5.5V dc Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp SIP-4

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£3.20

(exc. VAT)

£3.84

(inc. VAT)

Add to Basket
Select or type quantity
Stock information currently inaccessible - Please check back later

Units
Per unit
1 - 4£3.20
5 - 9£3.11
10 - 24£3.02
25 - 49£2.92
50 +£2.82

*price indicative

RS Stock No.:
139-2935
Mfr. Part No.:
ROE-0515S
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

15V dc

Product Type

DC/DC Converter

Maximum Input Voltage

5.5V dc

Output Current 1

66mA

Mount Type

Through Hole

Number of Outputs

1

MTBF

8674000h

Isolation Voltage

1kV dc

Package Type

SIP-4

Maximum Output Power

1W

Length

11.5mm

Width

6mm

Standards/Approvals

No

Series

ROE

Depth

10mm

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

80%

RECOM DC-DC Converter, 80% Efficiency, Non-Conductive Plastic Housing - ROE Series - ROE-0515S


For safe and steady power distribution to components on your PCB, choose this RECOM DC-DC converter. It steps up voltage inputs between 4.5 and 5.5V DC to a stable output of 15V DC, taking the responsibility for voltage stabilisation off your hands. The device has an isolation voltage of 1kV DC between the input and the output, so sudden voltage spikes won't catch it, or you, by surprise. Thanks to Compact dimensions of 11.5 (L) x 6 (W) x 10mm (H), this is a good choice when you need to maximise space on your PCB. Its Durable plastic housing is resistant to impact and heat, so it won't crack under pressure.

• Through-hole mounting for a secure, vibration-proof connection

• Power rating of 1W for use in light-duty applications

• Mean time between failures of 20,140,000 hours at +25°C for long-term performance

• Broad operating temperature range between -40°C and +85°C for use in demanding settings

Applications


• Telecommunication industry

• Digital cameras

• Medical equipment

How efficient is this converter?


This converter has a typical efficiency of 80%, so it gets on with the job without wasting much energy.

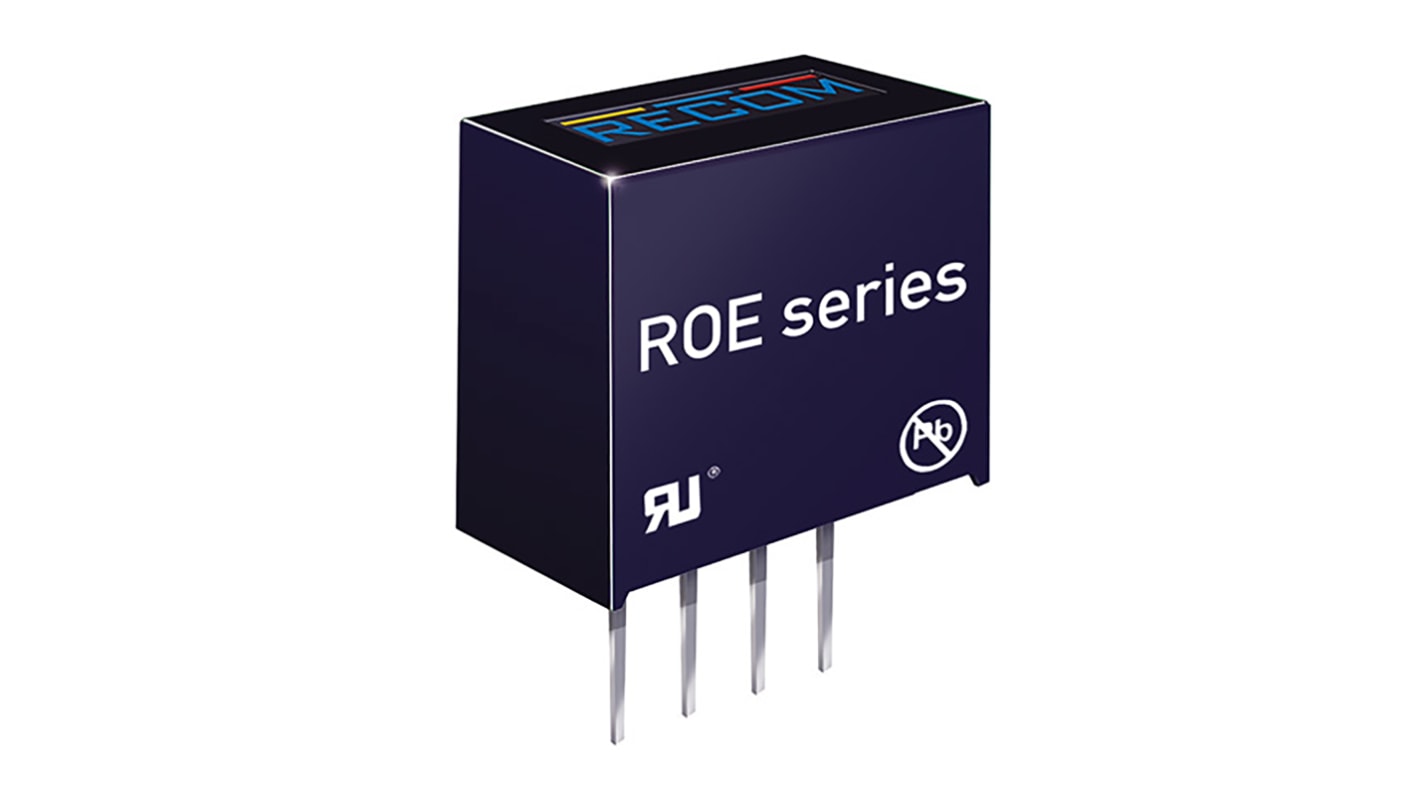

Recom ROE Series 1W DC-DC Converter


The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C

without derating. 3 year warranty

Features and Benefits


• Low Cost 1W Converter

• Industry Standard Pinout

• SIP4 Package

• 1kVDC Isolation

• Efficiency up to 80%

• Wide Operating Temperature Range -40°C to +85°C

• UL60950-1 Certified
