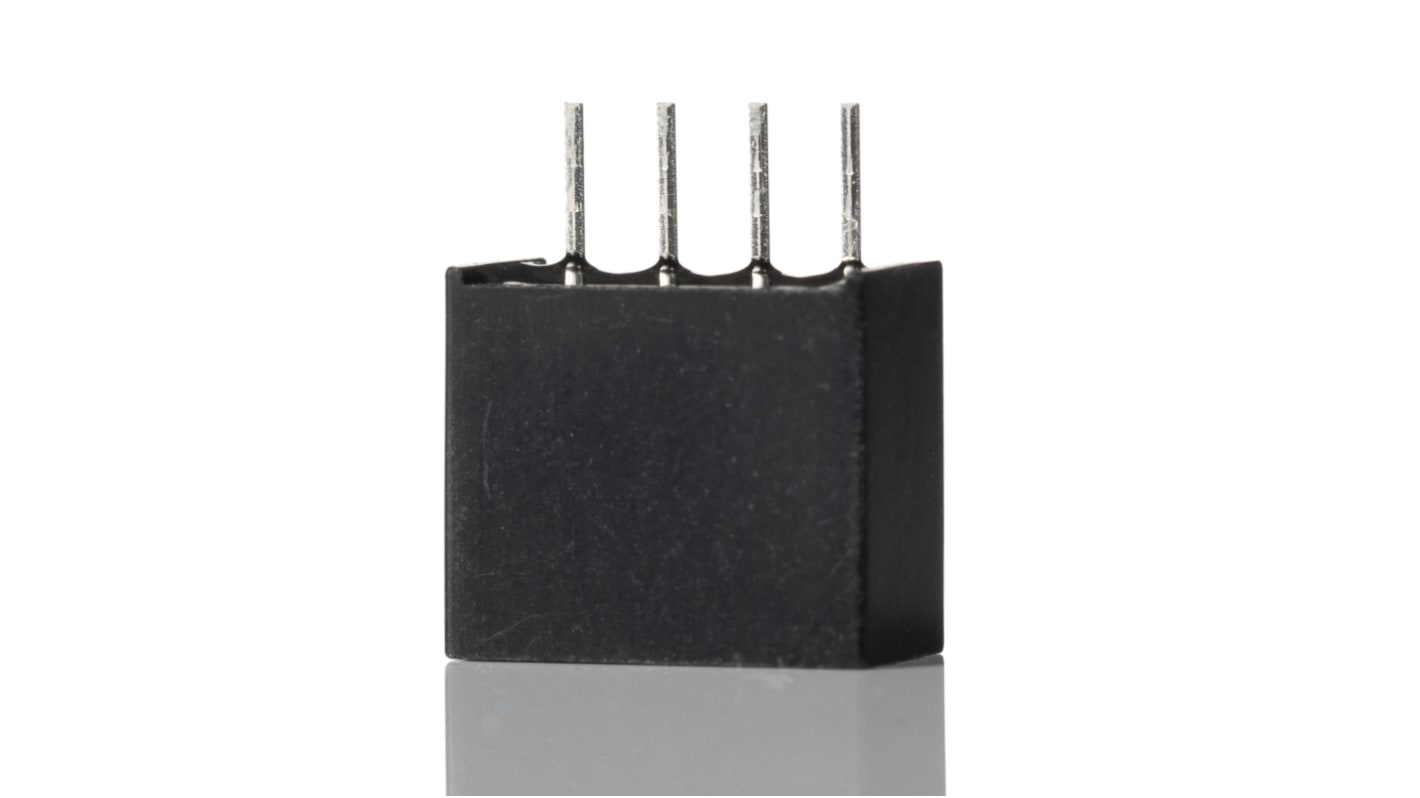

Recom ROE DC-DC Converter, 5V dc/ 200mA Output, 10.8 → 13.2 V dc Input, 1W, Through Hole, +85°C Max Temp -40°C
- RS Stock No.:
- 139-2944
- Mfr. Part No.:
- ROE-1205S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£3.17
(exc. VAT)
£3.80
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 5 unit(s) ready to ship
- Plus 49 unit(s) shipping from 29 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 4 | £3.17 |
5 - 9 | £3.08 |
10 - 24 | £2.99 |
25 - 49 | £2.89 |
50 + | £2.79 |
*price indicative
- RS Stock No.:
- 139-2944
- Mfr. Part No.:
- ROE-1205S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Recom | |
Output Voltage | 5V dc | |
Input Voltage Range | 10.8 → 13.2 V dc | |
Power Rating | 1W | |
Input Voltage Nominal | 12 V dc | |
Output Current | 200mA | |
Mounting Type | Through Hole | |
Isolated | Yes | |
Number of Outputs | 1 | |
Package | SIP 4 | |
Isolation Voltage | 1kV dc | |
Length | 11.5mm | |
Depth | 10mm | |
Width | 6mm | |
Series | ROE | |
Load Regulation | 0.15 | |
Minimum Temperature | -40°C | |
Standards Met | CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | |
Efficiency | 80% | |
Maximum Temperature | +85°C | |
Select all | ||
---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 10.8 → 13.2 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 4 | ||
Isolation Voltage 1kV dc | ||
Length 11.5mm | ||
Depth 10mm | ||
Width 6mm | ||
Series ROE | ||
Load Regulation 0.15 | ||
Minimum Temperature -40°C | ||
Standards Met CSA C22.2 No. 60950-1-07, cULus E358085 Recognised, EMI EN 55022 Class A, EMI EN 55022 Class B, UL 60950-1 2nd Edition | ||
Efficiency 80% | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- TW
Recom ROE Series 1W DC-DC Converter
The ROE DC-DC converters are typically used in general purpose power isolation and voltage matching applications, and feature a full industrial operating temperature range of -40°C to +85°C
without derating. 3 year warranty
without derating. 3 year warranty
Features and Benefits
• Low Cost 1W Converter
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
• Industry Standard Pinout
• SIP4 Package
• 1kVDC Isolation
• Efficiency up to 80%
• Wide Operating Temperature Range -40°C to +85°C
• UL60950-1 Certified
RECOM DC-DC Converter, 80% Efficiency, 1kV DC Isolation Voltage - ROE Series - ROE-1205S
Avoid the risk of over-powering your electronic devices with this DC-DC converter from RECOM. It converts a 12V DC input into a smooth 5V DC output, so you can be sure your power supply's constant. When operating at an ambient temperature of approximately +25°C, the unit has a mean time between failures of over 20 million hours, so there's no doubting its reliability. An isolation voltage of 1kV DC helps to put a stop to power spikes causing damage to your equipment.
Features & Benefits
• Industry-standard pin-outs reduce the chance of getting your wires crossed
• Vibration-resistant for safe use with heavy-duty applications
• Broad operating temperature range between -40°C and +85°C to withstand hazardous industrial settings
• Through-hole mounting makes installation quick and simple
• Power output of 1W for energy efficiency
• Vibration-resistant for safe use with heavy-duty applications
• Broad operating temperature range between -40°C and +85°C to withstand hazardous industrial settings
• Through-hole mounting makes installation quick and simple
• Power output of 1W for energy efficiency
Applications
• Data centres
• Automotive production
• Aerospace industry
• Pharmaceutical manufacturing
• Automotive production
• Aerospace industry
• Pharmaceutical manufacturing
What material is this converter's housing made from?
The component has a plastic housing with non-conductive properties to reduce the risk of electric shocks. Its casing is also flame-retardant, so it won't contribute to the spread of a workplace fire.
