MPN

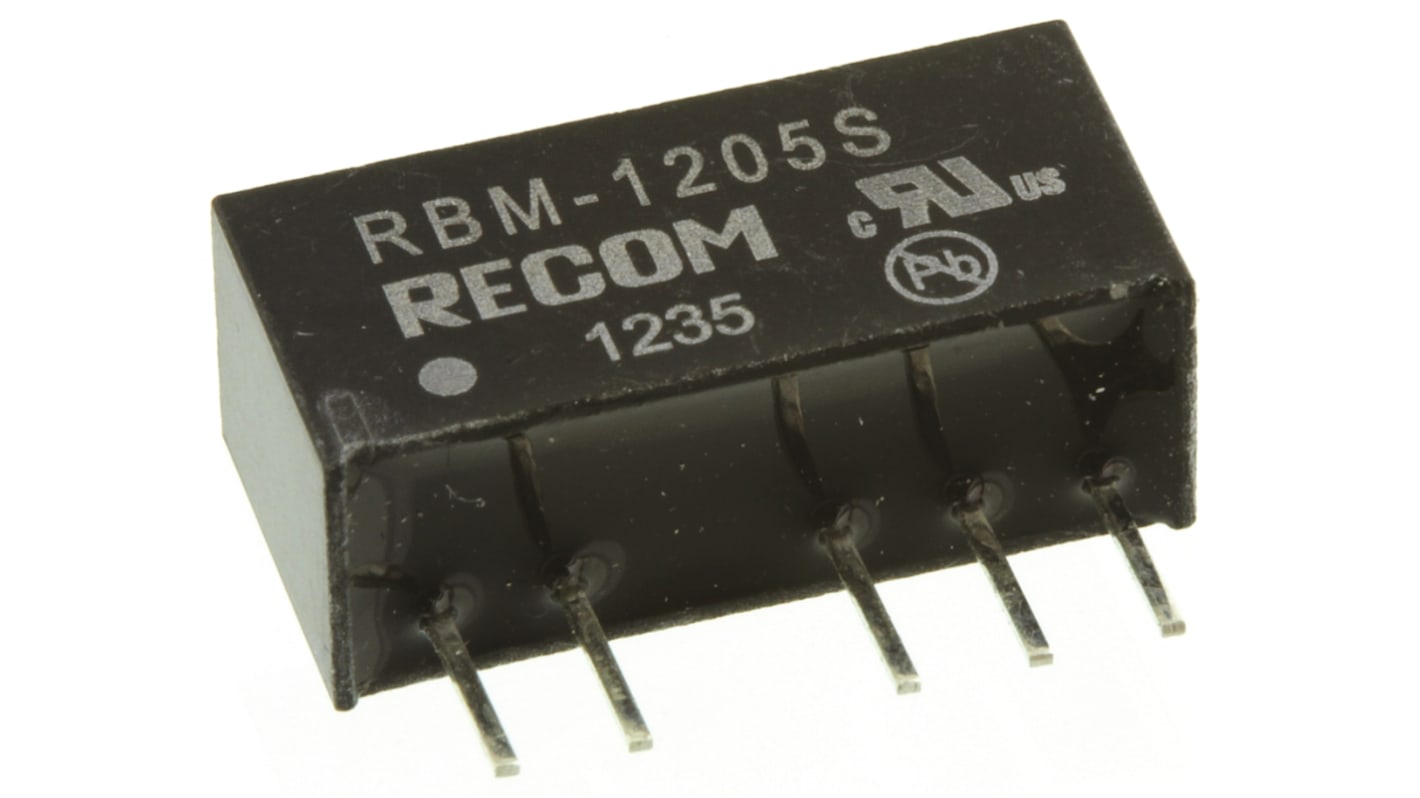

Recom RBM DC/DC Converter, 5V dc/ 200 mA, 5.5V Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

RS Stock No.:: 166-8917
Mfr. Part No.:: RBM-1205S
Brand:: Recom

Recom RBM DC/DC Converter, 5V dc/ 200 mA, 5.5V Input, 4.5V Input 1 W, Through Hole, 85 °C Max Temp -40 °C Min Temp,

Bulk discount available

View bulk pricing options

Subtotal (1 tube of 30 units)*

£197.52

(exc. VAT)

£237.02

(inc. VAT)

FREE delivery for orders over £60.00

Temporarily out of stock

Shipping from 21 October 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Tube(s)	Per Tube	Per unit*
1 - 4	£197.52	£6.584
5 - 9	£191.59	£6.386
10 - 24	£185.66	£6.189
25 - 49	£179.74	£5.991
50 +	£173.81	£5.794

*price indicative

RS Stock No.:: 166-8917
Mfr. Part No.:: RBM-1205S
Brand:: Recom

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Recom
	Output Voltage 1	5V dc
	Product Type	DC/DC Converter
	Minimum Input Voltage	4.5V
	Maximum Input Voltage	5.5V
	Output Current 1	200mA
	Mount Type	Through Hole
	MTBF	195000h
	Number of Outputs	1
	Output Voltage Adjustment Range	4.5/5.5 V
	Isolation Voltage	3kV dc
	Number of Pins	6
	Maximum Output Power	1W
	Package Type	SIP
	Series	RBM
	Standards/Approvals	No
	Length	16.55mm
	Depth	7.7mm
	Efficiency	78%
	Maximum Operating Temperature	85°C
	Minimum Operating Temperature	-40°C

	Select all
	Brand Recom
	Output Voltage 1 5V dc
	Product Type DC/DC Converter
	Minimum Input Voltage 4.5V
	Maximum Input Voltage 5.5V
	Output Current 1 200mA
	Mount Type Through Hole
	MTBF 195000h
	Number of Outputs 1
	Output Voltage Adjustment Range 4.5/5.5 V
	Isolation Voltage 3kV dc
	Number of Pins 6
	Maximum Output Power 1W
	Package Type SIP
	Series RBM
	Standards/Approvals No
	Length 16.55mm
	Depth 7.7mm
	Efficiency 78%
	Maximum Operating Temperature 85°C
	Minimum Operating Temperature -40°C

Datasheet

COO (Country of Origin):: TW

Recom 1W SIP Single/Dual Output Unregulated Isolated DC-DC Converter - RBM Series

Micro size SIP6 package

3kVdc isolation

UL 94V-0 package material

Industry standard pinout

Efficiency at full load up to 80%

Full rated power can be taken from one output

Note

Operating temperature is without derating.

Standards

EN60950-1, EN60601-1
