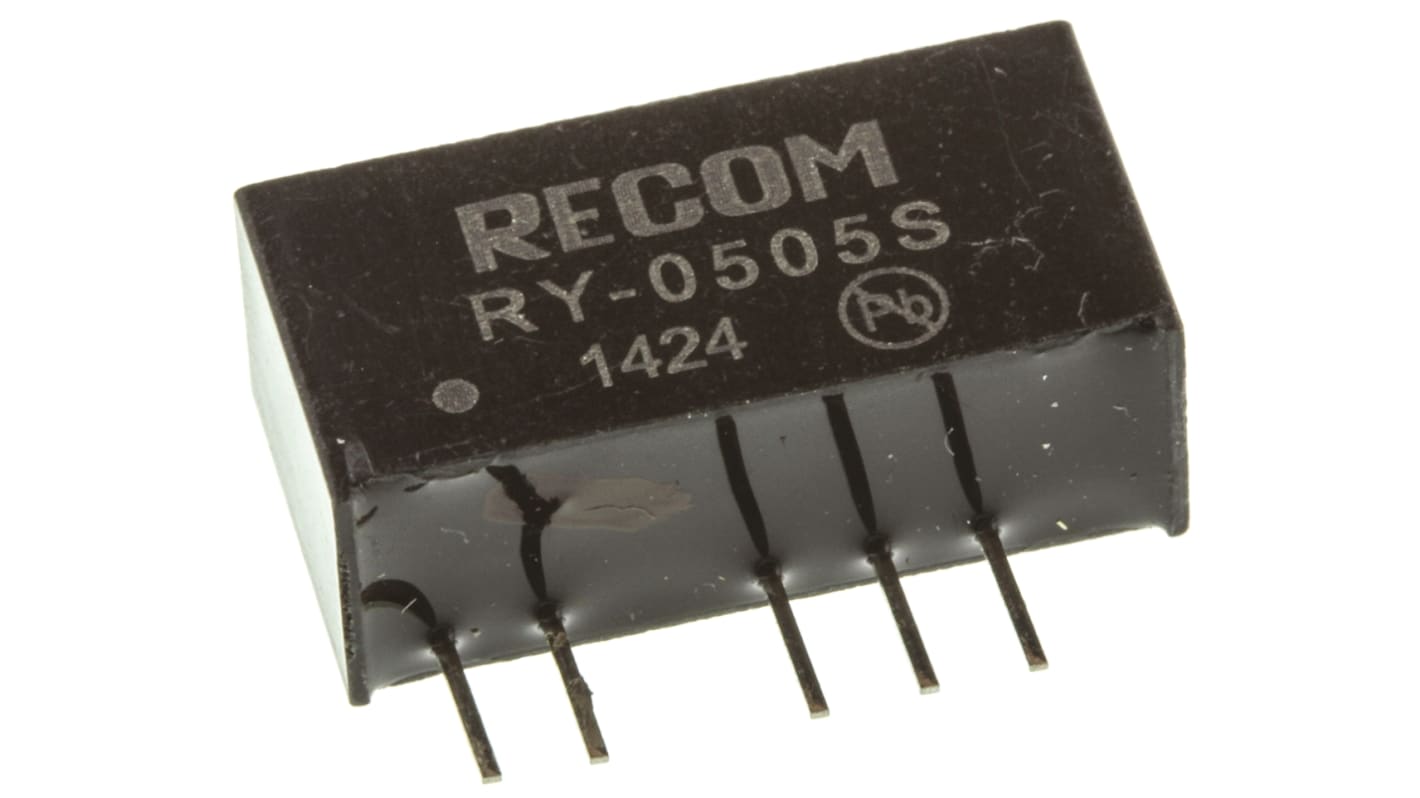

Recom RY DC/DC Converter, 5V dc/ 200 mA, 5V dc Input, 4.75V Input 1 W, Through Hole, 70 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 473-5340
- Mfr. Part No.:
- RY-0505S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
£9.06
(exc. VAT)
£10.87
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 2 unit(s) shipping from 24 August 2026
- Plus 19 unit(s) shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.06 |
| 5 - 9 | £8.77 |
| 10 - 24 | £8.51 |
| 25 - 49 | £8.24 |
| 50 + | £7.95 |
*price indicative
- RS Stock No.:
- 473-5340
- Mfr. Part No.:
- RY-0505S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Product Type | DC/DC Converter | |
| Output Voltage 1 | 5V dc | |
| Minimum Input Voltage | 4.75V | |
| Maximum Input Voltage | 5V dc | |
| Output Current 1 | 200mA | |
| Output Current 2 | 200mA | |
| Mount Type | Through Hole | |
| MTBF | 135000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 5/24 V | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 6 | |
| Package Type | SIP | |
| Maximum Output Power | 1W | |
| Length | 19.65mm | |
| Depth | 10.2mm | |
| Series | RY | |
| Width | 7.05mm | |
| Standards/Approvals | RoHS, UR | |
| Weight | 2.8g | |
| Maximum Operating Temperature | 70°C | |
| Minimum Operating Temperature | -40°C | |
| Efficiency | 70% | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Product Type DC/DC Converter | ||
Output Voltage 1 5V dc | ||
Minimum Input Voltage 4.75V | ||
Maximum Input Voltage 5V dc | ||
Output Current 1 200mA | ||
Output Current 2 200mA | ||
Mount Type Through Hole | ||
MTBF 135000h | ||
Number of Outputs 1 | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 5/24 V | ||
Isolation Voltage 1kV dc | ||
Number of Pins 6 | ||
Package Type SIP | ||
Maximum Output Power 1W | ||
Length 19.65mm | ||
Depth 10.2mm | ||
Series RY | ||
Width 7.05mm | ||
Standards/Approvals RoHS, UR | ||
Weight 2.8g | ||
Maximum Operating Temperature 70°C | ||
Minimum Operating Temperature -40°C | ||
Efficiency 70% | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, Single Output, 5V DC Output Voltage - RY Series - RY-0505S
Looking for a unit to provide not too much, not too little but just the right voltage to your equipment? Choose this DC-DC converter from RECOM. When supplied with an input voltage between 4.75 and 5.25V DC, it gives you an output voltage of 5V DC to provide steady power to your low-voltage machinery. This product has a mean time between failures of 924,000 hours at +25°C, so you can rest assured that it has the stamina for long-term performance. Through-hole mounting makes set-up a Cinch and ensures an unshakeable bond, even in high-vibration settings.
Features & Benefits
• Operates safely at temperatures between -40°C and +70°C for use in harsh industrial environments
• Line and load regulation of +1% to minimise voltage fluctuations
• Continuous short-circuit protection to safeguard your equipment against electrical damage
• Stops burning in 10 seconds or less for safety in the event of a fire
• Light weight of 2.8g won't strain your PCB
Applications
• Industrial automation
• Medical equipment
• Food and beverage industry
Is this device isolated?
Yes. This unit has an isolation voltage of 1kV DC to stop hazardous voltage spikes from damaging downstream equipment.
