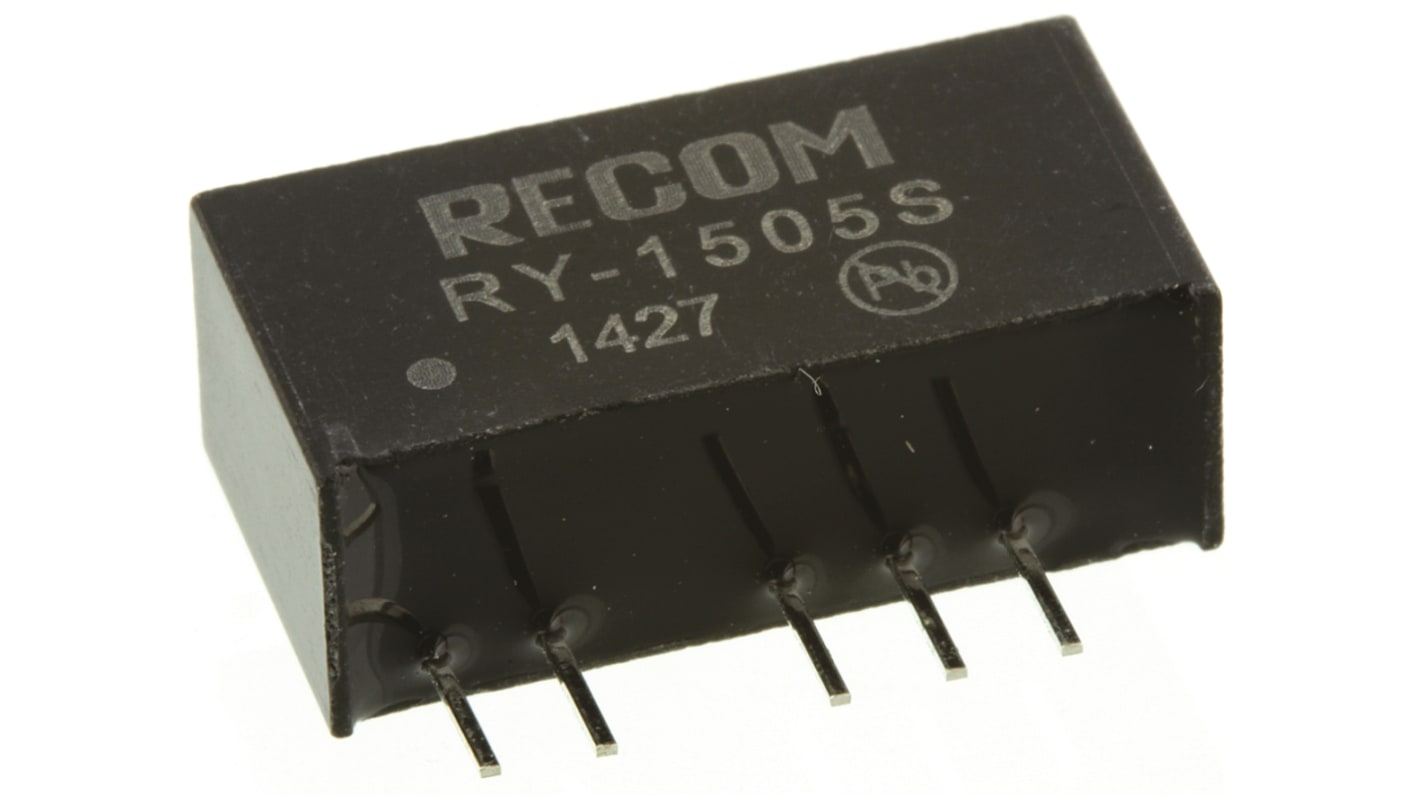

Recom RY DC-DC Converter, 5V dc/ 200mA Output, 14.25 → 15.75 V dc Input, 1W, Through Hole, +70°C Max Temp -40°C
- RS Stock No.:
- 672-7495
- Mfr. Part No.:
- RY-1505S
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£9.11
(exc. VAT)
£10.93
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | £9.11 |
| 5 - 9 | £8.83 |
| 10 - 24 | £8.56 |
| 25 - 49 | £8.29 |
| 50 + | £8.01 |
*price indicative
- RS Stock No.:
- 672-7495
- Mfr. Part No.:
- RY-1505S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 5V dc | |
| Input Voltage Range | 14.25 → 15.75 V dc | |
| Power Rating | 1W | |
| Input Voltage Nominal | 15 V dc | |
| Output Current | 200mA | |
| Mounting Type | Through Hole | |
| Isolated | Yes | |
| Number of Outputs | 1 | |
| Package | SIP 7 | |
| Isolation Voltage | 1kV dc | |
| Length | 19.65mm | |
| Width | 7.05mm | |
| Depth | 10.2mm | |
| Series | RY | |
| Maximum Temperature | +70°C | |
| Efficiency | 58 → 60% | |
| Standards Met | EN 60950-1 | |
| Minimum Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 5V dc | ||
Input Voltage Range 14.25 → 15.75 V dc | ||
Power Rating 1W | ||
Input Voltage Nominal 15 V dc | ||
Output Current 200mA | ||
Mounting Type Through Hole | ||
Isolated Yes | ||
Number of Outputs 1 | ||
Package SIP 7 | ||
Isolation Voltage 1kV dc | ||
Length 19.65mm | ||
Width 7.05mm | ||
Depth 10.2mm | ||
Series RY | ||
Maximum Temperature +70°C | ||
Efficiency 58 → 60% | ||
Standards Met EN 60950-1 | ||
Minimum Temperature -40°C | ||
- COO (Country of Origin):
- TW
RECOM DC-DC Converter, 5V DC Output Voltage, 58 to 60% Efficiency - RY Series - RY-1505S
Ensure a steady power supply to components on your PCB with this DC-DC converter from RECOM. It steps an input voltage of 14.25 to 15.75V DC down to a stable output voltage of 5V DC, so it's a reliable choice for low-power applications. As the unit has a mean time between failures of 924,000 hours at +25°C, you can rest assured it's designed for long-term performance. The housing self-extinguishes in 10 seconds or less, helping to promote safety in the event of a fire. An efficiency of 58 to 60% means it wastes little energy as heat, so it keeps its cool in demanding applications.
Features & Benefits
• Compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (D) to maximise space in your setup
• Integrated protection against short circuits to handle electrical faults without a hitch
• Integrated protection against short circuits to handle electrical faults without a hitch
Applications
• Telecommunications equipment
• Medical devices
• Electric vehicles
• Medical devices
• Electric vehicles
How do I install this unit?
It's designed for through-hole mounting on a PCB. This ensures a secure attachment that holds fast, even in vibration-prone systems.
