Recom RY DC/DC Converter, 12V dc/ 84 mA, 5V dc Input, 5V dc Input 1 W, Through Hole, 70 °C Max Temp -40 °C Min Temp,
- RS Stock No.:
- 166-9126
- Mfr. Part No.:
- RY-0512S
- Brand:
- Recom
Bulk discount available
View bulk pricing optionsSubtotal (1 tube of 25 units)*
£237.08
(exc. VAT)
£284.50
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- 1 unit(s) shipping from 16 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 - 4 | £237.08 | £9.483 |
| 5 - 9 | £229.96 | £9.198 |
| 10 - 24 | £222.85 | £8.914 |
| 25 - 49 | £215.74 | £8.63 |
| 50 + | £208.63 | £8.345 |
*price indicative
- RS Stock No.:
- 166-9126
- Mfr. Part No.:
- RY-0512S
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 12V dc | |
| Product Type | DC/DC Converter | |
| Maximum Input Voltage | 5V dc | |
| Minimum Input Voltage | 5V dc | |
| Output Current 1 | 84mA | |
| Output Current 2 | 84mA | |
| Mount Type | Through Hole | |
| MTBF | 135000h | |
| Number of Outputs | 1 | |
| Ripple and Noise | 100mV Pk-Pk | |
| Output Voltage Adjustment Range | 5/24 V | |
| Isolation Voltage | 1kV dc | |
| Number of Pins | 6 | |
| Maximum Output Power | 1W | |
| Package Type | SIP | |
| Width | 7.05mm | |
| Length | 19.65mm | |
| Series | RY | |
| Depth | 10.2mm | |
| Weight | 2.8g | |
| Standards/Approvals | EN 60950-1 | |
| Efficiency | 66% | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 70°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 12V dc | ||
Product Type DC/DC Converter | ||
Maximum Input Voltage 5V dc | ||
Minimum Input Voltage 5V dc | ||
Output Current 1 84mA | ||
Output Current 2 84mA | ||
Mount Type Through Hole | ||
MTBF 135000h | ||
Number of Outputs 1 | ||
Ripple and Noise 100mV Pk-Pk | ||
Output Voltage Adjustment Range 5/24 V | ||
Isolation Voltage 1kV dc | ||
Number of Pins 6 | ||
Maximum Output Power 1W | ||
Package Type SIP | ||
Width 7.05mm | ||
Length 19.65mm | ||
Series RY | ||
Depth 10.2mm | ||
Weight 2.8g | ||
Standards/Approvals EN 60950-1 | ||
Efficiency 66% | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 70°C | ||
- COO (Country of Origin):
- TW

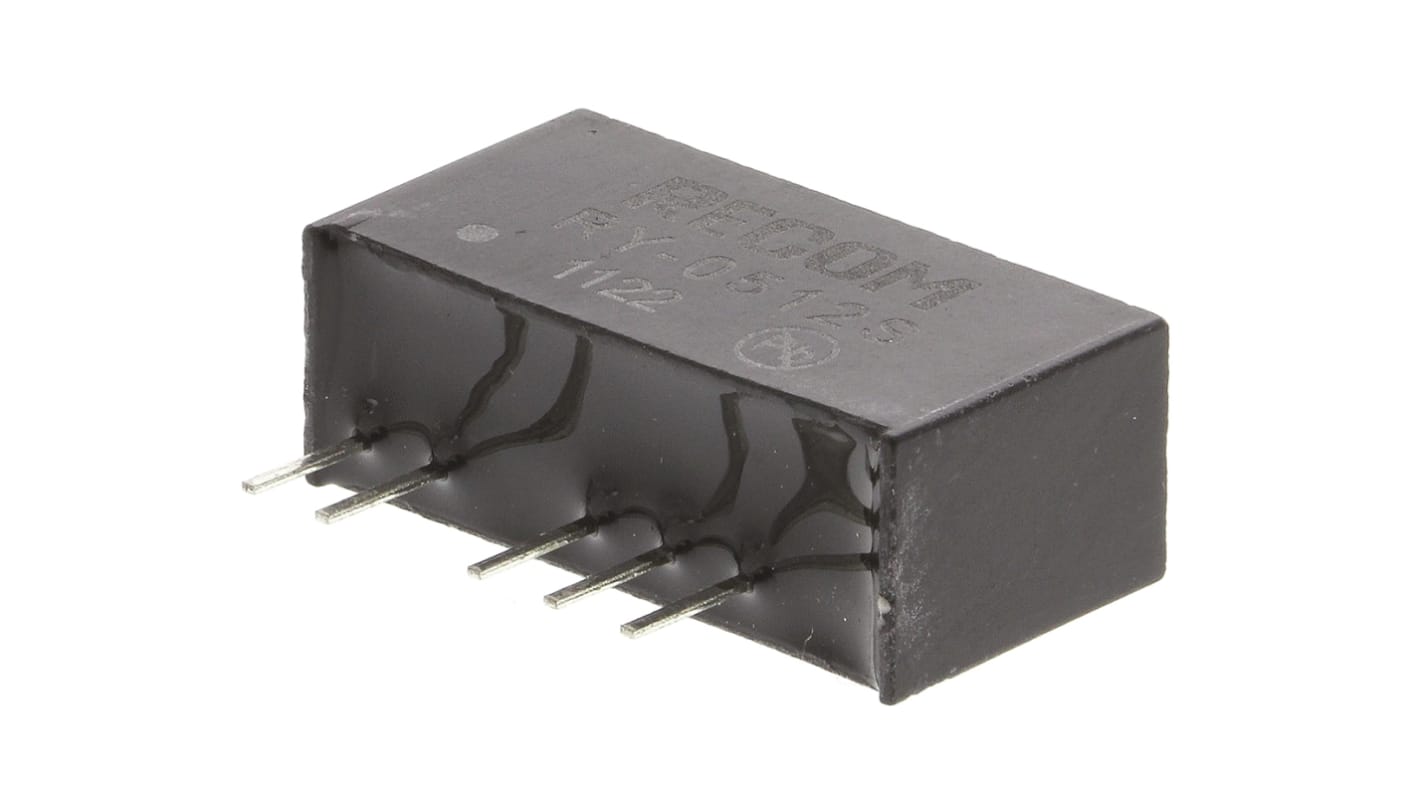

RECOM DC-DC Converter, 1kV DC Isolation, 66% Efficiency - RY Series - RY-0512S
Step up to a powerful energy solution with this DC-DC converter from RECOM. It's designed to take an input voltage between 4.75 and 5.25V DC and increase it to an output of 12V DC to power a compatible appliance. The device is isolated, providing an additional layer of safety for personnel and equipment. Thanks to through-hole mounting and a depth of just 10.2mm, you can easily add it to a busy PCB.
Features & Benefits
• 1W output suitable for low-power applications
• Fully encapsulated design for protection from environmental contaminants
• Broad operating temperature range of -40°C to +70°C suits challenging conditions
• Constant voltage with load regulation of ±1%
• Output current of 84mA provides reliable power to your components
Applications
• Automotive manufacturing
• Industrial automation equipment
• Lighting systems
How big is this DC-DC converter?
It has Compact dimensions of 19.65 (L) x 7.05 (W) x 10.2mm (D), which is Ideal for PCBs where space is at a premium.
Can I control the converter remotely?
Yes, it has a control pin that enables you to turn it on and off remotely.
