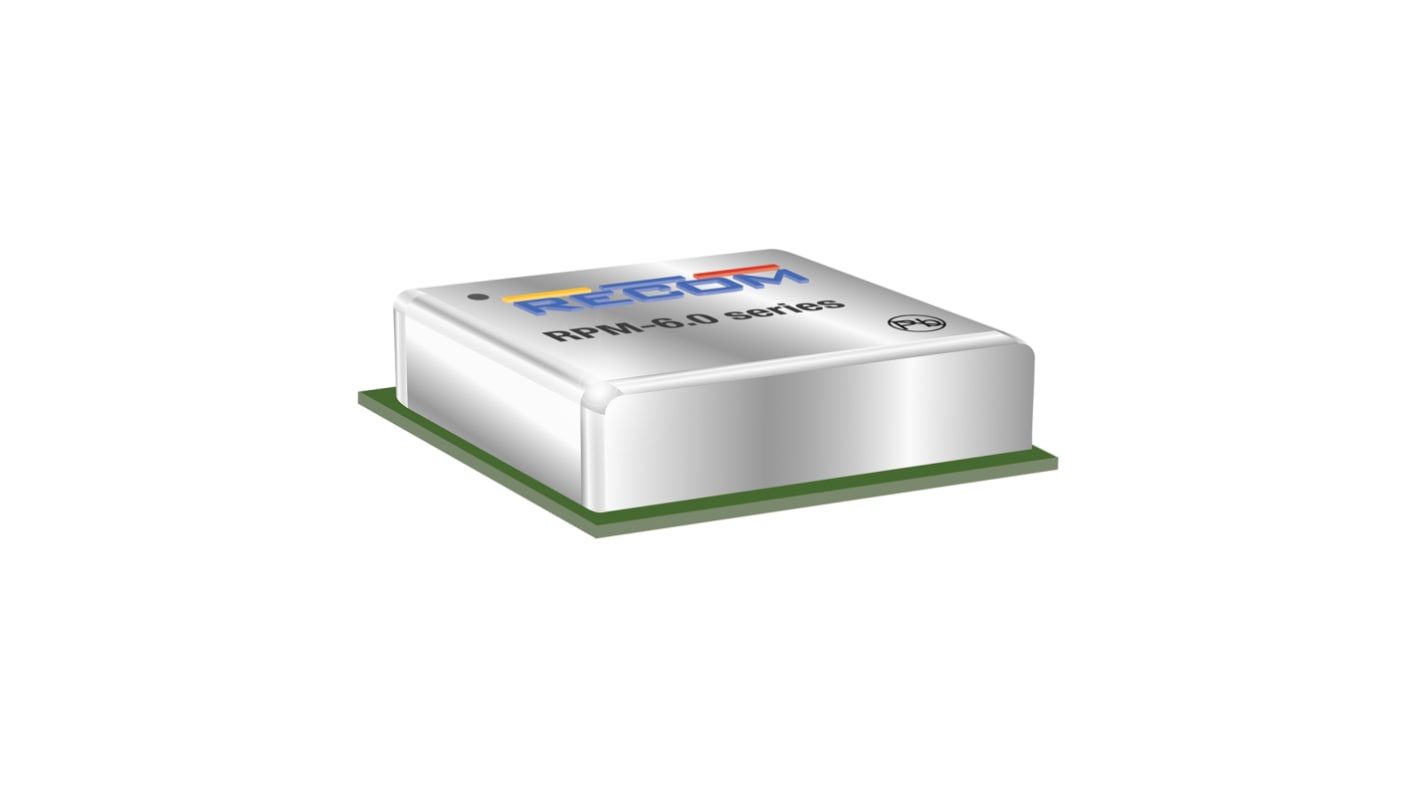

Recom RPM-6.0 DC-DC Converter, 3.3V dc/ 6A Output, 4 → 15 V dc Input, 3.3W, Surface Mount, +85°C Max Temp -40°C
- RS Stock No.:
- 183-4388
- Mfr. Part No.:
- RPM3.3-6.0-CT
- Brand:
- Recom
Bulk discount available
Subtotal (1 unit)*
£7.68
(exc. VAT)
£9.22
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 4 | £7.68 |
| 5 - 9 | £7.45 |
| 10 - 24 | £7.22 |
| 25 - 49 | £6.99 |
| 50 + | £6.76 |
*price indicative
- RS Stock No.:
- 183-4388
- Mfr. Part No.:
- RPM3.3-6.0-CT
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage | 3.3V dc | |
| Input Voltage Range | 4 → 15 V dc | |
| Power Rating | 3.3W | |
| Input Voltage Nominal | 12 V dc | |
| Output Current | 6A | |
| Mounting Type | Surface Mount | |
| Isolated | No | |
| Number of Outputs | 1 | |
| Depth | 3.75mm | |
| Length | 12.19mm | |
| Width | 12.19mm | |
| Series | RPM-6.0 | |
| Load Regulation | 0.03 | |
| Minimum Temperature | -40°C | |
| Efficiency | 88 → 97% | |
| Maximum Temperature | +85°C | |
Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 3.3V dc | ||
Input Voltage Range 4 → 15 V dc | ||
Power Rating 3.3W | ||
Input Voltage Nominal 12 V dc | ||
Output Current 6A | ||
Mounting Type Surface Mount | ||
Isolated No | ||
Number of Outputs 1 | ||
Depth 3.75mm | ||
Length 12.19mm | ||
Width 12.19mm | ||
Series RPM-6.0 | ||
Load Regulation 0.03 | ||
Minimum Temperature -40°C | ||
Efficiency 88 → 97% | ||
Maximum Temperature +85°C | ||
- COO (Country of Origin):
- SK
RECOM DC-DC Converter, ±3% Line Regulation, 88 to 97% Efficiency - RPM-6.0 Series - RPM3.3-6.0-CT
Looking for a small power conversion solution that's big on efficiency? Pick this DC-DC converter from RECOM. It steps down inputs between 4 and 15V DC to a steady 3.3V DC output to energise your low-voltage applications. The compact unit has dimensions of 12.19mm (L) x 12.19 (W) x 3.75mm (H), so it's a sure fit for crowded panels and PCBs. An efficiency rating between 88 and 97% indicates little energy is wasted as heat. This means the converter works like a charm at full load in temperatures up to +90°C without the need for additional cooling.
Features & Benefits
• Package with 6-sided shielding for optimal EMC performance
• Weighs just 1.1g so it won't be a drag on your system
• ±3% line regulation assures you the unit maintains its output voltage regardless of input fluctuations
• Weighs just 1.1g so it won't be a drag on your system
• ±3% line regulation assures you the unit maintains its output voltage regardless of input fluctuations
Applications
• Consumer electronics
• Telecommunications networks
• Industrial control panels
• Commercial and domestic appliances
• Telecommunications networks
• Industrial control panels
• Commercial and domestic appliances
Does this DC-DC converter have built-in protection against electrical faults?
Yes, the unit features overcurrent, over-temperature and short-circuit protection to cover all the bases should something go wrong.
How do I mount this DC-DC converter?
Simply solder this surface-mounting component onto your PCB.
