Recom RPM-2.0 DC-DC Converter, 3.3V dc/ 2A Output, 3 → 17 V dc Input, 3.3W, Surface Mount, +105°C Max Temp -40°C

View all DC-DC Converters
Bulk discount available

Subtotal (1 reel of 500 units)*

£2,402.44

(exc. VAT)

£2,882.93

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 24 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per unit*
1 - 4£2,402.44£4.805
5 - 9£2,330.37£4.661
10 - 24£2,258.29£4.517
25 - 49£2,186.22£4.372
50 +£2,114.15£4.228

*price indicative

RS Stock No.:
183-4334
Mfr. Part No.:
RPM3.3-2.0-CT
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage

3.3V dc

Input Voltage Range

3 → 17 V dc

Power Rating

3.3W

Input Voltage Nominal

12 V dc

Output Current

2A

Mounting Type

Surface Mount

Isolated

No

Number of Outputs

1

Depth

3.75mm

Length

12.19mm

Width

12.19mm

Series

RPM-2.0

Load Regulation

0.03

Minimum Temperature

-40°C

Maximum Temperature

+105°C

Efficiency

90 → 98%

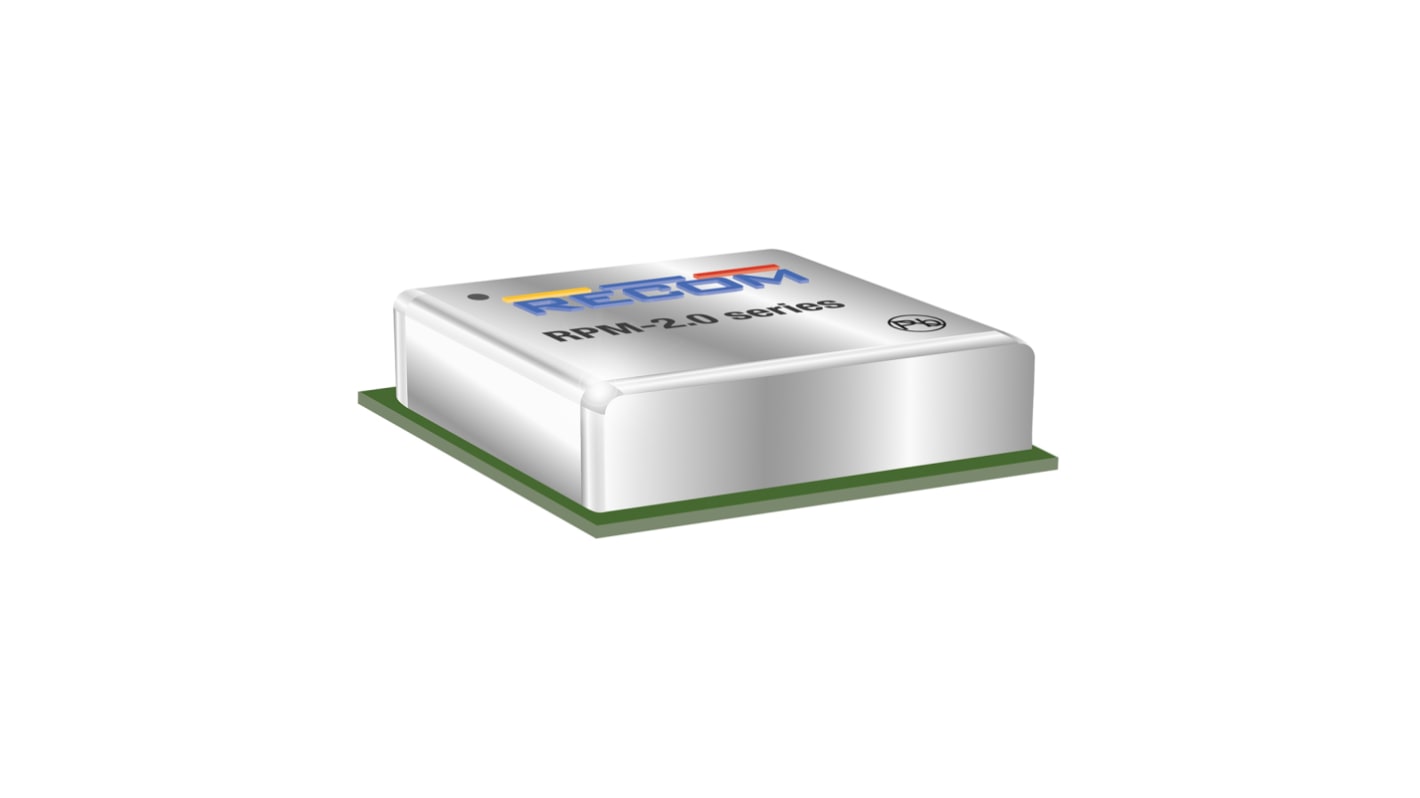

The RPM-2.0 series is a 2A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 98%, the device can operate at full load in ambient temperatures as high as +105°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

High power density (L*W*H = 12.19*12.19*3.75)
Wide operating temperature -40°C to +105°C at full load
Efficiency up to 98%, no need for heatsinks
6-sided shielding
Thermally and EMI enhanced 25 pad LGA package
Compact DOSA-compatible footprint
Low profile
