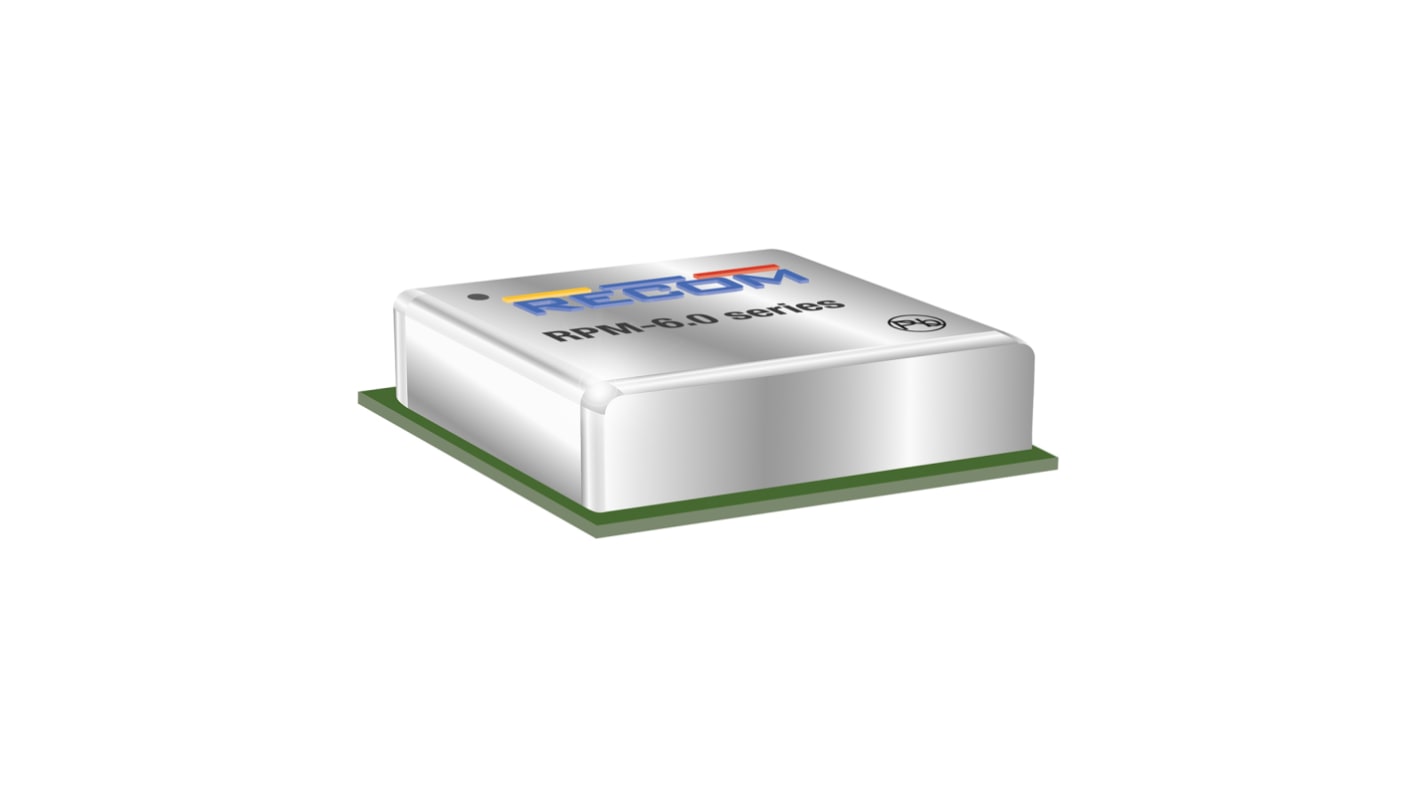

Recom RPM-6.0 DC/DC Converter, 3.3V dc/ 6 A, 12V dc Input, 4V, Surface, 85 °C Max Temp -40 °C Min Temp, 25 Pad LGA

View all DC-DC Converters
Bulk discount available

Subtotal (1 reel of 500 units)*

£3,063.60

(exc. VAT)

£3,676.32

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 14 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)
Per Reel
Per unit*
1 - 4£3,063.60£6.127
5 - 9£2,971.69£5.943
10 - 24£2,879.79£5.76
25 - 49£2,787.88£5.576
50 +£2,695.97£5.392

*price indicative

RS Stock No.:
183-4339
Mfr. Part No.:
RPM3.3-6.0-CT
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Product Type

DC/DC Converter

Output Voltage 1

3.3V dc

Maximum Input Voltage

12V dc

Minimum Input Voltage

4V

Mount Type

Surface

MTBF

1800000h

Number of Outputs

1

Output Voltage Adjustment Range

0.9 to 6.0 V dc

Ripple and Noise

60mV Pk-Pk

Output Current 1

6A

Package Type

25 Pad LGA

Maximum Output Power

3.3W

Depth

3.75mm

Width

12.19mm

Series

RPM-6.0

Length

12.19mm

Weight

1.1g

Standards/Approvals

EN 62368-1

Minimum Operating Temperature

-40°C

Maximum Operating Temperature

85°C

Efficiency

97%

RECOM DC-DC Converter, ±3% Line Regulation, 88 to 97% Efficiency - RPM-6.0 Series - RPM3.3-6.0-CT


Looking for a small power conversion solution that's big on efficiency? Pick this DC-DC converter from RECOM. It steps down inputs between 4 and 15V DC to a steady 3.3V DC output to energise your low-voltage applications. The compact unit has dimensions of 12.19mm (L) x 12.19 (W) x 3.75mm (H), so it's a sure fit for crowded panels and PCBs. An efficiency rating between 88 and 97% indicates little energy is wasted as heat. This means the converter works like a charm at full load in temperatures up to +90°C without the need for additional cooling.

Features & Benefits


• Package with 6-sided shielding for optimal EMC performance

• Weighs just 1.1g so it won't be a drag on your system

• ±3% line regulation assures you the unit maintains its output voltage regardless of input fluctuations

Applications


• Consumer electronics

• Telecommunications networks

• Industrial control panels

• Commercial and domestic appliances

Does this DC-DC converter have built-in protection against electrical faults?


Yes, the unit features overcurrent, over-temperature and short-circuit protection to cover all the bases should something go wrong.

How do I mount this DC-DC converter?


Simply solder this surface-mounting component onto your PCB.
