Recom RPM-6.0 DC/DC Converter, 5V dc/ 6 A, 12V dc Input, 4V, Surface, 85 °C Max Temp -40 °C Min Temp, 25 Pad LGA
- RS Stock No.:
- 183-4340
- Mfr. Part No.:
- RPM5.0-6.0-CT
- Brand:
- Recom
Bulk discount available
Subtotal (1 reel of 500 units)*
£3,249.44
(exc. VAT)
£3,899.33
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 08 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 - 4 | £3,249.44 | £6.499 |
| 5 - 9 | £3,151.96 | £6.304 |
| 10 - 24 | £3,054.48 | £6.109 |
| 25 - 49 | £2,956.99 | £5.914 |
| 50 + | £2,859.51 | £5.719 |
*price indicative
- RS Stock No.:
- 183-4340
- Mfr. Part No.:
- RPM5.0-6.0-CT
- Brand:
- Recom
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Recom | |
| Output Voltage 1 | 5V dc | |
| Product Type | DC/DC Converter | |
| Minimum Input Voltage | 4V | |
| Maximum Input Voltage | 12V dc | |
| Mount Type | Surface | |
| Number of Outputs | 1 | |
| MTBF | 1800000h | |
| Ripple and Noise | 60mV Pk-Pk | |
| Output Voltage Adjustment Range | 0.9 to 6.0 V dc | |
| Output Current 1 | 6A | |
| Package Type | 25 Pad LGA | |
| Maximum Output Power | 5W | |
| Width | 12.19mm | |
| Depth | 3.75mm | |
| Length | 12.19mm | |
| Weight | 1.1g | |
| Standards/Approvals | EN 62368-1 | |
| Series | RPM-6.0 | |
| Maximum Operating Temperature | 85°C | |
| Efficiency | 99% | |
| Minimum Operating Temperature | -40°C | |
| Select all | ||
|---|---|---|
Brand Recom | ||
Output Voltage 1 5V dc | ||
Product Type DC/DC Converter | ||
Minimum Input Voltage 4V | ||
Maximum Input Voltage 12V dc | ||
Mount Type Surface | ||
Number of Outputs 1 | ||
MTBF 1800000h | ||
Ripple and Noise 60mV Pk-Pk | ||
Output Voltage Adjustment Range 0.9 to 6.0 V dc | ||
Output Current 1 6A | ||
Package Type 25 Pad LGA | ||
Maximum Output Power 5W | ||
Width 12.19mm | ||
Depth 3.75mm | ||
Length 12.19mm | ||
Weight 1.1g | ||
Standards/Approvals EN 62368-1 | ||
Series RPM-6.0 | ||
Maximum Operating Temperature 85°C | ||
Efficiency 99% | ||
Minimum Operating Temperature -40°C | ||

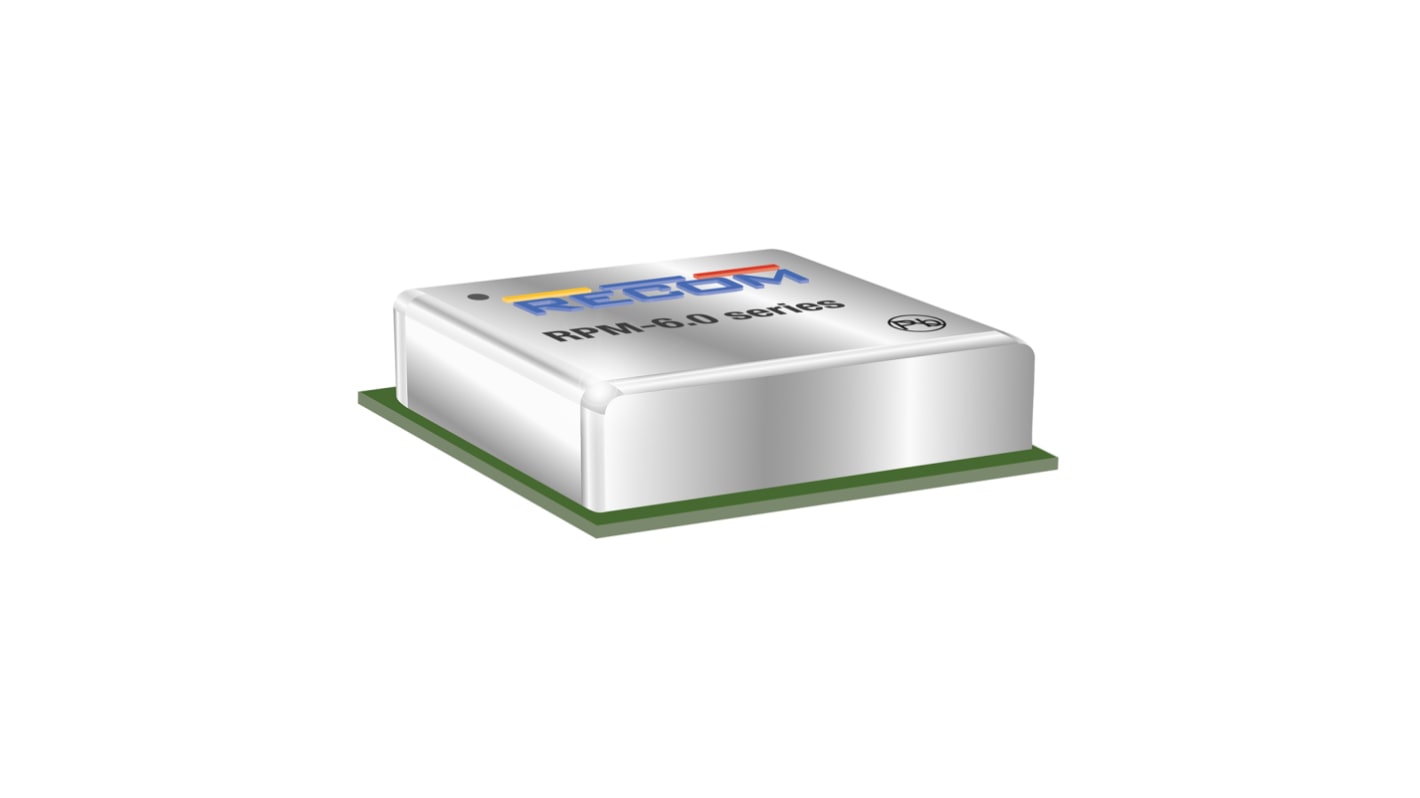

The RPM-6.0 series is a 6A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures as high as +90°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.
High power density (L*W*H = 12.19*12.19*3.75)
Wide operating temperature -40°C to +90°C at full load
Efficiency up to 99%, no need for heatsinks
6-sided shielding
Thermally and EMI enhanced 25 pad LGA package
Compact DOSA-compatible footprint
Low profile
