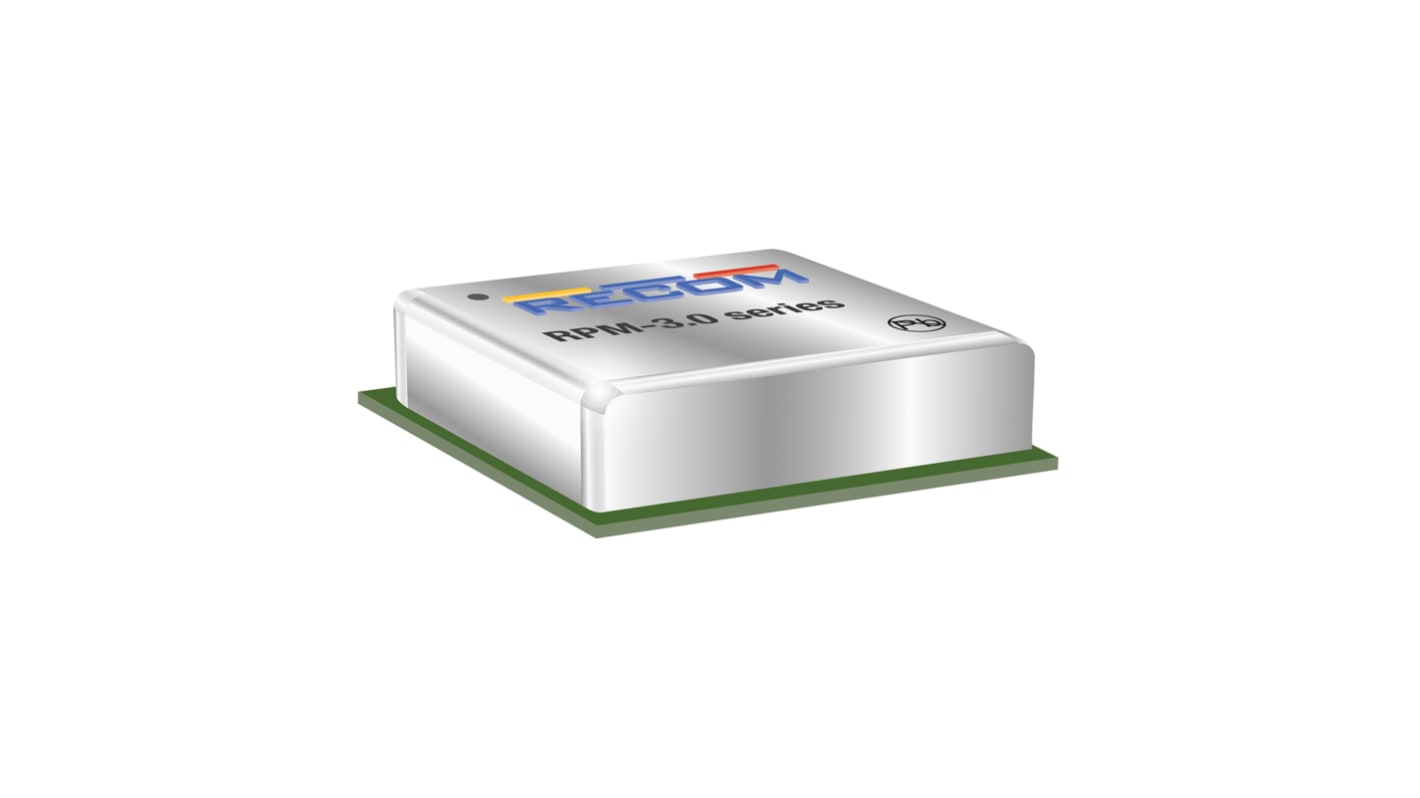

Recom RPM-3.0 DC-DC Converter, 3.3V dc/ 3A Output, 3 → 17 V dc Input, 3.3W, Surface Mount, +100°C Max Temp -40°C
- RS Stock No.:
- 183-4336
- Mfr. Part No.:
- RPM3.3-3.0-CT
- Brand:
- Recom
Available to back order for despatch 17/09/2024
Added
Price 1 Reel of 500
£1,532.87
(exc. VAT)
£1,839.44
(inc. VAT)
Reel(s) | Per Reel | Per unit* |
1 + | £1,532.87 | £3.066 |
*price indicative |
- RS Stock No.:
- 183-4336
- Mfr. Part No.:
- RPM3.3-3.0-CT
- Brand:
- Recom
Technical Reference
Legislation and Compliance
Product Details
RECOM DC-DC Converter, Non-Isolated, Adjustable Output - RPM-3.0 Series - RPM3.3-3.0-CT
Use this DC-DC converter from RECOM to regulate a wide input voltage range between 3 and 17V DC to a stable 3.3V DC output. Its steady power supply keeps industrial equipment operating reliably. For safety, the unit is protected against short circuits and overheating. High efficiency of up to 97% means it operates at full load capacity across its entire temperature range of -40°C to +105°C. This is with free-air cooling, which eliminates the need for additional fans.
Features & Benefits
• 6-sided shielding for superior EMC performance, so minimises the chance of interference with nearby electronics
• Dimensions of 12.9 (L) x 12.9 (W) x 3.57mm (H) to maximise board packing efficiency
• High power rating of 3.3W for compatibility with demanding systems
• Mean time between failures of 2,400,000 hours for an extended service life
• Dimensions of 12.9 (L) x 12.9 (W) x 3.57mm (H) to maximise board packing efficiency
• High power rating of 3.3W for compatibility with demanding systems
• Mean time between failures of 2,400,000 hours for an extended service life
Applications
• Industrial motor drives
• Aerospace technology
• Data centres
• Consumer electronics
• Aerospace technology
• Data centres
• Consumer electronics
What type of enclosure does this converter have?
This converter has a robust metal enclosure, so it's suitable to use in demanding industrial environments.
Can I trim the output voltage range of this converter?
Yes, you can trim the output voltage range between 0.9 and 6V by using external trim resistors.
Specifications
Attribute | Value |
---|---|
Output Voltage | 3.3V dc |
Input Voltage Range | 3 → 17 V dc |
Power Rating | 3.3W |
Input Voltage Nominal | 12 V dc |
Output Current | 3A |
Mounting Type | Surface Mount |
Isolated | No |
Number of Outputs | 1 |
Depth | 3.75mm |
Width | 12.19mm |
Length | 12.19mm |
Series | RPM-3.0 |
Load Regulation | 0.03 |
Maximum Temperature | +100°C |
Minimum Temperature | -40°C |
Efficiency | 87 → 97% |
