Recom RPM-1.0 DC/DC Converter, 5V dc/ 1 A, 12V dc Input, 3V, Surface, 105 °C Max Temp -40 °C Min Temp, 25-Pin LGA

View all DC-DC Converters
Bulk discount available

Subtotal (1 unit)*

£5.38

(exc. VAT)

£6.46

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 33 unit(s) shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units
Per unit
1 - 4£5.38
5 - 9£5.22
10 - 24£5.06
25 - 49£4.90
50 +£4.75

*price indicative

RS Stock No.:
183-4372
Mfr. Part No.:
RPM5.0-1.0-CT
Brand:
Recom
Find similar products by selecting one or more attributes.
Select all

Brand

Recom

Output Voltage 1

5V dc

Product Type

DC/DC Converter

Minimum Input Voltage

3V

Maximum Input Voltage

12V dc

Mount Type

Surface

MTBF

2900000h

Number of Outputs

1

Output Voltage Adjustment Range

0.9 to 6.0 V dc

Ripple and Noise

60mV Pk-Pk

Output Current 1

1A

Maximum Output Power

5W

Package Type

25-Pin LGA

Depth

3.75mm

Length

12.19mm

Series

RPM-1.0

Width

12.19mm

Weight

1.1g

Standards/Approvals

EN 62368-1

Maximum Operating Temperature

105°C

Efficiency

99%

Minimum Operating Temperature

-40°C

COO (Country of Origin):
SK

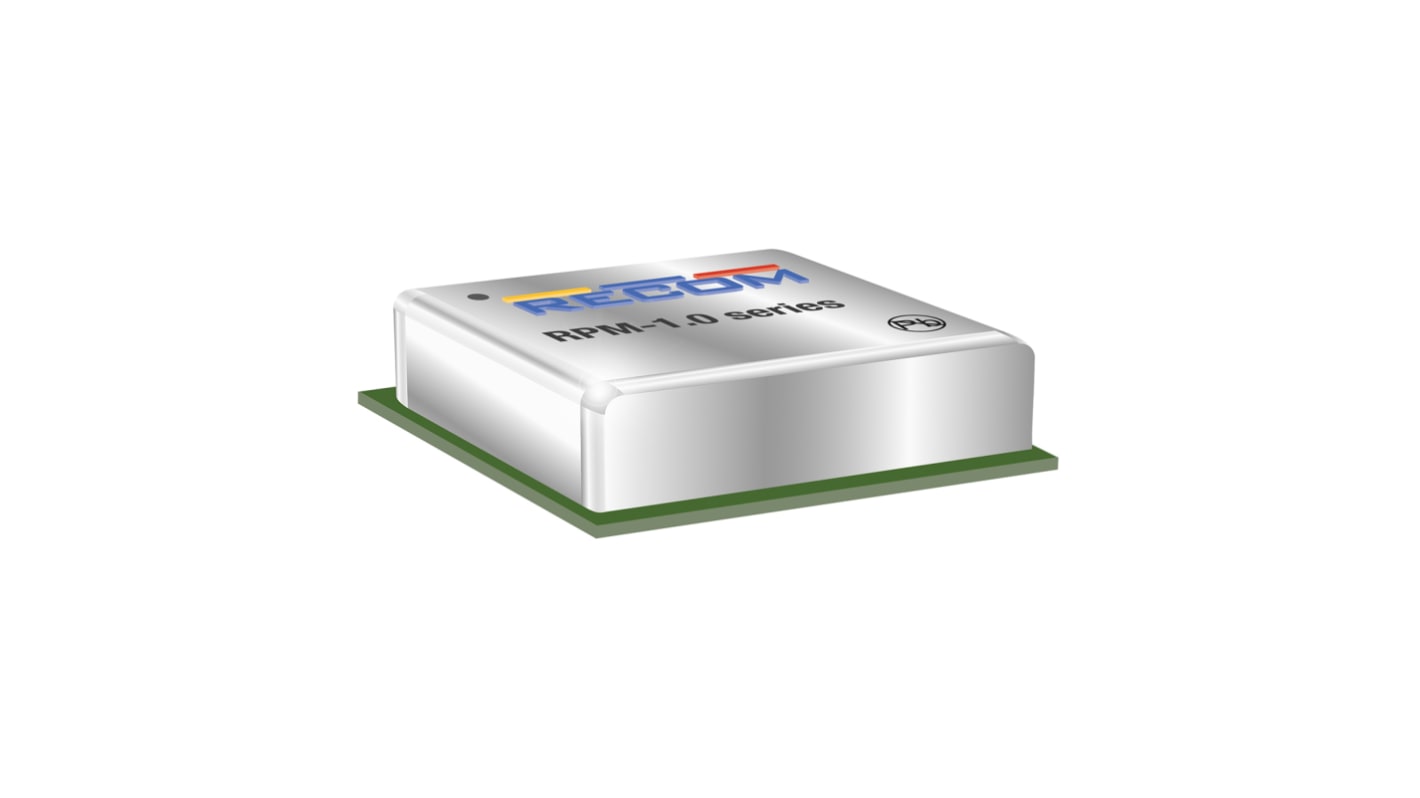

The RPM-1.0 series is a 1A non-isolated switching regulator power module with a full set of features including adjustable output, sequencing, soft-start control, on/off control and power good signals. The ultra-compact module has a profile of only 3.75mm, but with an efficiency of up to 99%, the device can operate at full load in ambient temperatures as high as +107°C without forced air cooling. The package is complete with 6-sided shielding for optimal EMC performance and excellent heat management.

High power density (L*W*H = 12.19*12.19*3.75)

Wide operating temperature -40°C to +107°C at full load

Efficiency up to 99%, no need for heatsinks

6-sided shielding

Thermally and EMI enhanced 25 pad LGA package

Compact DOSA-compatible footprint

Low profile
