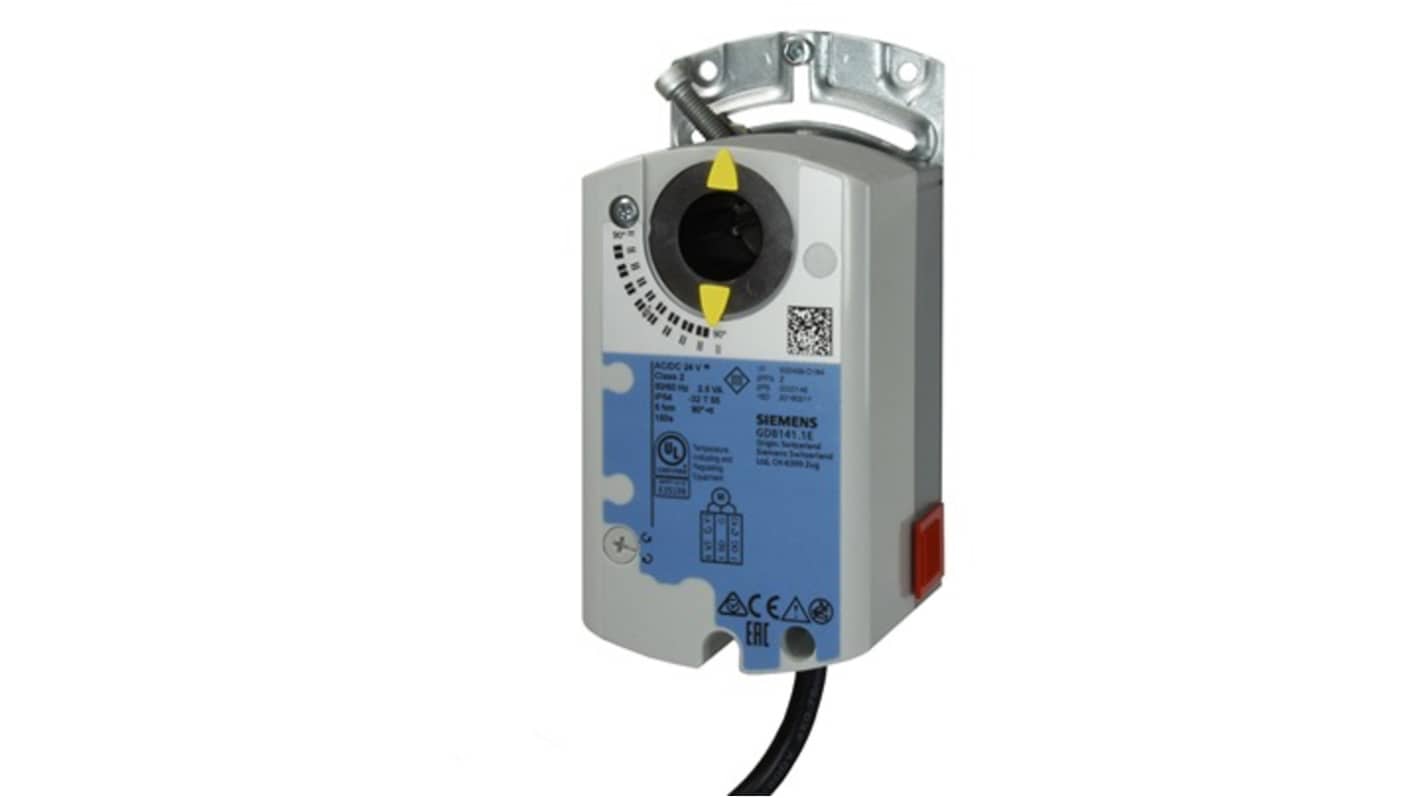

Siemens 2-Position, 3-Position Damper Actuator, 5 Nm, 230V ac
- RS Stock No.:
- 636-505
- Mfr. Part No.:
- GDB346.1E / S55499-D188
- Brand:
- Siemens
Subtotal (1 unit)*
£131.24
(exc. VAT)
£157.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 14 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £131.24 |
*price indicative
- RS Stock No.:
- 636-505
- Mfr. Part No.:
- GDB346.1E / S55499-D188
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Damper Actuator | |
| Maximum Damper Area | 0.8m² | |
| Switch Included | Yes | |
| For Use With | Used In Air Conditioning Plants | |
| Power Consumption | 1.6W | |
| Control Type | 2-Position, 3-Position | |
| Supply Voltage | 230V ac | |
| Motor Torque | 5Nm | |
| IP Rating | IP54 | |
| Minimum Operating Temperature | -32°C | |
| Running Time | 150s | |
| Angle of Rotation | 90° | |
| Maximum Operating Temperature | 55°C | |
| Standards/Approvals | UKCA, CE | |
| Series | GDB | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Damper Actuator | ||
Maximum Damper Area 0.8m² | ||
Switch Included Yes | ||
For Use With Used In Air Conditioning Plants | ||
Power Consumption 1.6W | ||
Control Type 2-Position, 3-Position | ||
Supply Voltage 230V ac | ||
Motor Torque 5Nm | ||
IP Rating IP54 | ||
Minimum Operating Temperature -32°C | ||
Running Time 150s | ||
Angle of Rotation 90° | ||
Maximum Operating Temperature 55°C | ||
Standards/Approvals UKCA, CE | ||
Series GDB | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Siemens Air Damper Actuator is a compact, high-performance actuator designed for HVAC applications requiring 2-position or 3-position control. Operating on AC 230 V, it delivers 5 Nm torque with a runtime of 150 seconds, making it suitable for precise damper adjustments. Integrated dual auxiliary switches enhance control flexibility and feedback capabilities.
Feedback potentiometer
Flame retardant housing
CE and UKCA compliant
RoHS compliant
