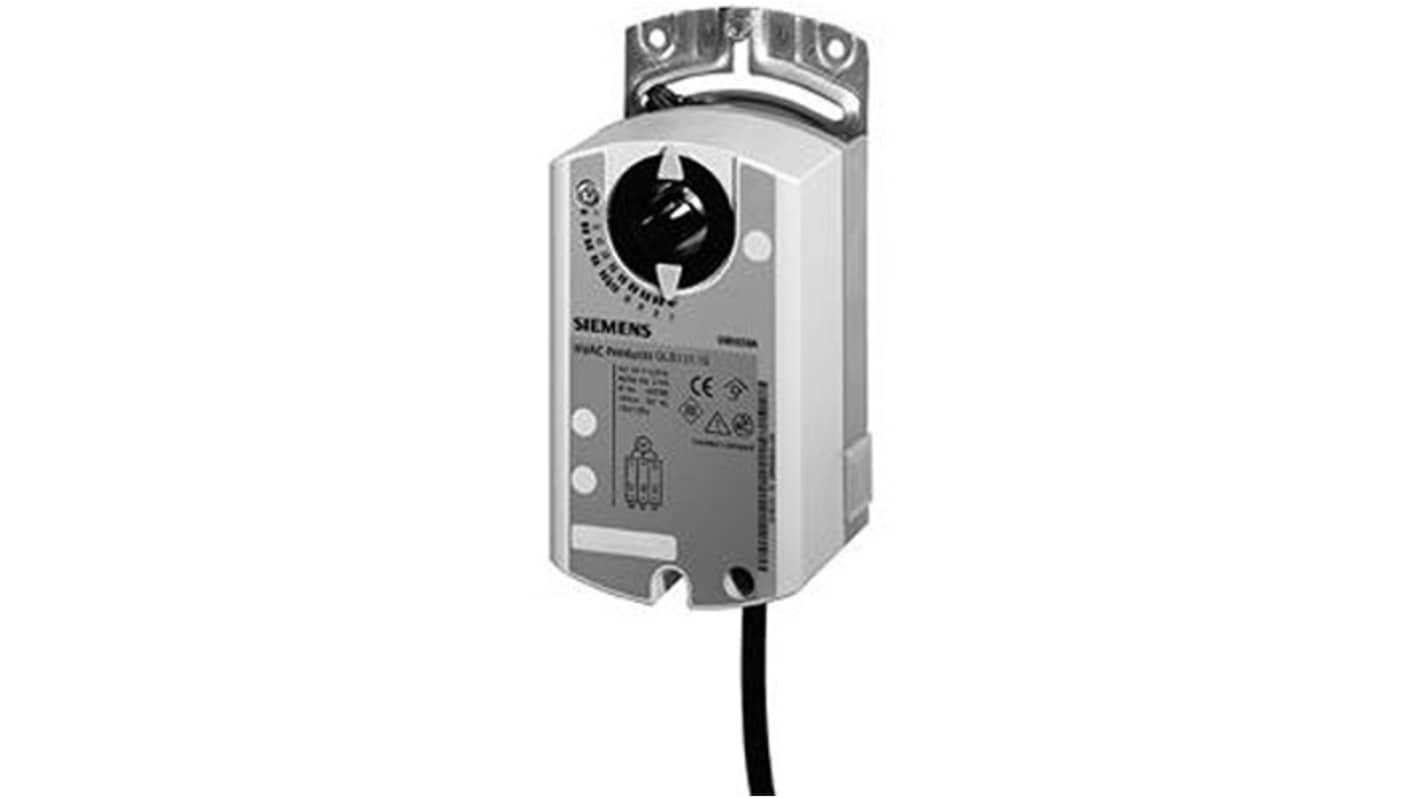

Siemens 3-Position Control, 2-Position Damper Actuator, 10 Nm, 230V ac
- RS Stock No.:
- 636-530
- Mfr. Part No.:
- GLB346.1E / S55499-D196
- Brand:
- Siemens
Subtotal (1 unit)*
£162.91
(exc. VAT)
£195.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £162.91 |
*price indicative
- RS Stock No.:
- 636-530
- Mfr. Part No.:
- GLB346.1E / S55499-D196
- Brand:
- Siemens
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Damper Actuator | |
| Maximum Damper Area | 1.5m² | |
| Switch Included | Yes | |
| Power Consumption | 2W | |
| For Use With | Air Dampers | |
| Control Type | 3-Position Control, 2-Position | |
| Supply Voltage | 230V ac | |
| Motor Torque | 10Nm | |
| IP Rating | IP54 | |
| Noise Level | 28dB | |
| Minimum Operating Temperature | -32°C | |
| Angle of Rotation | 90° | |
| Running Time | 150s | |
| Maximum Damper Spindle Size | 16mm | |
| Maximum Operating Temperature | 55°C | |
| Minimum Damper Spindle Size | 8mm | |
| Standards/Approvals | EAC, CE, RCM, EN 60730, UL | |
| Series | GLB346.1E | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Damper Actuator | ||
Maximum Damper Area 1.5m² | ||
Switch Included Yes | ||
Power Consumption 2W | ||
For Use With Air Dampers | ||
Control Type 3-Position Control, 2-Position | ||
Supply Voltage 230V ac | ||
Motor Torque 10Nm | ||
IP Rating IP54 | ||
Noise Level 28dB | ||
Minimum Operating Temperature -32°C | ||
Angle of Rotation 90° | ||
Running Time 150s | ||
Maximum Damper Spindle Size 16mm | ||
Maximum Operating Temperature 55°C | ||
Minimum Damper Spindle Size 8mm | ||
Standards/Approvals EAC, CE, RCM, EN 60730, UL | ||
Series GLB346.1E | ||
RoHS Status: Exempt
- COO (Country of Origin):
- CH
The Siemens Damper actuator engineered for HVAC systems, it offers precise control in air handling units and ventilation ducts. Its 230 V AC operation ensures reliable performance across industrial and commercial installations. The compact build simplifies mounting and minimizes space constraints. Integrated thermal and electrical protections enhance durability and safety.
Feedback potentiometer
Flame retardant housing
CE and UKCA compliant
RoHS compliant
