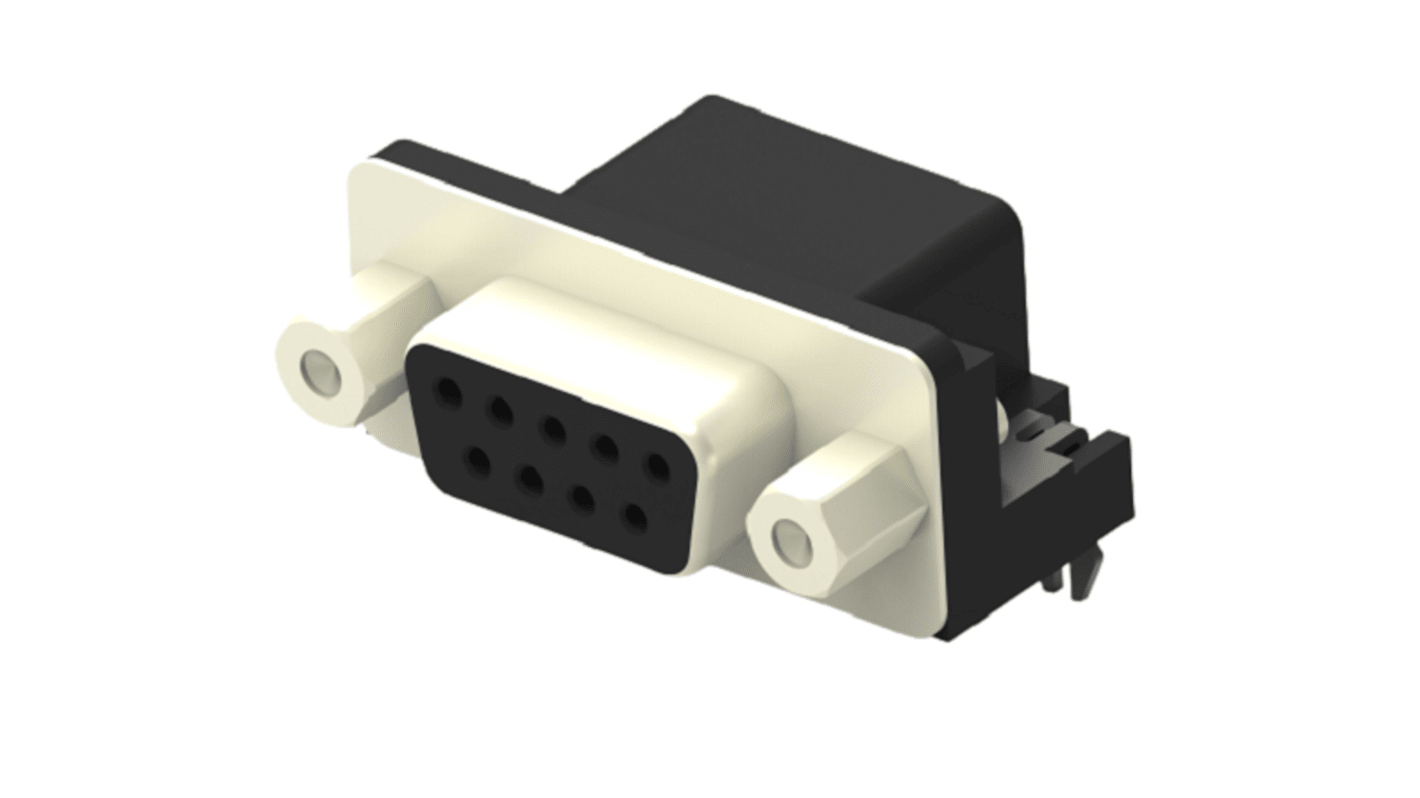

TE Connectivity 2301844 9 Way Right Angle Board Mount PCB D-sub Connector Receptacle, 2.77mm Pitch, with Boardlock
- RS Stock No.:
- 274-8561
- Mfr. Part No.:
- 2301844-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 bag of 2 units)*
£6.60
(exc. VAT)
£7.92
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 3,926 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 2 - 8 | £3.30 | £6.60 |
| 10 - 98 | £3.12 | £6.24 |
| 100 - 198 | £2.96 | £5.92 |
| 200 - 498 | £2.815 | £5.63 |
| 500 + | £2.57 | £5.14 |
*price indicative
- RS Stock No.:
- 274-8561
- Mfr. Part No.:
- 2301844-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 9 | |
| Gender | Receptacle | |
| Body Orientation | Right Angle | |
| Mounting Type | Board Mount | |
| Pitch | 2.77mm | |
| D Connector Type | D-Subminiature Connector | |
| Termination Method | Solder, Through Hole | |
| Mounting Hardware | Boardlock | |
| D-Sub Shell Size | S1 | |
| Current Rating | 2A | |
| Housing Material | PBT (Glass-Reinforced) | |
| Series | 2301844 | |
| Dimensions | 2.84mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | +105°C | |
| Series Number | 2301844 | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Receptacle | ||
Body Orientation Right Angle | ||
Mounting Type Board Mount | ||
Pitch 2.77mm | ||
D Connector Type D-Subminiature Connector | ||
Termination Method Solder, Through Hole | ||
Mounting Hardware Boardlock | ||
D-Sub Shell Size S1 | ||
Current Rating 2A | ||
Housing Material PBT (Glass-Reinforced) | ||
Series 2301844 | ||
Dimensions 2.84mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +105°C | ||
Series Number 2301844 | ||
- COO (Country of Origin):
- CN
The TE Connectivity PCB D Sub Connectors Receptacle is a 2 row electrical connector with a centreline pitch of 2.77 mm with offering 9 positions for connecting wires to a circuit board. It is designed for wire to board connections in electronic applications. The TE Connectivity offers one of the broadest, most versatile portfolios of D sub miniature connectors in the market with unrivalled engineering support to address our customers needs. Our D Sub miniature connector portfolio is designed for multiple applications, along with specialized accessories that will provide any customer with an economical D Sub solution for any complex applications.
Lower cost alternative
Complying with MIL C 24308
Provide EMI and RFI protection
Offers backwards compatibility
Right angle PCB mount orientation
Complying with MIL C 24308
Provide EMI and RFI protection
Offers backwards compatibility
Right angle PCB mount orientation
