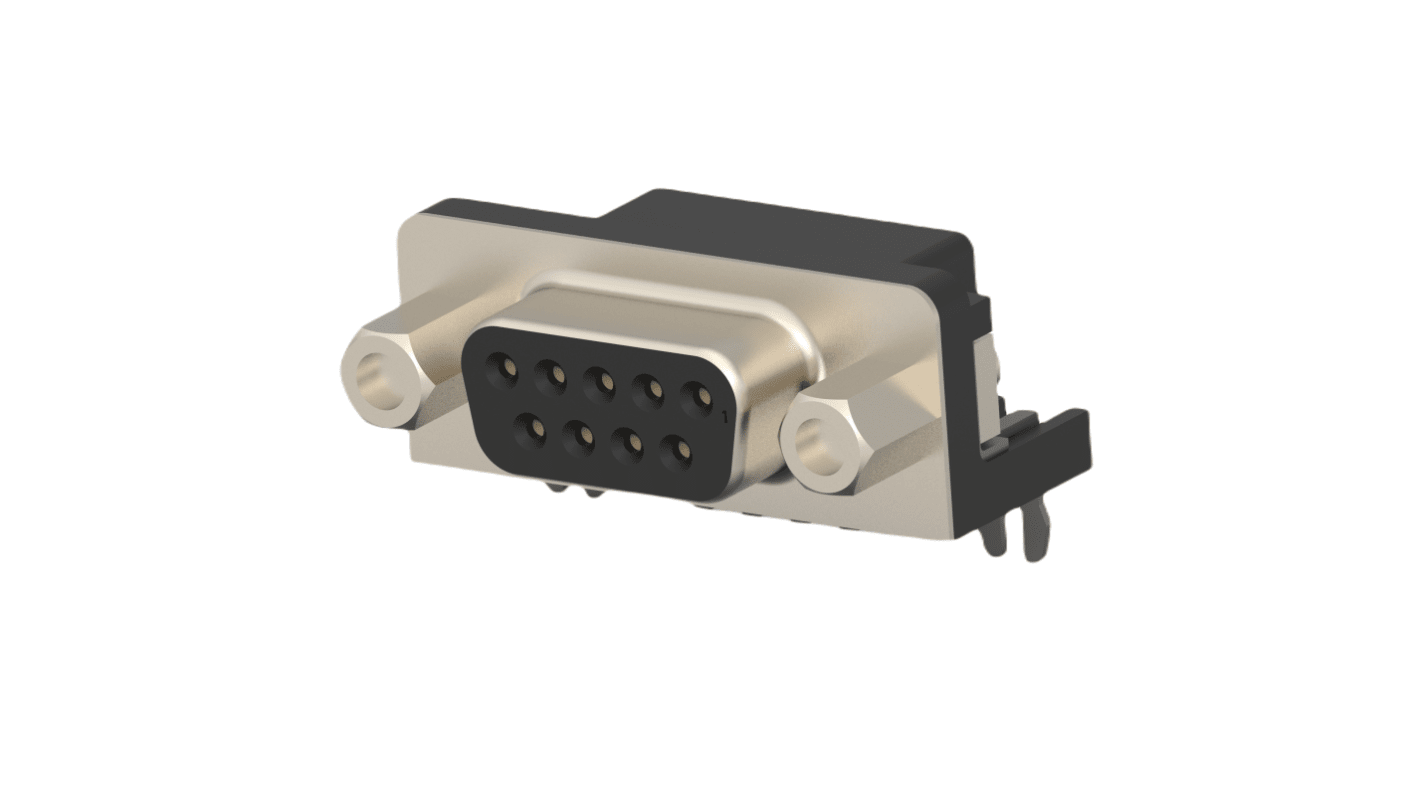

TE Connectivity 9 Way Right Angle Board Mount PCB D-sub Connector Receptacle, 2.77mm Pitch, with Boardlock
- RS Stock No.:
- 305-041
- Mfr. Part No.:
- 2311765-1
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 pack of 5 units)*
£6.29
(exc. VAT)
£7.55
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 145 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Pack(s) | Per Pack | Per unit* |
---|---|---|
1 - 4 | £6.29 | £1.258 |
5 - 9 | £5.80 | £1.16 |
10 + | £5.01 | £1.002 |
*price indicative
- RS Stock No.:
- 305-041
- Mfr. Part No.:
- 2311765-1
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Number of Contacts | 9 | |
Gender | Receptacle | |
Body Orientation | Right Angle | |
Mounting Type | Board Mount | |
Pitch | 2.77mm | |
Termination Method | Solder, Through Hole | |
Mounting Hardware | Boardlock | |
Current Rating | 3A | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +85°C | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Number of Contacts 9 | ||
Gender Receptacle | ||
Body Orientation Right Angle | ||
Mounting Type Board Mount | ||
Pitch 2.77mm | ||
Termination Method Solder, Through Hole | ||
Mounting Hardware Boardlock | ||
Current Rating 3A | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +85°C | ||
- COO (Country of Origin):
- CN
The TE Connectivity Receptacle is a wire-to-board connector with a 9-position, 2-row configuration and a 2.77 mm [.109 in] centreline. It features a round shape with a standard profile and a right-angle orientation, making it ideal for space-constrained PCB applications. This connector is part of the PCB D-Sub series, ensuring secure and reliable connections between wires and boards in various electronic systems.
Board mount connector mounting
PBT GF housing material
EU RoHS compliant
EU ELV compliant
PBT GF housing material
EU RoHS compliant
EU ELV compliant
