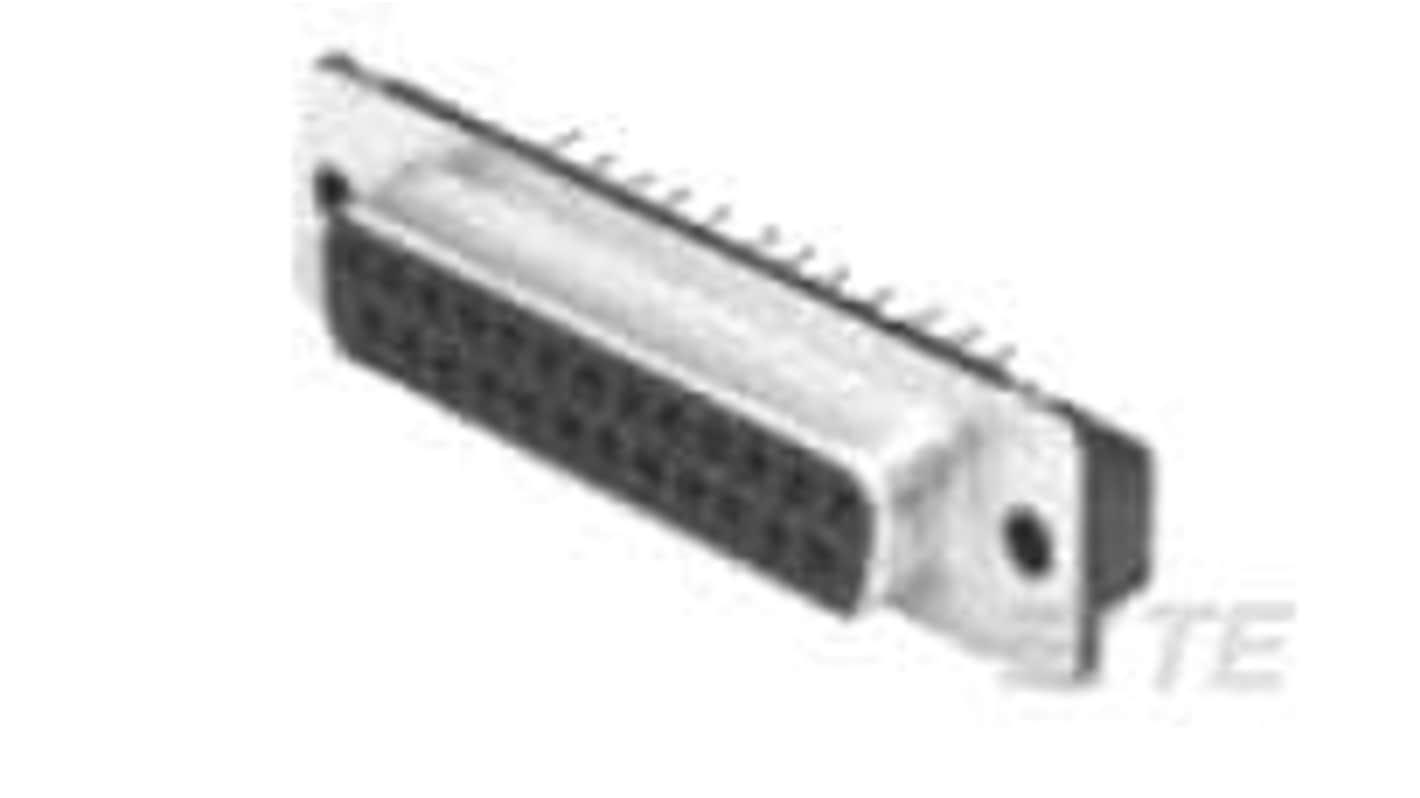

TE Connectivity 2-338 25 Way Vertical 2.74 mm Pitch Board D-Sub Connector, with Board Lock Female

View all D Sub Connectors

Subtotal (1 tray of 30 units)*

£201.28

(exc. VAT)

£241.54

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£201.28£6.709

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
504-113
Distrelec Article No.:
304-49-538
Mfr. Part No.:
2-338315-2
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

25

Product Type

D-Sub Connector

Orientation

Vertical

Current

6A

Mount Type

Board

Connector Gender

Female

Connector Type D

D-Sub

D-Sub Shell Size

3

Mounting Hardware

Board Lock

Housing Material

Glass Filled Polyester

Minimum Operating Temperature

-55°C

Termination Type

Solder

Contact Gender

Female

Maximum Operating Temperature

105°C

Standards/Approvals

DIN 41652, EU RoHS Directive 2011/65/EU Compliant with Exemptions, UL 94V-0, EU ELV Directive 2000/53/EC Compliant with Exemptions, 2016, China RoHS 2 Directive MIIT Order No 32

Contact Material

Phosphor Bronze

Contact Plating

Gold

Series

2-338

Pitch

2.74mm

COO (Country of Origin):
CN
The TE Connectivity Receptacle represents a pinnacle of reliability and functionality in board-to-board connectors. Designed with precision, it accommodates 25 positions in a compact form factor, ensuring seamless electrical connections while maintaining space efficiency. The unique round shell profile optimises performance, making it suitable for various applications. Crafted for vertical PCB mounting, it withstands diverse environmental conditions with an operating temperature range from -55°C to 105°C. The robust build combines a steel shell and glass-filled polyester housing, promoting durability. Ideal for signal circuit applications, it ensures a long service life with a durability rating of 200 cycles. This connector is not simply a component; it is engineered to meet industry standards, making it a trustworthy choice for demanding projects.

Offers a reliable board to board connection for enhanced system performance

Features two rows of positions optimising space without sacrificing connectivity

Provides vertical mounting orientation allowing for versatile installation options

Includes boardlock retention for added stability during operation

Constructed from high quality materials ensuring longevity in various applications

Suitable for through hole solder termination facilitating easy integration on PCBs

Compatible with multiple approved standards ensuring compliance and reliability

Designed for signal applications maximising performance and functionality
