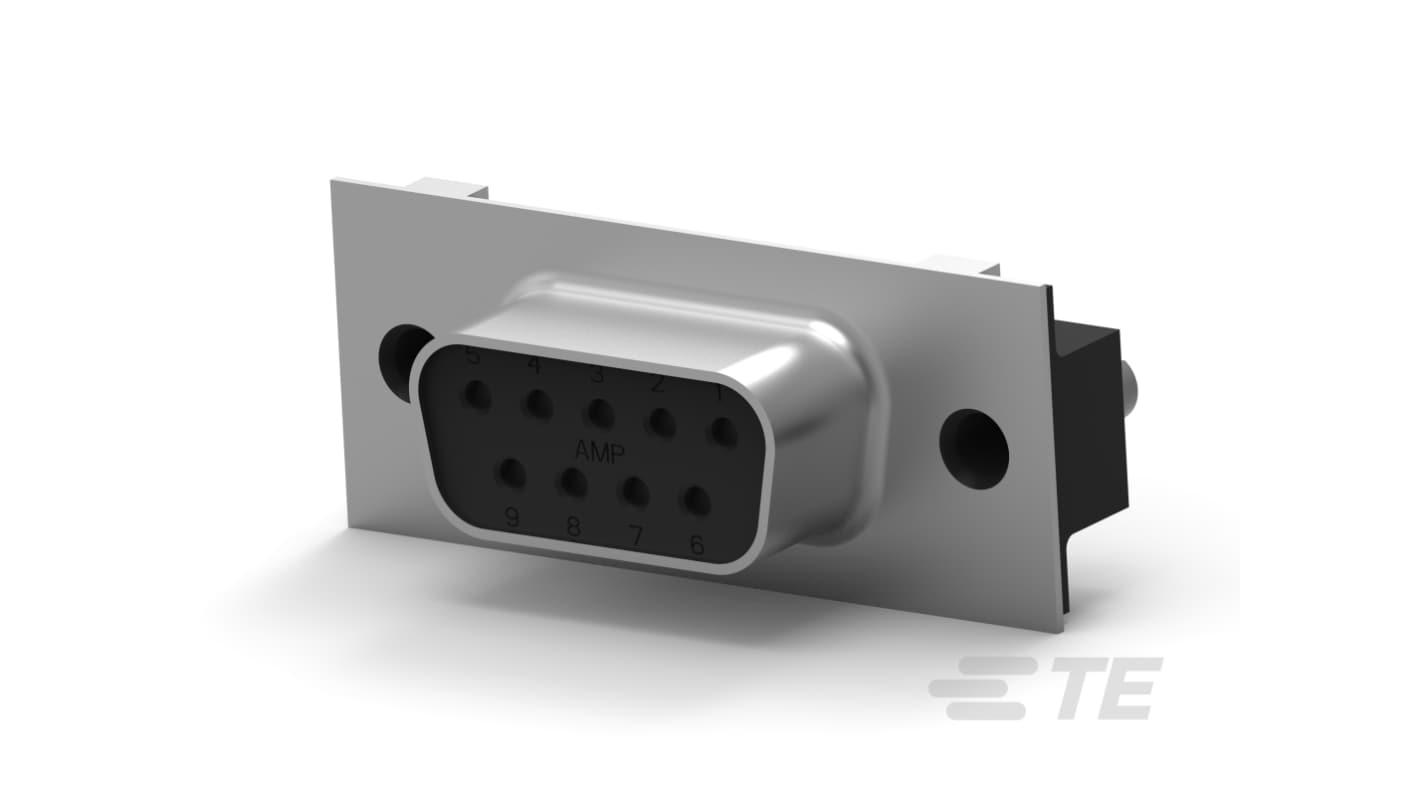

TE Connectivity 2-747 9 Way Vertical 2.74 mm Pitch Board D-Sub Connector, with 4 to 40 Retention Female
- RS Stock No.:
- 476-201
- Distrelec Article No.:
- 304-48-747
- Mfr. Part No.:
- 2-747706-0
- Brand:
- TE Connectivity
Subtotal (1 tube of 51 units)*
£180.41
(exc. VAT)
£216.49
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tube(s) | Per Tube | Per unit* |
|---|---|---|
| 1 + | £180.41 | £3.537 |
*price indicative
- RS Stock No.:
- 476-201
- Distrelec Article No.:
- 304-48-747
- Mfr. Part No.:
- 2-747706-0
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Orientation | Vertical | |
| Current | 6A | |
| Mount Type | Board | |
| Connector Gender | Female | |
| Connector Type D | D-Sub | |
| Mounting Hardware | 4 to 40 Retention | |
| D-Sub Shell Size | 1 | |
| Housing Material | Thermoplastic | |
| Minimum Operating Temperature | -55°C | |
| Termination Type | Solder | |
| Contact Gender | Female | |
| Maximum Operating Temperature | 105°C | |
| Standards/Approvals | UL E81956, UL 94V-0 | |
| Contact Plating | Gold | |
| Series | 2-747 | |
| Contact Material | Phosphor Bronze | |
| Pitch | 2.74mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Orientation Vertical | ||
Current 6A | ||
Mount Type Board | ||
Connector Gender Female | ||
Connector Type D D-Sub | ||
Mounting Hardware 4 to 40 Retention | ||
D-Sub Shell Size 1 | ||
Housing Material Thermoplastic | ||
Minimum Operating Temperature -55°C | ||
Termination Type Solder | ||
Contact Gender Female | ||
Maximum Operating Temperature 105°C | ||
Standards/Approvals UL E81956, UL 94V-0 | ||
Contact Plating Gold | ||
Series 2-747 | ||
Contact Material Phosphor Bronze | ||
Pitch 2.74mm | ||
- COO (Country of Origin):
- MX
The TE Connectivity receptacle offers an exceptional solution for board-to-board connectivity, specifically designed to meet the rigorous demands of modern electronic applications. Engineered with a compact design, it features 9 positions and a precise 2.74 mm centerline, enabling efficient space utilization on printed circuit boards. The product's robust construction, including brass components and a durable steel shell, ensures reliability in various operating conditions, making it suitable for both industrial and consumer electronics. With an operating temperature range of -55 to 105 °C, it caters to a diverse range of applications while maintaining optimal performance. The AMPLIMITE HD-20 series is tailored to facilitate seamless integration into your devices, enhancing their overall functionality and performance.
Compact 9-position design optimizes circuit space
Two rows provide efficient connection options
Reliable brass construction enhances electrical conductivity
Durable steel shell ensures long-lasting performance
Versatile operating temperature range accommodates various environments
