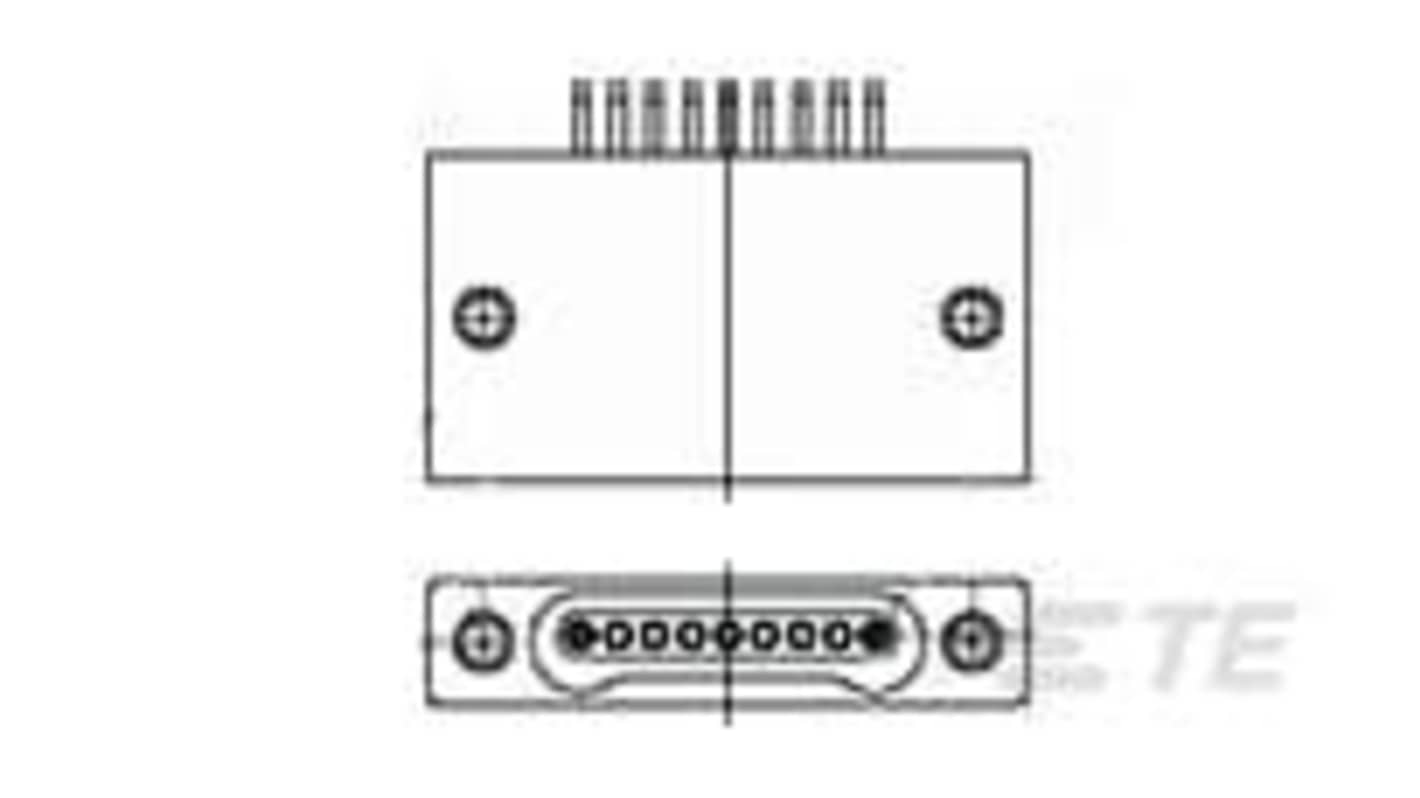

TE Connectivity 1589462-9 9 Way Board D-Sub Connector Female
- RS Stock No.:
- 503-267
- Distrelec Article No.:
- 302-70-925
- Mfr. Part No.:
- 1589462-9
- Brand:
- TE Connectivity
Subtotal (1 unit)*
£177.28
(exc. VAT)
£212.74
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 25 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £177.28 |
*price indicative
- RS Stock No.:
- 503-267
- Distrelec Article No.:
- 302-70-925
- Mfr. Part No.:
- 1589462-9
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | D-Sub Connector | |
| Number of Contacts | 9 | |
| Mount Type | Board | |
| Connector Gender | Female | |
| Connector Type D | D Connector | |
| Housing Material | Plastic | |
| Termination Type | Surface Mount | |
| Contact Gender | Female | |
| Standards/Approvals | REACH (EC) No. 1907/2006, EU ELV Directive 2000/53/EC, China RoHS 2 Directive MIIT Order No 32, 2016 | |
| Series | 1589462-9 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type D-Sub Connector | ||
Number of Contacts 9 | ||
Mount Type Board | ||
Connector Gender Female | ||
Connector Type D D Connector | ||
Housing Material Plastic | ||
Termination Type Surface Mount | ||
Contact Gender Female | ||
Standards/Approvals REACH (EC) No. 1907/2006, EU ELV Directive 2000/53/EC, China RoHS 2 Directive MIIT Order No 32, 2016 | ||
Series 1589462-9 | ||
Non Compliant
- COO (Country of Origin):
- MX
The TE Connectivity receptacle connector is expertly designed for wire-to-board applications, ensuring reliable performance with its 9-position configuration. This product stands out due to its 0.64 mm [.025 in] centreline, making it suitable for both microminiature and nanominiature D connectors. Its robust construction guarantees durability, while the surface mount termination method simplifies installation on printed circuit boards. With a focus on power applications, this connector is an essential component for any high-performance electronic setup, perfectly blending functionality with efficiency. The product’s thoughtful engineering creates a dependable connection in various demanding environments, assuring users of its quality and performance. Notably, its compatibility with existing systems makes it an ideal choice for both developers and manufacturers seeking reliability in their designs.
Designed for power applications, ensuring optimal performance
Offers a secure connection with 9 precision positions
Surface mount installation provides streamlined integration onto PCBs
Constructed from high-quality materials for enhanced durability
Optimised for both microminiature and nanominiature configurations
Low halogen content ensures adherence to environmental standards
Ideal for use in diverse electronic environments, fostering versatility
Built for easy assembly, simplifying the manufacturing process
