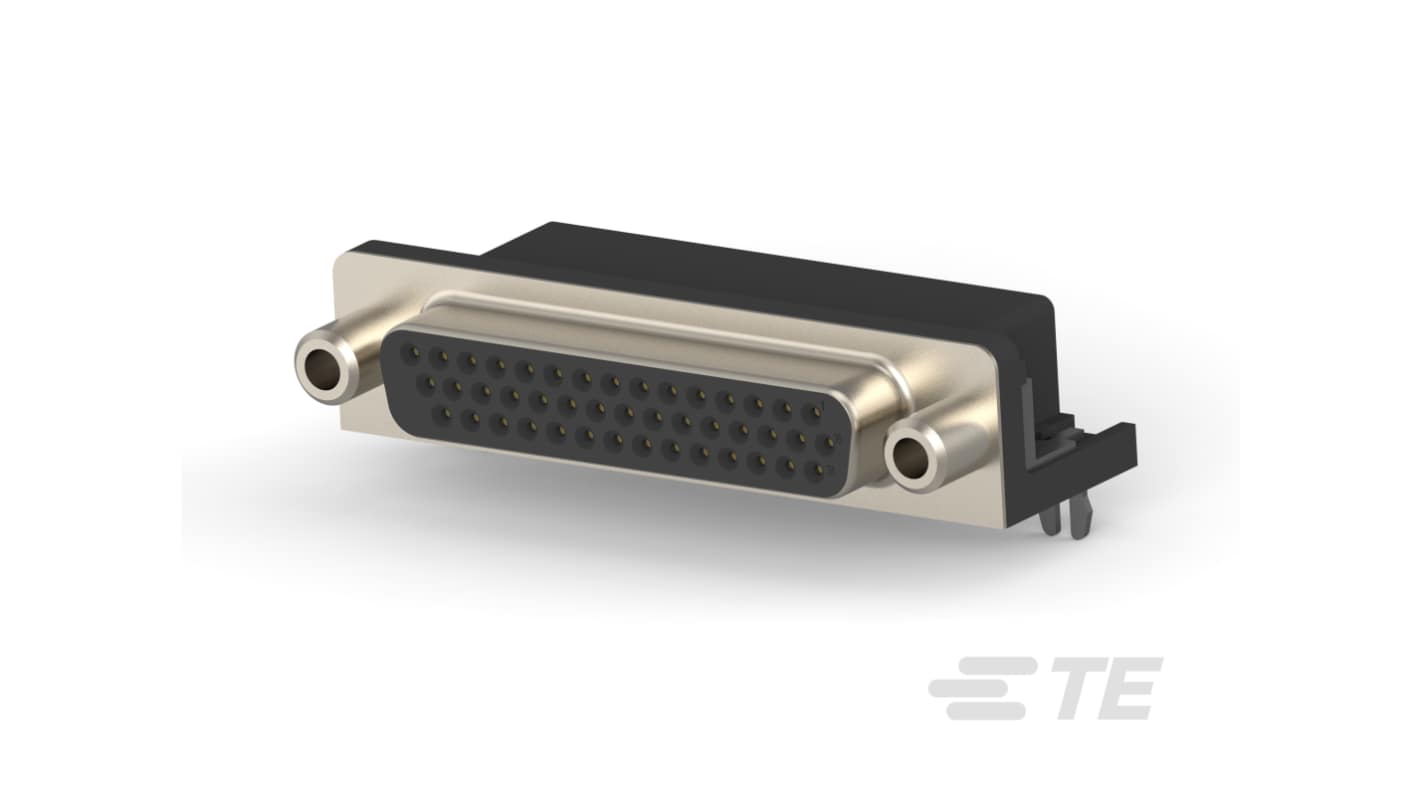

TE Connectivity 23117 44 Way Right Angle 2.29 mm Pitch Board D-Sub Connector, with 4 to 40 UNC Female

View all D Sub Connectors

Subtotal (1 tray of 20 units)*

£167.11

(exc. VAT)

£200.53

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 09 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tray(s)
Per Tray
Per unit*
1 +£167.11£8.356

*price indicative

D-Sub-Backshells
D Sub Backshells
Don't forget D Sub Backshells!
Shop D Sub Backshells now
RS Stock No.:
481-966
Distrelec Article No.:
304-49-762
Mfr. Part No.:
2311770-1
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Number of Contacts

44

Product Type

D-Sub Connector

Orientation

Right Angle

Current

3A

Mount Type

Board

Connector Gender

Female

Connector Type D

D-Sub

D-Sub Shell Size

3

Mounting Hardware

4 to 40 UNC

Housing Material

Fibreglass Reinforced Polybutylene Terephthalate

Termination Type

Solder

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

85°C

Contact Gender

Female

Standards/Approvals

No

Series

23117

Pitch

2.29mm

COO (Country of Origin):
CN
The TE Connectivity Receptacle wire-to-board connector is engineered for robust connection in a compact size, perfect for applications requiring multiple positions without sacrificing space. With a standard profile and right-angle design, this connector seamlessly integrates into PCB layouts, offering a reliable interface for signal transmission. Its unique three-row arrangement accommodates 44 positions, while the 2.29 mm centreline spacing ensures efficient use of board real estate. Crafted from high-quality PBT GF, the housing guarantees durability against varied operating conditions. Designed to withstand temperatures from -55 °C to 85 °C, this connector supports a range of applications, especially in environments demanding reliable performance. The advanced PCB mount retention mechanisms and mating retention features ensure that connections remain secure, thus minimising the risk of failure.

Optimised for wire to board applications offering versatility

Round contact shape for enhanced connectivity

PBT GF housing material provides excellent thermal and mechanical properties

Right angle orientation reduces board space while maintaining access

Designed with built in PCB mount retention mechanisms for stability

Configured to accommodate through hole soldering methods for easy installation

Offers a higher current rating supporting demanding electrical loads

Exceeds RoHS compliance standards ensuring safety and environmental responsibility
