TE Connectivity 44 Way Right Angle PCB D-sub Connector Receptacle, 2.29mm Pitch, with Boardlock
- RS Stock No.:
- 274-8582
- Mfr. Part No.:
- 2311770-2
- Brand:
- TE Connectivity
Bulk discount available
Subtotal (1 tray of 50 units)*
£619.90
(exc. VAT)
£743.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,350 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tray* |
|---|---|---|
| 50 - 50 | £12.398 | £619.90 |
| 100 - 450 | £11.902 | £595.10 |
| 500 - 950 | £11.445 | £572.25 |
| 1000 - 2350 | £11.021 | £551.05 |
| 2400 + | £10.627 | £531.35 |
*price indicative
- RS Stock No.:
- 274-8582
- Mfr. Part No.:
- 2311770-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 44 | |
| Gender | Receptacle | |
| Body Orientation | Right Angle | |
| Mounting Type | PCB Mount | |
| Pitch | 2.29mm | |
| Mounting Hardware | Boardlock | |
| D-Sub Shell Size | S3 | |
| Termination Method | Solder, Through Hole | |
| Current Rating | 3A | |
| Housing Material | PBT GF20 | |
| Length | 53.04mm | |
| Width | 12.55mm | |
| Depth | 21.8mm | |
| Dimensions | 53.04 x 12.55 x 21.8mm | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -55°C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 44 | ||
Gender Receptacle | ||
Body Orientation Right Angle | ||
Mounting Type PCB Mount | ||
Pitch 2.29mm | ||
Mounting Hardware Boardlock | ||
D-Sub Shell Size S3 | ||
Termination Method Solder, Through Hole | ||
Current Rating 3A | ||
Housing Material PBT GF20 | ||
Length 53.04mm | ||
Width 12.55mm | ||
Depth 21.8mm | ||
Dimensions 53.04 x 12.55 x 21.8mm | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -55°C | ||
- COO (Country of Origin):
- CN

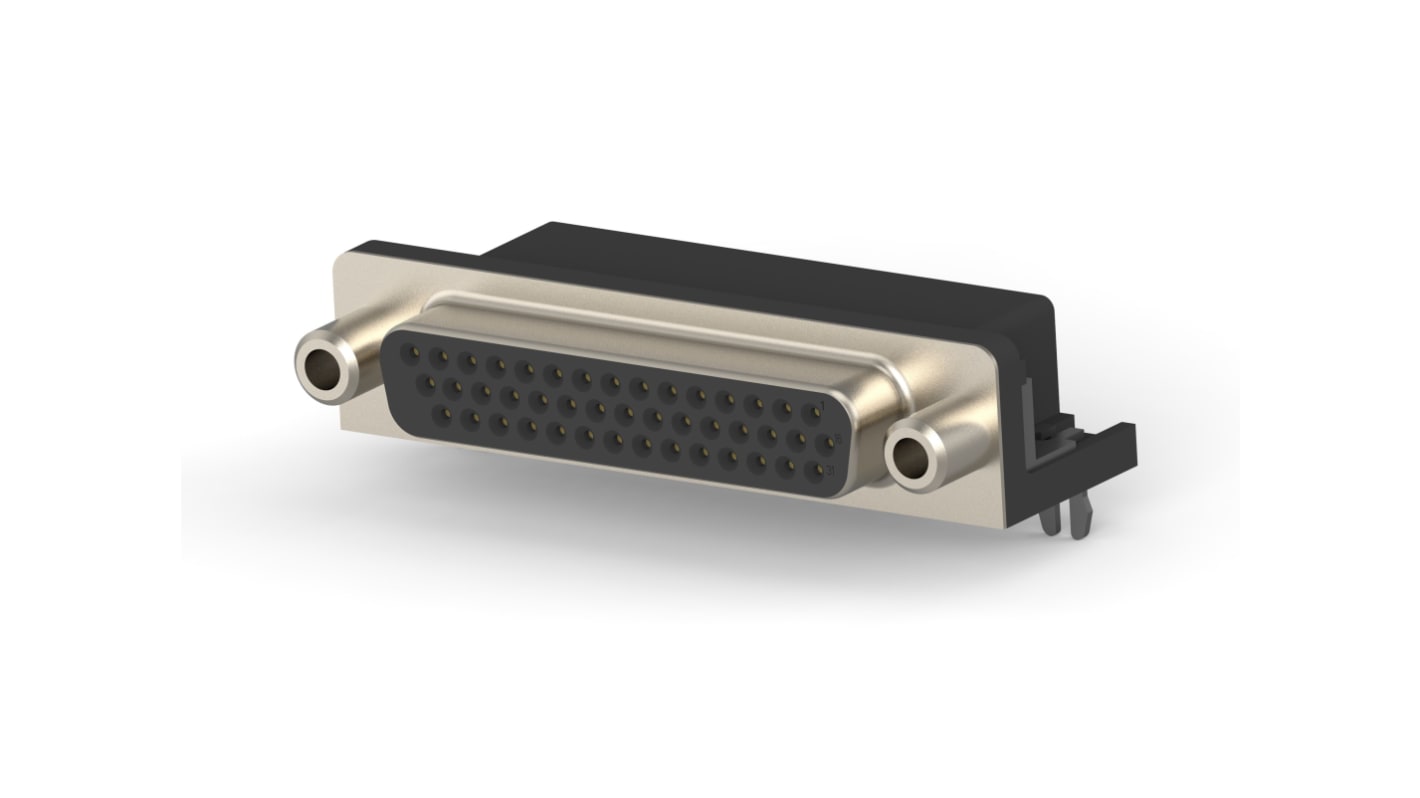

The TE Connectivity receptacle has wire to board connector system, that comes with 44 number of positions and three number of rows. PCB Mount orientation is right angle and black in color.
Round contact shape
EU RoHS compliant
EU RoHS compliant
