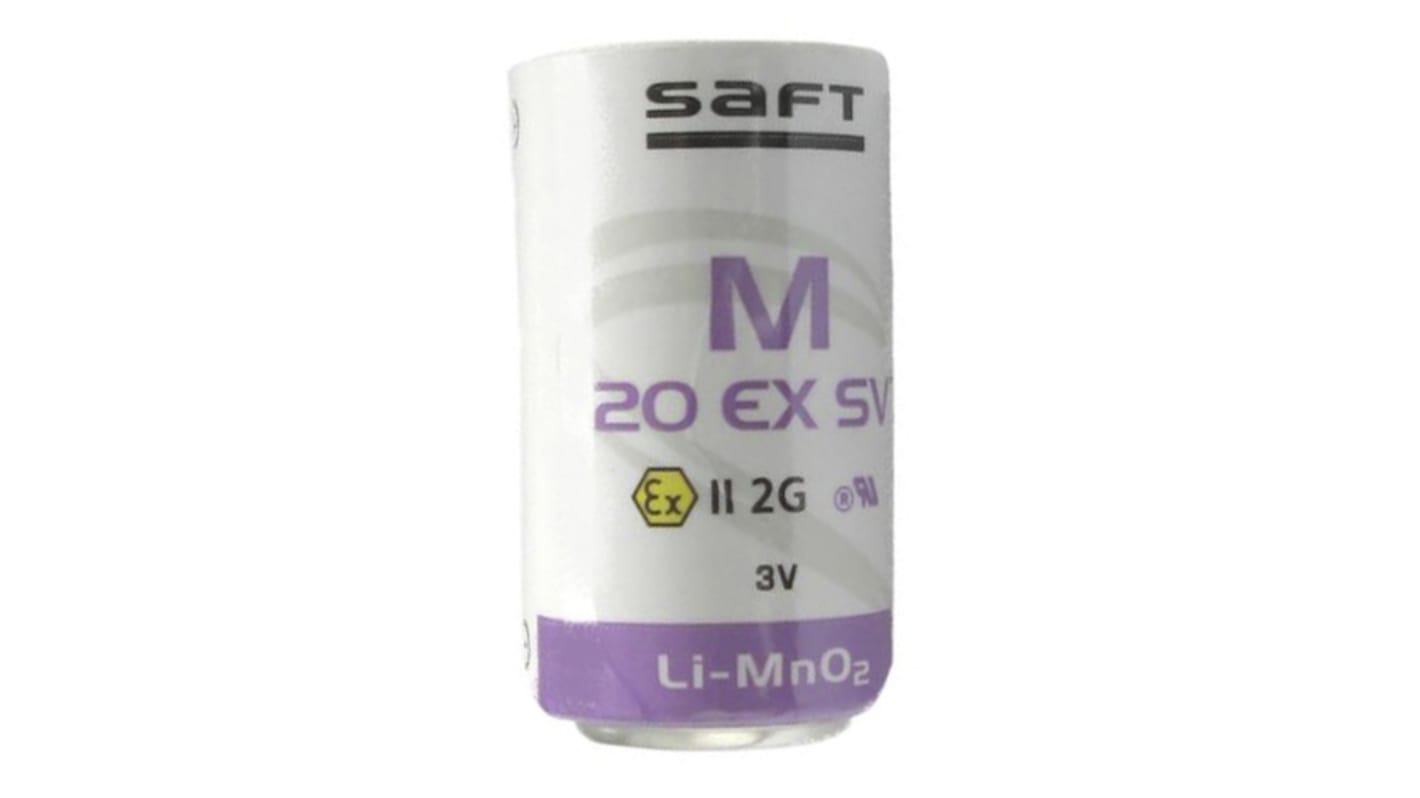

Saft M 20 EX SV 3 V Lithium Manganese Dioxide D Battery
- RS Stock No.:
- 860-2812
- Mfr. Part No.:
- M20 EX SV
- Brand:
- Saft
Subtotal (1 unit)*
£53.14
(exc. VAT)
£63.77
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 4 unit(s) ready to ship
- Plus 4 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £53.14 |
*price indicative
- RS Stock No.:
- 860-2812
- Mfr. Part No.:
- M20 EX SV
- Brand:
- Saft
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Saft | |
| Series | M 20 EX SV | |
| Product Type | D Battery | |
| Chemistry | Lithium Manganese Dioxide | |
| Nominal Voltage | 3V | |
| IEC Code | IEC 60079-0, IEC 60079-11 | |
| Battery Capacity | 12.4Ah | |
| Termination Type | Standard | |
| Weight | 115g | |
| Diameter | 34.2mm | |
| Standards/Approvals | No | |
| Height | 61.5mm | |
| Select all | ||
|---|---|---|
Brand Saft | ||
Series M 20 EX SV | ||
Product Type D Battery | ||
Chemistry Lithium Manganese Dioxide | ||
Nominal Voltage 3V | ||
IEC Code IEC 60079-0, IEC 60079-11 | ||
Battery Capacity 12.4Ah | ||
Termination Type Standard | ||
Weight 115g | ||
Diameter 34.2mm | ||
Standards/Approvals No | ||
Height 61.5mm | ||
RoHS Status: Not Applicable
- COO (Country of Origin):
- DE
Saft 3V Lithium Manganese Dioxide Cells
Saft’s M 52 EX SV cell is ideally suited for applications requiring high energy and long operating life, with stable voltage under high discharge in - 40ﾟC / + 72ﾟC environment. The cell is certified according to ATEX and IECEx for use in potentially explosive atmospheres
Spiral construction
Hermetic construction with glass-to-metal seal
Stainless steel container
Integrated safety vent
Non-corrosive electrolyte
Non-pressurized at room temperature
Restricted for transport (Class 9)
Benefits:
High drain / high pulse capability
High voltage response, stable during most of the lifetime of the application even after long dormant periods
High capacity and very high pulse capability
Low self-discharge compatible with long operating life (less than 1% after 1 year of storage at + 20ﾟC)
ATEX and IECEx certified
Superior resistance to corrosion
Low magnetic signature
Typical applications:
Smart gas meters
Gas and oil tank level monitoring
Leak detectors
Portable gas detectors
Petrochemical facilities
Mining applications
Approvals
Compliant with IEC 60086-4 safety standard
