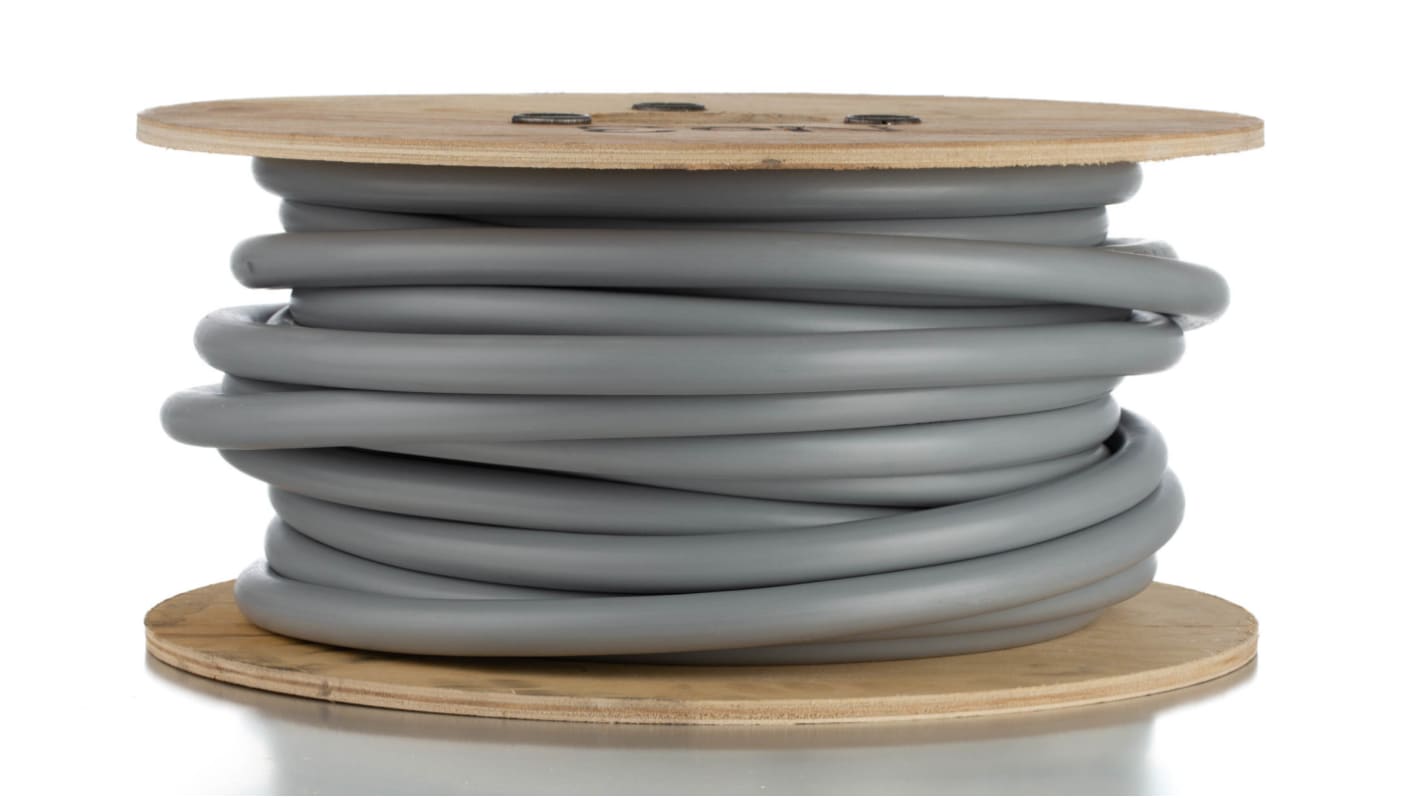

Lapp ÖLFLEX CLASSIC FD Control Cable, 25 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG
- RS Stock No.:
- 454-8720
- Distrelec Article No.:
- 304-01-026
- Mfr. Part No.:
- 0026339
- Brand:
- Lapp
Subtotal (1 reel of 25 metres)*
£586.53
(exc. VAT)
£703.84
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 27 October 2025
- Plus 3 unit(s) shipping from 23 January 2026
- Plus 999,999,994 unit(s) shipping from 02 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £586.53 | £23.461 |
*price indicative
- RS Stock No.:
- 454-8720
- Distrelec Article No.:
- 304-01-026
- Mfr. Part No.:
- 0026339
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC FD | |
| Number of Cores | 25 | |
| Cross Sectional Area | 1 mm² | |
| American Wire Gauge | 17 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Screen Type | Unscreened | |
| Outer Diameter | 17.8mm | |
| Minimum Bend Radius | 4 x Diameter | |
| Length | 25m | |
| Voltage Rating | 500 V | |
| Standards Met | CE | |
| CPR Certification | Eca | |
| Fire Behaviour | Flame Retardant | |
| Maximum Operating Temperature | +80°C | |
| Insulation Material | PVC | |
| Drain Wire | Yes | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC FD | ||
Number of Cores 25 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 17 AWG | ||
Conductor Material Copper | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Screen Type Unscreened | ||
Outer Diameter 17.8mm | ||
Minimum Bend Radius 4 x Diameter | ||
Length 25m | ||
Voltage Rating 500 V | ||
Standards Met CE | ||
CPR Certification Eca | ||
Fire Behaviour Flame Retardant | ||
Maximum Operating Temperature +80°C | ||
Insulation Material PVC | ||
Drain Wire Yes | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP Multicore Cable, 25 Cores, 17AWG - ÖLFLEX Series - 0026339
Use this multicore control cable from LAPP to measure and regulate transmissions in automated processes. It's highly flexible and can withstand 5 million alternating bending cycles, making it a practical choice for applications that demand continuous flexion. Thanks to a PUR (polyurethane) sheath, you can rest assured that this cable is durable and able to resist abrasion and cuts, as well as oil and UV light. This makes it tough enough for use in harsh industrial environments.
Features & Benefits
• Extra-fine wire strands made of bare copper wires (class 6) for high conductivity
• PVC core insulation resists electrical leakage and protects the integrity of the wire for a long service life
• Flame-retardant, so won't contribute to a workplace fire
• PVC core insulation resists electrical leakage and protects the integrity of the wire for a long service life
• Flame-retardant, so won't contribute to a workplace fire
Applications
• Food and beverage industries
• Robotics systems
• Machine tools
• Production and assembly lines
• Control and measurement circuits
• Robotics systems
• Machine tools
• Production and assembly lines
• Control and measurement circuits
What temperature range can this cable operate safely in?
This cable can operate safely within a temperature range of -5°C to +70°C with continuous flexing. When used in a fixed installation, the range increases to between -40°C to +80°C, making it suited to demanding industrial conditions.
Standards
VDE0295 Class 6/IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281(Cores); VDE 0245/0282 (Sheath)
