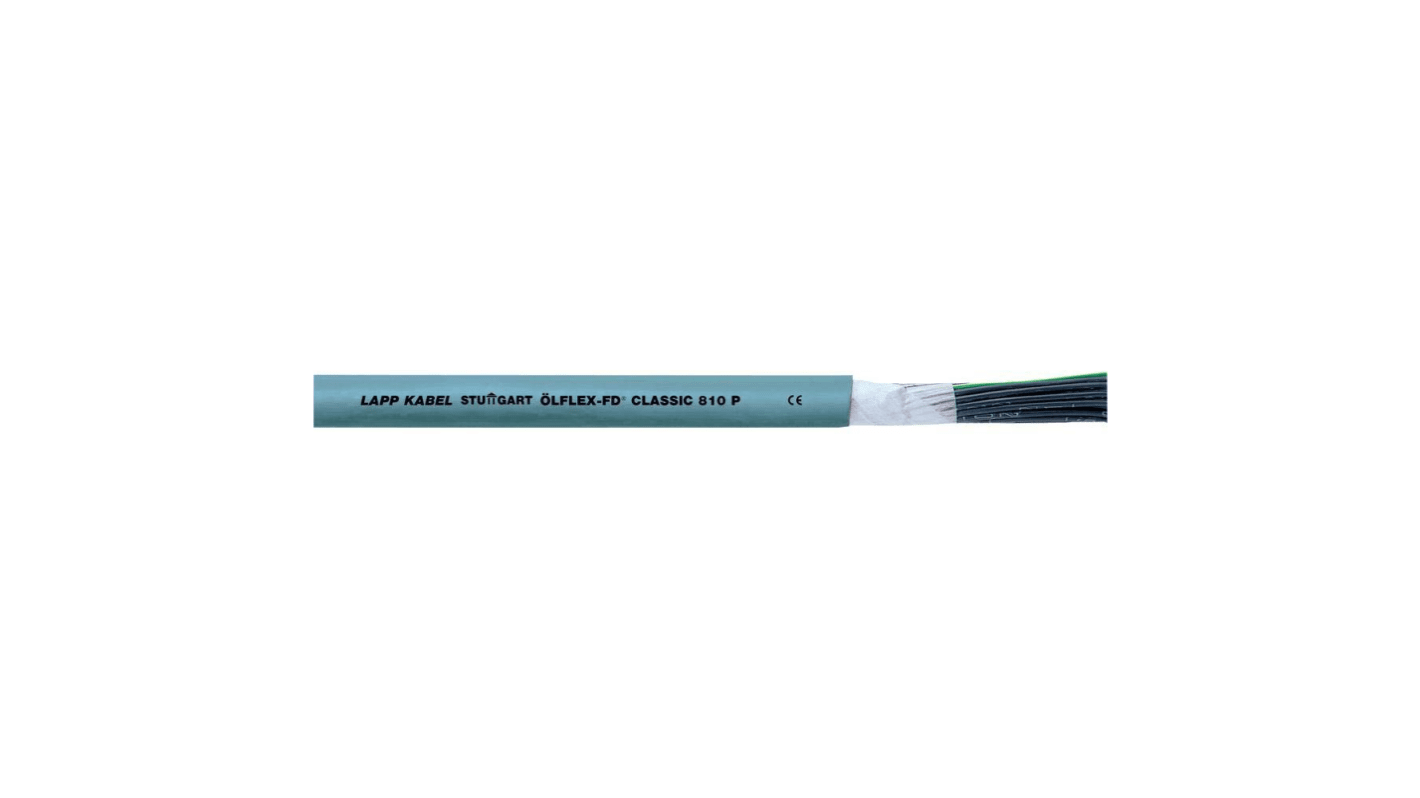

Lapp ÖLFLEX CLASSIC FD Control Cable, 12 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG

RS Stock No.:: 454-8708
Mfr. Part No.:: 0026335
Brand:: Lapp

Lapp ÖLFLEX CLASSIC FD Control Cable, 12 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG

Subtotal (1 reel of 25 metres)*

£303.85

(exc. VAT)

£364.62

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

7 unit(s) ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Reel(s)	Per Reel	Per Metre*
1 +	£303.85	£12.154

*price indicative

Alternative

This product is not currently available. Here is our alternative recommendation.

Lapp ÖLFLEX CLASSIC FD Control Cable, 12 Cores, 1.5 mm², YY, Unscreened, 25m, Grey PUR Sheath, 15 AWG

RS Stock No.: 454-8764

1 Reel of 25 Metre(s)

£456.02

(exc. VAT)

£547.22

(inc. VAT)

RS Stock No.:: 454-8708
Mfr. Part No.:: 0026335
Brand:: Lapp

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Lapp
	Series	ÖLFLEX CLASSIC FD
	Number of Cores	12
	Cross Sectional Area	1 mm²
	American Wire Gauge	17 AWG
	Conductor Material	Copper
	Sheath Material	PUR
	Sheath Colour	Grey
	Control Cable Type	YY
	Screen Type	Unscreened
	Screened/Unscreened	Unscreened
	Length	25m
	Outer Diameter	11.4mm
	Minimum Bend Radius	4 x Diameter
	Voltage Rating	500 V
	CPR Certification	Eca
	Standards Met	CE
	Maximum Operating Temperature	+80°C
	Fire Behaviour	Flame Retardant
	Oil Resistant	Yes
	Core Strands	12/1 mm²
	Minimum Operating Temperature	-40°C
	Drain Wire	Yes
	Earth Cable	No
	Insulation Material	PVC
	Cable Shape	Twisted

	Select all
	Brand Lapp
	Series ÖLFLEX CLASSIC FD
	Number of Cores 12
	Cross Sectional Area 1 mm²
	American Wire Gauge 17 AWG
	Conductor Material Copper
	Sheath Material PUR
	Sheath Colour Grey
	Control Cable Type YY
	Screen Type Unscreened
	Screened/Unscreened Unscreened
	Length 25m
	Outer Diameter 11.4mm
	Minimum Bend Radius 4 x Diameter
	Voltage Rating 500 V
	CPR Certification Eca
	Standards Met CE
	Maximum Operating Temperature +80°C
	Fire Behaviour Flame Retardant
	Oil Resistant Yes
	Core Strands 12/1 mm²
	Minimum Operating Temperature -40°C
	Drain Wire Yes
	Earth Cable No
	Insulation Material PVC
	Cable Shape Twisted

COO (Country of Origin):: DE

LAPP Control Cable, 300/500V AC Voltage Rating, 11.4mm Outer Diameter - ÖLFLEX CLASSIC FD Series - 0026335

Need to get sensor signals to your automated equipment? Link up with this control cable from LAPP. Thanks to its highly conductive copper wires, it keeps data moving without a hiccup. Installing this unit is a breeze, as its stranded conductors give it the flexibility to fit into awkward spaces. Handy numbered cores make identification a cinch during wiring. Thanks to the cable's PUR sheath, it's fully protected against impact, chemicals and oils for reliable signal transmission in harsh conditions.

Features & Benefits

• Earth conductor drains built-up charge for electrical safety
• Wide operating temperature range between -40°C and +80°C for use in demanding environments

Applications

• Renewable energy production
• Lighting systems
• Industrial robotics

How long is this control cable?

This control cable is supplied on a 25m reel, so you have enough for use in multiple jobs.

Standards

VDE0295 Class 6/IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281(Cores); VDE 0245/0282 (Sheath)
