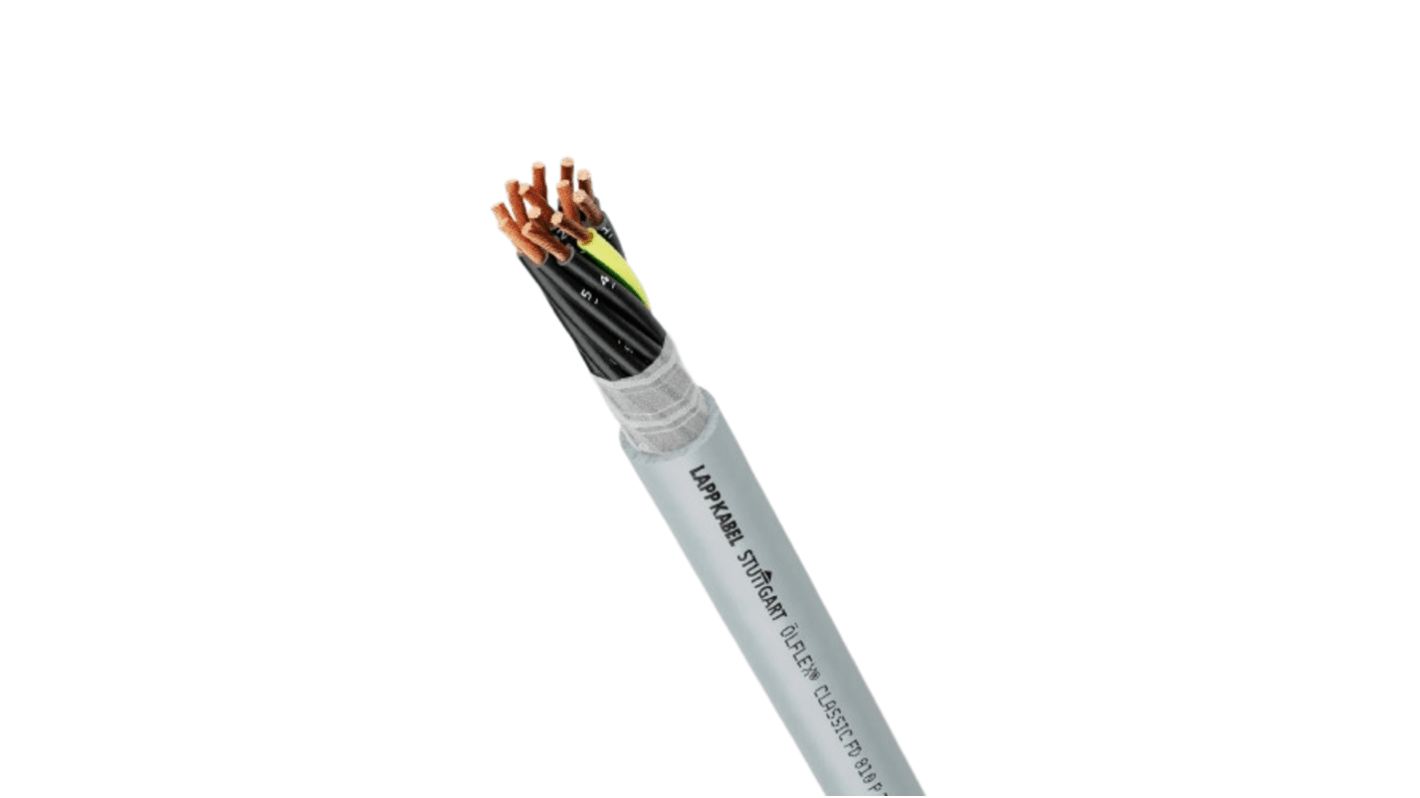

Lapp ÖLFLEX CLASSIC FD Control Cable, 5 Cores, 1.5 mm², YY, Unscreened, 25m, Grey PUR Sheath, 15 AWG
- RS Stock No.:
- 454-8742
- Mfr. Part No.:
- 0026352
- Brand:
- Lapp
Subtotal (1 reel of 25 metres)*
£175.06
(exc. VAT)
£210.07
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 3 unit(s) shipping from 27 October 2025
- Plus 7 unit(s) shipping from 05 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £175.06 | £7.002 |
*price indicative
- RS Stock No.:
- 454-8742
- Mfr. Part No.:
- 0026352
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC FD | |
| Number of Cores | 5 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 15 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PUR | |
| Sheath Colour | Grey | |
| Control Cable Type | YY | |
| Screened/Unscreened | Unscreened | |
| Screen Type | Unscreened | |
| Length | 25m | |
| Outer Diameter | 9.6mm | |
| Minimum Bend Radius | 10 x Diameter | |
| Voltage Rating | 500 V | |
| Standards Met | CE | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +80°C | |
| Fire Behaviour | Flame Retardant | |
| Drain Wire | Yes | |
| Insulation Material | PVC | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC FD | ||
Number of Cores 5 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 15 AWG | ||
Conductor Material Copper | ||
Sheath Material PUR | ||
Sheath Colour Grey | ||
Control Cable Type YY | ||
Screened/Unscreened Unscreened | ||
Screen Type Unscreened | ||
Length 25m | ||
Outer Diameter 9.6mm | ||
Minimum Bend Radius 10 x Diameter | ||
Voltage Rating 500 V | ||
Standards Met CE | ||
CPR Certification Eca | ||
Maximum Operating Temperature +80°C | ||
Fire Behaviour Flame Retardant | ||
Drain Wire Yes | ||
Insulation Material PVC | ||
Minimum Operating Temperature -40°C | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC FD Series Control Cable, 1.5mm² Cross Sectional Area, 5 Cores - 0026352
This control cable is designed for flexible applications across various demanding environments. With a core construction of 1.5mm² and five cores, it offers high versatility in power chains. The cable has a PUR outer sheath, providing excellent oil resistance and durability, making it suitable for challenging conditions.
Features & Benefits
• Highly flexible design for diverse usage scenarios
• Resistant to oil, ensuring longevity in harsh conditions
• Operates effectively within a temperature range of -40°C to +80°C
• Unscreened construction facilitates ease of installation
• Durable PUR sheath protects against abrasion and mechanical stress
• Resistant to oil, ensuring longevity in harsh conditions
• Operates effectively within a temperature range of -40°C to +80°C
• Unscreened construction facilitates ease of installation
• Durable PUR sheath protects against abrasion and mechanical stress
Applications
• Suitable for use in power chains and moving machinery
• Ideal for wet areas of machine tools and transfer lines
• Effective in electrical equipment for automation engineering
• Utilised in measuring, control, and regulating circuits
• Compatible with environments experiencing normal mechanical stress
• Ideal for wet areas of machine tools and transfer lines
• Effective in electrical equipment for automation engineering
• Utilised in measuring, control, and regulating circuits
• Compatible with environments experiencing normal mechanical stress
How many bending cycles can this cable endure?
It is designed for up to 5 million alternating bending cycles, making it suitable for dynamic applications.
What is the minimum bending radius for installation?
For flexible use, the minimum bending radius is 7.5 times the outer diameter, while for fixed installations it is 4 times the outer diameter.
Is this cable rated for high voltages?
Yes, it is rated for a nominal voltage of 300/500 V, ensuring reliability in various power applications.
What materials are used in the construction of this cable?
The cable features a bare copper conductor, PVC core insulation, and a robust PUR outer sheath, offering excellent durability and performance.
Standards
VDE0295 Class 6/IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281(Cores); VDE 0245/0282 (Sheath)
