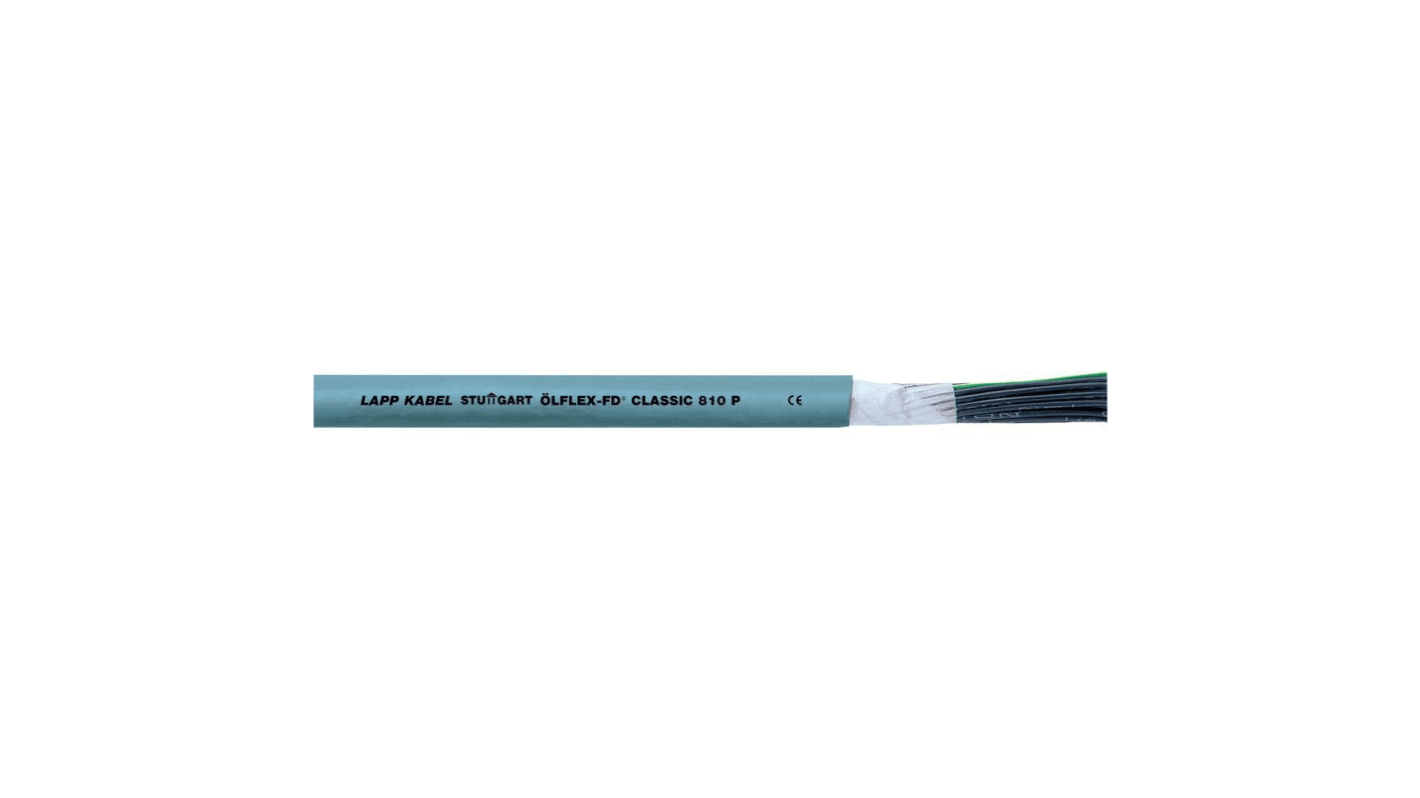

Lapp ÖLFLEX CLASSIC FD Control Cable, 5 Cores, 1 mm², YY, Unscreened, 25m, Grey PUR Sheath, 17 AWG

View all Control Cable

Subtotal (1 reel of 25 metres)*

£139.26

(exc. VAT)

£167.11

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship
  • Plus 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s)
Per Reel
Per Metre*
1 +£139.26£5.57

*price indicative

Sponsored
Lapp Glands
LAPP
Shop our LAPP Glands
Ensure optimal performance and protection for your LAPP cable by pairing it with genuine LAPP cable glands. Engineered for a perfect fit, these glands provide secure strain relief, reliable sealing, and long-lasting durability—even in demanding industrial environments.
Shop here
RS Stock No.:
454-8685
Mfr. Part No.:
0026333
Brand:
Lapp
Find similar products by selecting one or more attributes.
Select all

Brand

Lapp

Series

ÖLFLEX CLASSIC FD

Number of Cores

5

Cross Sectional Area

1 mm²

American Wire Gauge

17 AWG

Conductor Material

Copper

Sheath Material

PUR

Control Cable Type

YY

Sheath Colour

Grey

Armoured

No

Screen Type

Unscreened

Screened/Unscreened

Unscreened

Outer Diameter

8.5mm

Length

25m

Minimum Bend Radius

4 x Diameter

Voltage Rating

500 V

Standards Met

CE

CPR Certification

Eca

Fire Behaviour

Flame Retardant

Maximum Operating Temperature

+80°C

Drain Wire

Yes

Cable Shape

Round

Insulation Material

PVC

Minimum Operating Temperature

-40°C

Earth Cable

No

COO (Country of Origin):
DE

Ölflex PUR High Flex Cable for Power Chain Applications


From Lapp, the Olflex Classic FD 810 P power and control cable is designed for use in power chains. The high-flex cable is oil-resistant, as well as abrasion and notch resistant. This means it is ideal for dynamic applications that require continuous flexing, as well as being suitable for use in harsh environments. As such, it is often employed in assembly lines and robotics.

This Olflex Classic cable is made up of extra-fine copper wire strands with a PVC core insulation. It features a durable PUR outer sheath, with UV resistance and a low-adhesive surface. It can be used in dry, damp and wet interiors, under medium mechanical load.

Features and Benefits

• Mechanical Resistance
• Oil Resistant
• Suitable for Power Chains
• UV Resistant
• Flame Retardant to IEC 60332-1-2
• Non-woven wrapping

Applications

Thanks to its robust PUR sheath, the Olflex Classic is well-proven and reliable, and is suitable for many challenging applications. It is often used in;

• Machine Tools
• Transfer Lines
• Production and Assembly Lines
• Moving Machine Parts
• Control and measurement circuits

Standards

VDE 0295 / 6, VDE 0293, VDE 0245 / 0281, VDE 0245 / 0282

LAPP Control Cable, 300/500V AC Voltage Rating, 8mm Outer Diameter - ÖLFLEX® CLASSIC FD 810 PSeries - 0026333


Do you need to link automated devices in tight spaces? Reach for this LAPP control cable. With its stranded wires, the lead bends to fit into challenging areas without a hitch. As the cord's copper cores carry signals efficiently, you can rest assured it provides reliable control connections every time. Built-up charge is no trouble thanks to an integrated drain wire. The cable's abrasion-resistant PUR sheath shakes off nicks and cuts, so snags won't arise.

Features & Benefits


• Outer diameter of 8mm slips through low-profile spaces
• Numbered conductors clearly indicate connections during wiring
• 25m on the reel so you can tailor lengths to your jobs
• Handles seven million bending cycles for long-lasting connections

Applications


• Automated assembly lines
• Steel production
• Packaging industry

How far can I send signals along this cord?


This cable carries signals along lengths up to 50m, handling long-distance control connections without hassle.

Standards

VDE 0295 Class 6 / IEC 228 Cl.6 (Conductor); VDE 0293 (Colour Code); VDE 0245/0281 (Cores); VDE 0245/0282 (Sheath)
