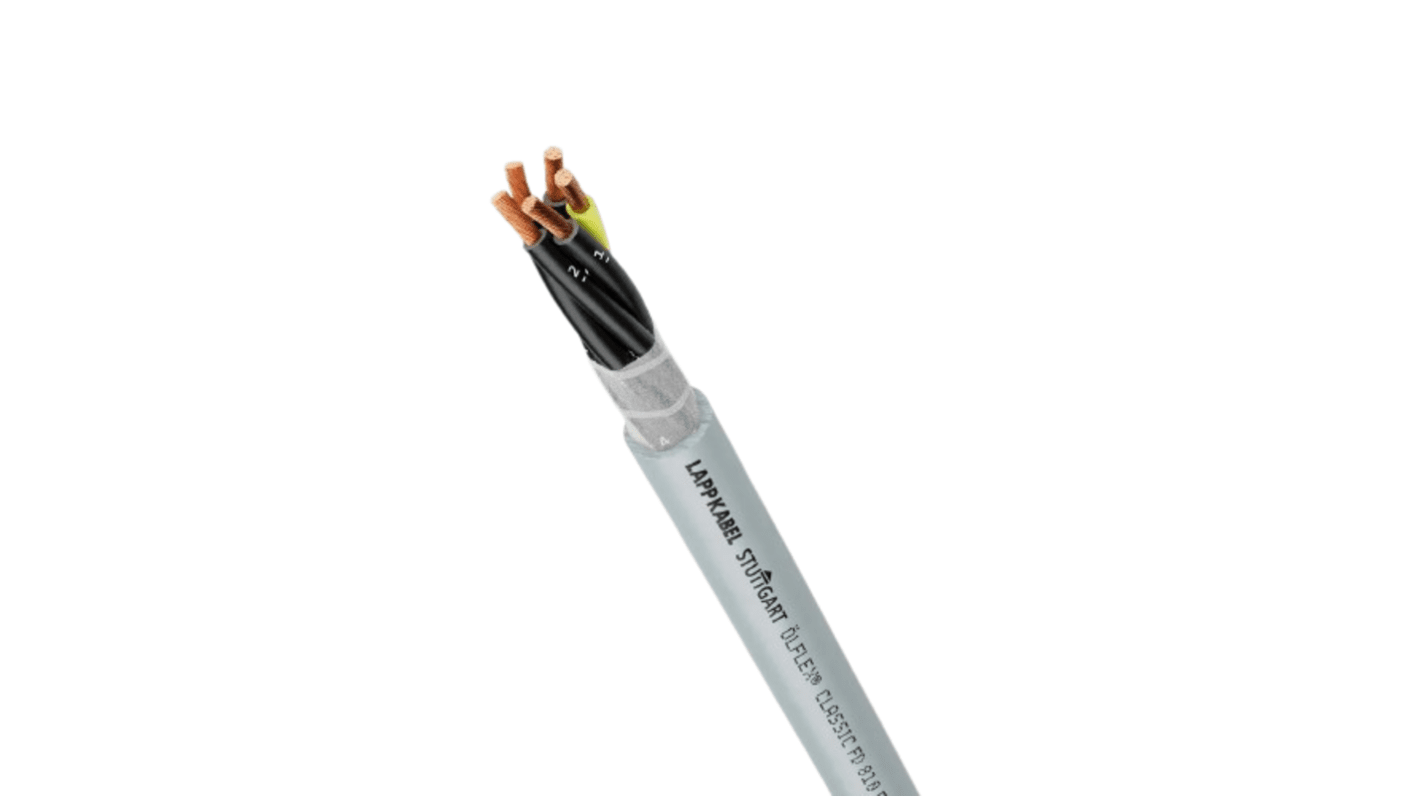

Lapp ÖLFLEX CLASSIC FD 810 Control Cable, 5 Cores, 1 mm², Unscreened, 25m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 387-7140
- Distrelec Article No.:
- 304-10-284
- Mfr. Part No.:
- 0026133
- Brand:
- Lapp
Subtotal (1 reel of 25 metres)*
£100.27
(exc. VAT)
£120.32
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 9 unit(s) shipping from 24 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 + | £100.27 | £4.011 |
*price indicative
- RS Stock No.:
- 387-7140
- Distrelec Article No.:
- 304-10-284
- Mfr. Part No.:
- 0026133
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Series | ÖLFLEX CLASSIC FD 810 | |
Number of Cores | 5 | |
Cross Sectional Area | 1 mm² | |
American Wire Gauge | 18 AWG | |
Conductor Material | Copper | |
Sheath Material | PVC | |
Sheath Colour | Grey | |
Screened/Unscreened | Unscreened | |
Length | 25m | |
Minimum Bend Radius | 7.5 x D | |
Outer Diameter | 8.5mm | |
Voltage Rating | 500 V | |
CPR Certification | Eca | |
Maximum Operating Temperature | +70°C | |
Cable Shape | Multicore | |
Core Strands | 56/34 | |
Earth Cable | Yes | |
Insulation Material | PVC | |
Oil Resistant | Yes | |
Minimum Operating Temperature | 0°C | |
Select all | ||
---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC FD 810 | ||
Number of Cores 5 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 25m | ||
Minimum Bend Radius 7.5 x D | ||
Outer Diameter 8.5mm | ||
Voltage Rating 500 V | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Cable Shape Multicore | ||
Core Strands 56/34 | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Minimum Operating Temperature 0°C | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC FD 810 Series Control Cable, 5 Number of Cores, 1mm² Cross-Sectional Area - 0026133
This control cable is a highly flexible solution designed for various automation tasks. It features a round shape with an outer diameter of 8.5mm and comprises 5 cores, each with a cross-sectional area of 1mm². The cable is equipped with PVC core insulation and a PVC outer sheath, making it suitable for both fixed installations and flexible use up to 70°C.
Features & Benefits
• Designed for 5 million bending cycles for durability
• Flame-retardant to enhance safety in installations
• Low particle emission ideal for moving use
• Suitable for damp or wet environments with specified UV protection
• Flame-retardant to enhance safety in installations
• Low particle emission ideal for moving use
• Suitable for damp or wet environments with specified UV protection
Applications
• Used in assembly and production lines for control and measuring circuits
• Applicable in moving machine parts within power chains
• Ideal for environments with occasional exposure to moisture
• Suitable for installation in electrical and mechanical equipment
• Applicable in moving machine parts within power chains
• Ideal for environments with occasional exposure to moisture
• Suitable for installation in electrical and mechanical equipment
What is the maximum length for a fixed installation?
The maximum length for fixed installation is usually determined by the installation conditions, but it is advised to follow the minimum bend radius of 4 times the outer diameter during installation.
Is this cable suitable for outdoor applications?
Yes, it can be used outdoors, provided it is within the operating temperature range and is UV-protected.
How does the PVC sheath enhance the cable's performance?
The PVC sheath not only provides insulation but also protects against moisture and certain chemicals, increasing the cables lifespan in various environments.
What is the significance of the unshielded design?
The unscreened design allows for easier handling and installation, particularly in applications where electromagnetic interference is not a concern.
Standards
VED 0295, Part 6
