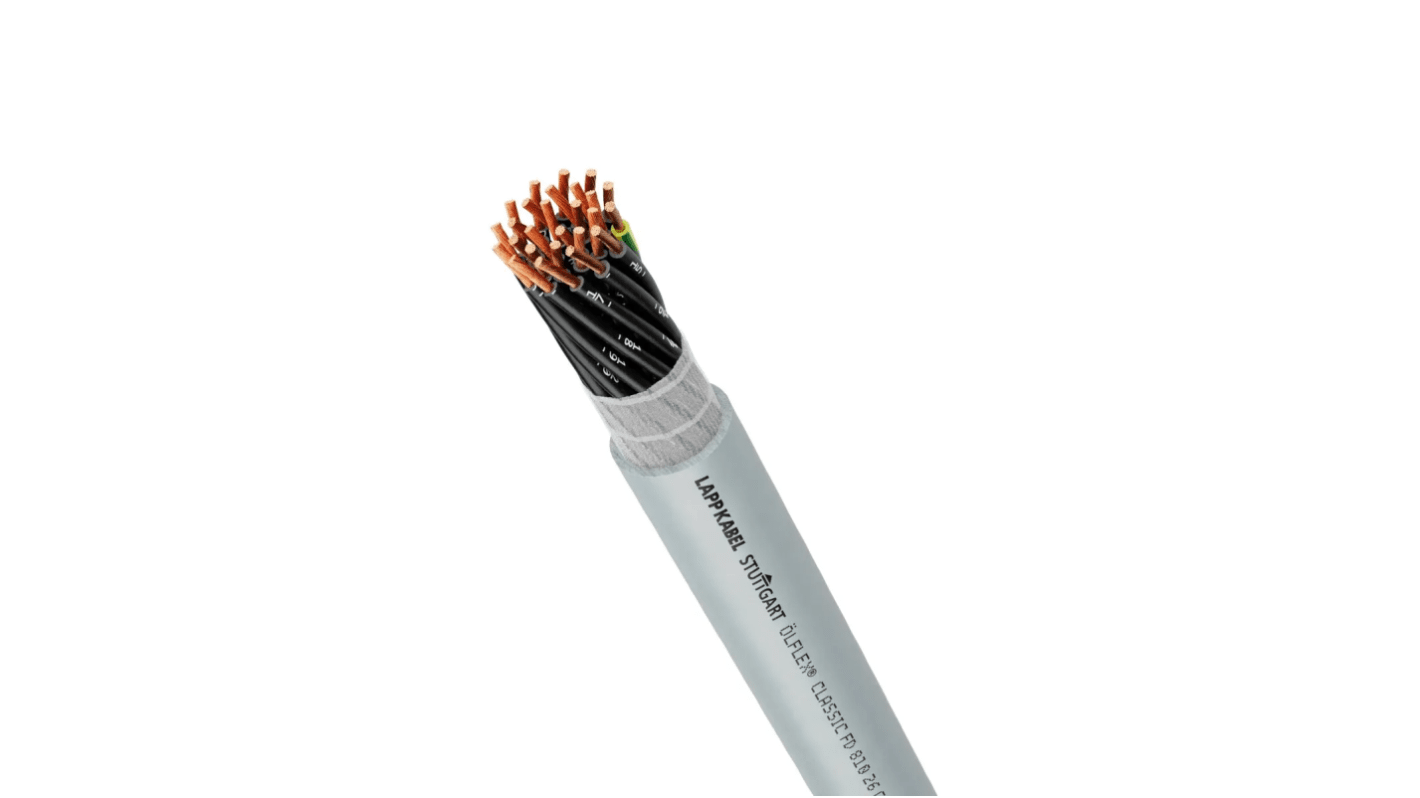

Lapp ÖLFLEX CLASSIC FD 810 Control Cable, 25 Cores, 1 mm², Unscreened, 25m, Grey PVC Sheath, 18 AWG
- RS Stock No.:
- 387-6967
- Mfr. Part No.:
- 0026139
- Brand:
- Lapp
Subtotal (1 reel of 25 metres)*
£480.68
(exc. VAT)
£576.82
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 28 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £480.68 | £19.227 |
*price indicative
- RS Stock No.:
- 387-6967
- Mfr. Part No.:
- 0026139
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC FD 810 | |
| Number of Cores | 25 | |
| Cross Sectional Area | 1 mm² | |
| American Wire Gauge | 18 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 25m | |
| Outer Diameter | 17.8mm | |
| Minimum Bend Radius | 15 x D | |
| Voltage Rating | 500 V | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Insulation Material | PVC | |
| Cable Shape | Multicore | |
| Minimum Operating Temperature | 0°C | |
| Oil Resistant | Yes | |
| Core Strands | 56/34 | |
| Earth Cable | Yes | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC FD 810 | ||
Number of Cores 25 | ||
Cross Sectional Area 1 mm² | ||
American Wire Gauge 18 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 25m | ||
Outer Diameter 17.8mm | ||
Minimum Bend Radius 15 x D | ||
Voltage Rating 500 V | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Insulation Material PVC | ||
Cable Shape Multicore | ||
Minimum Operating Temperature 0°C | ||
Oil Resistant Yes | ||
Core Strands 56/34 | ||
Earth Cable Yes | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC FD 810 Series Control Cable, 1mm² Cross Sectional Area, 25 Cores - 0026139
This control cable is designed for versatile applications in the automation and mechanical sectors. With a length of 25m and a round shape, it includes 25 cores with a cross-sectional area of 1mm². The cable features a durable PVC outer sheath and bare copper conductors, accommodating various environments and ensuring reliable operation in measuring, control, and regulating circuits.
Features & Benefits
• Highly flexible design ensures ease of installation
• Low particle emission suitable for power chain use
• Rated for 300/500 V AC, providing robust electrical performance
• Flame-retardant properties according to IEC 60332-1-2 standards
• Capable of enduring up to 5 million bending cycles
• Low particle emission suitable for power chain use
• Rated for 300/500 V AC, providing robust electrical performance
• Flame-retardant properties according to IEC 60332-1-2 standards
• Capable of enduring up to 5 million bending cycles
Applications
• Utilised in assembly and production lines for effective operation
• Suitable for powering chain where flexibility is vital
• Ideal for use in environments with damp or wet conditions
• Amendable for outdoor use with UV protection within specified temperatures
• Suitable for powering chain where flexibility is vital
• Ideal for use in environments with damp or wet conditions
• Amendable for outdoor use with UV protection within specified temperatures
What materials are used for the construction of the cable?
The cable consists of bare copper conductors, providing excellent conductivity, while the core insulation and outer sheath are made from durable PVC to ensure both flexibility and resistance to environmental conditions.
What is the minimum bend radius for this cable?
For flexible applications, the minimum bend radius should be 7.5 times the outer diameter, while for fixed installations, it is 4 times the outer diameter. This ensures the integrity and performance of the cable under varying conditions.
How does this cable perform in high-temperature environments?
It is designed to operate effectively in temperatures ranging from 0°C to +70°C in flexible applications. The PVC insulation contributes to its high-temperature stability while maintaining flexibility for dynamic use.
Standards
VED 0295, Part 6
