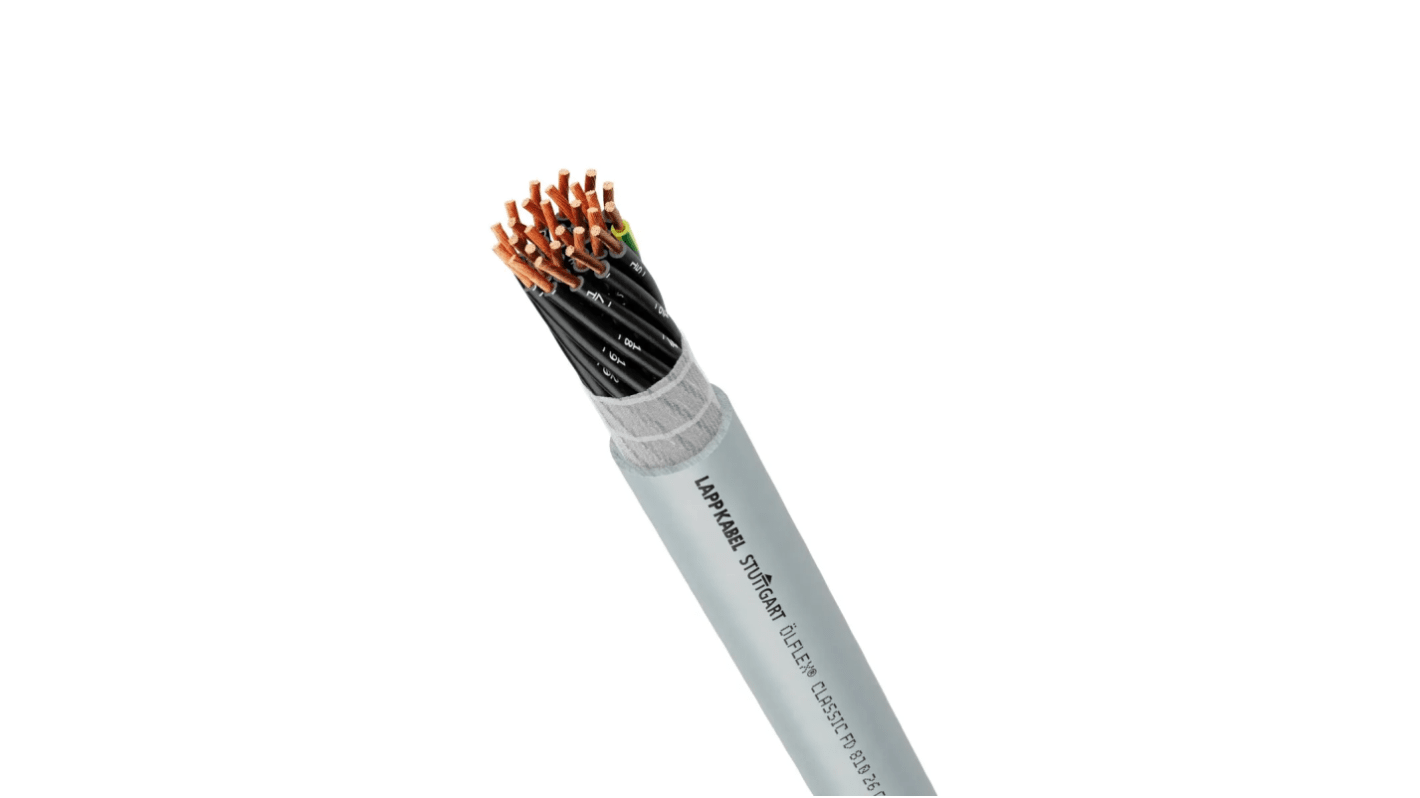

Lapp ÖLFLEX CLASSIC FD 810 Control Cable, 25 Cores, 1.5 mm², Unscreened, 25m, Grey PVC Sheath, 16 AWG
- RS Stock No.:
- 387-7027
- Mfr. Part No.:
- 0026157
- Brand:
- Lapp
Subtotal (1 reel of 25 metres)*
£712.72
(exc. VAT)
£855.26
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 1 unit(s) shipping from 19 December 2025
- Plus 1 unit(s) shipping from 09 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 + | £712.72 | £28.509 |
*price indicative
- RS Stock No.:
- 387-7027
- Mfr. Part No.:
- 0026157
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Series | ÖLFLEX CLASSIC FD 810 | |
| Number of Cores | 25 | |
| Cross Sectional Area | 1.5 mm² | |
| American Wire Gauge | 16 AWG | |
| Conductor Material | Copper | |
| Sheath Material | PVC | |
| Sheath Colour | Grey | |
| Screened/Unscreened | Unscreened | |
| Length | 25m | |
| Outer Diameter | 20mm | |
| Minimum Bend Radius | 20 x D | |
| Voltage Rating | 500 V | |
| CPR Certification | Eca | |
| Maximum Operating Temperature | +70°C | |
| Minimum Operating Temperature | 0°C | |
| Core Strands | 84/34 | |
| Earth Cable | Yes | |
| Insulation Material | PVC | |
| Oil Resistant | Yes | |
| Cable Shape | Multicore | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Series ÖLFLEX CLASSIC FD 810 | ||
Number of Cores 25 | ||
Cross Sectional Area 1.5 mm² | ||
American Wire Gauge 16 AWG | ||
Conductor Material Copper | ||
Sheath Material PVC | ||
Sheath Colour Grey | ||
Screened/Unscreened Unscreened | ||
Length 25m | ||
Outer Diameter 20mm | ||
Minimum Bend Radius 20 x D | ||
Voltage Rating 500 V | ||
CPR Certification Eca | ||
Maximum Operating Temperature +70°C | ||
Minimum Operating Temperature 0°C | ||
Core Strands 84/34 | ||
Earth Cable Yes | ||
Insulation Material PVC | ||
Oil Resistant Yes | ||
Cable Shape Multicore | ||
- COO (Country of Origin):
- DE
LAPP ÖLFLEX CLASSIC FD 810 Series Control Cable, 25 Core Cable, 1.5mm² Cross-Sectional Area - 0026157
This control cable is a versatile solution designed for various applications in the electrical and automation sectors. Featuring 25 cores with a cross-sectional area of 1.5mm², it provides robust performance in power chains and moving machinery. The round shape and grey PVC outer sheath ensure durability and flexibility, making it suitable for demanding environments.
Features & Benefits
• Economic solution for power and control circuits
• Designed for up to 5 million bending cycles
• Unscreened configuration reduces installation complexity
• Oil resistant properties for challenging environments
• Rated for voltage applications up to 300/500 V AC
• Designed for up to 5 million bending cycles
• Unscreened configuration reduces installation complexity
• Oil resistant properties for challenging environments
• Rated for voltage applications up to 300/500 V AC
Applications
• Suitable for use in measuring and regulating circuits
• Ideal for assembly lines and production machinery
• Used in plant engineering and automation systems
• Appropriate for installation in both fixed and flexible situations
• Ideal for assembly lines and production machinery
• Used in plant engineering and automation systems
• Appropriate for installation in both fixed and flexible situations
What is the minimum bending radius for this control cable?
The minimum bending radius is 4 times the cable diameter for fixed applications and 7.5 times the outer diameter for flexible applications.
Can this cable be used in damp environments?
Yes, it is designed for use in damp and wet rooms, owing to its protective PVC sheath.
How well does it resist corrosion and oil exposure?
The cable features oil-resistant properties, making it suitable for environments where exposure to oil is a concern.
Standards
VED 0295, Part 6
