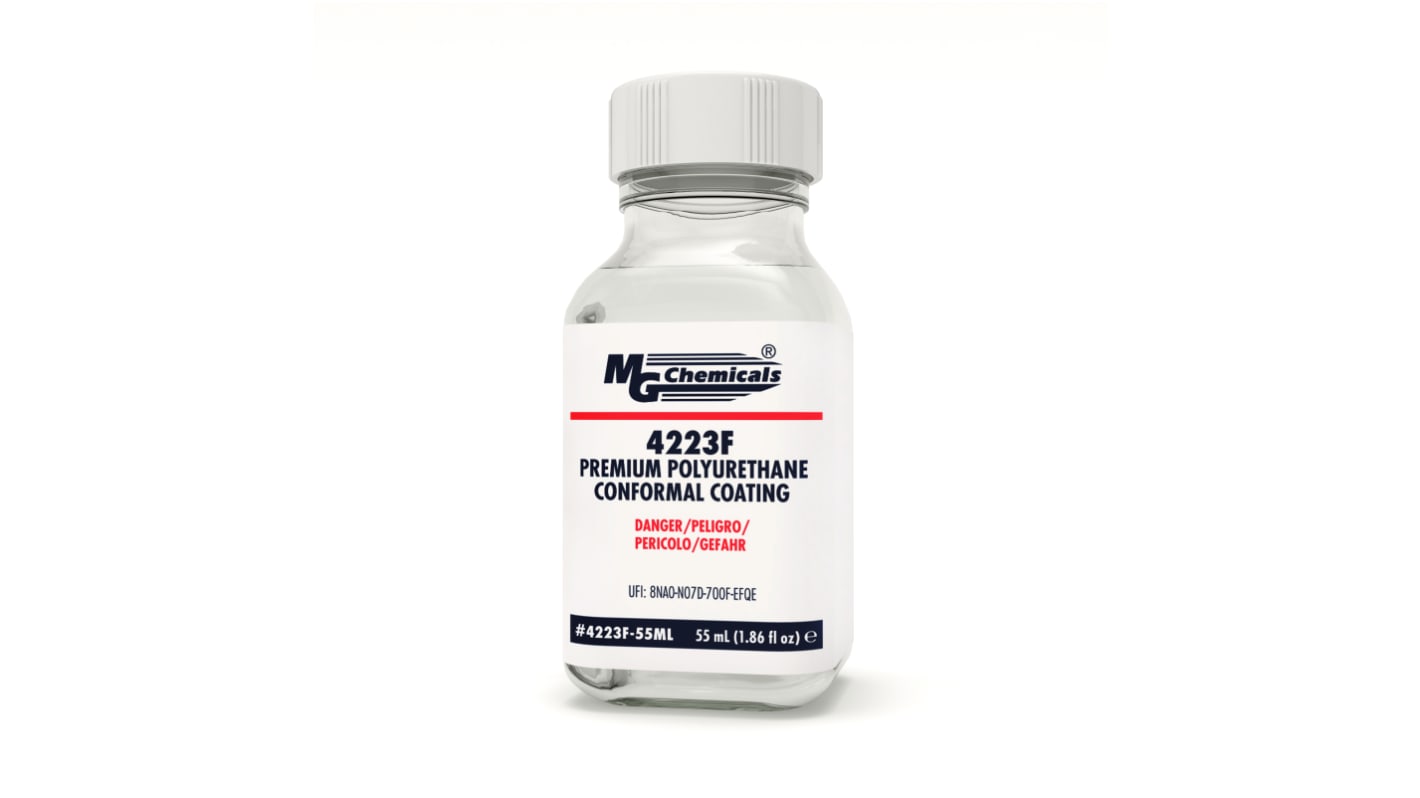

MG Chemicals Urethane Conformal Coating, 55 ml Can, -62 °C min, 125 °C max
- RS Stock No.:
- 159-259
- Mfr. Part No.:
- 4223F-55ML
- Brand:
- MG Chemicals
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 159-259
- Mfr. Part No.:
- 4223F-55ML
- Brand:
- MG Chemicals
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | MG Chemicals | |
| Package Size | 55 ml | |
| Product Type | Conformal Coating | |
| Package Type | Can | |
| Application | Conformal Coating | |
| Product Form | Liquid | |
| Base Material | Urethane | |
| Maximum Operating Temperature | 125°C | |
| Minimum Operating Temperature | -62°C | |
| Standards/Approvals | IPC-CC-830B, RoHS, UL 746E, ISO 9001:2015 | |
| Trade Name | 4223F | |
| Select all | ||
|---|---|---|
Brand MG Chemicals | ||
Package Size 55 ml | ||
Product Type Conformal Coating | ||
Package Type Can | ||
Application Conformal Coating | ||
Product Form Liquid | ||
Base Material Urethane | ||
Maximum Operating Temperature 125°C | ||
Minimum Operating Temperature -62°C | ||
Standards/Approvals IPC-CC-830B, RoHS, UL 746E, ISO 9001:2015 | ||
Trade Name 4223F | ||
- COO (Country of Origin):
- CA
The MG Chemicals Urethane Conformal Coating cures to a durable, flexible, scratch resistant and smooth finish. It is easy to apply and can be handled in 15 minutes. It cures in only 2 hours at 100 °C (212 °F). It may be removed with appropriate strippers, or soldered through for repair or rework. This PCB resin coating is considered to be one of the best conformal coatings for protecting circuit boards in chemically challenging environments. It provides strong protection against aggressive chemicals, corrosion, moisture, fungus, dirt, dust, thermal shock, abrasion, short circuit, high-voltage arcing, and static discharge
Excellent corrosion resistance
Xylene and isocyanate free
Fluoresces under UV-A light
Suitable for use with robotic coating equipment
