Amprobe ACD-10 PLUS Clamp Meter 600 A ac 600 V dc 600 V ac CAT III, RSCAL

RS Stock No.:: 794-4746
Mfr. Part No.:: ACD-10 PLUS
Brand:: Amprobe

Amprobe ACD-10 PLUS Clamp Meter 600 A ac 600 V dc 600 V ac CAT III, RSCAL

Subtotal (1 unit)*

£158.00

(exc. VAT)

£189.60

(inc. VAT)

FREE delivery for orders over £60.00

Limited stock

7 left, ready to ship

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	£158.00

*price indicative

RS Stock No.:: 794-4746
Mfr. Part No.:: ACD-10 PLUS
Brand:: Amprobe

Specifications

Technical Reference

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Amprobe
	Product Type	Clamp Meter
	Maximum AC Voltage Measurement	600V ac
	Maximum DC Voltage Measurement	600V dc
	Maximum Resistance Measurement	40MΩ
	Model Number	ACD-10 PLUS
	Resistance Measurement Accuracy	±2% + 4 Digits
	Minimum Operating Temperature	0°C
	AC Voltage Accuracy	±1.5 % rdg + 5 Digits
	Maximum Jaw Opening	26mm
	AC Current Accuracy	±1.5 % rdg + 8 Digits
	DC Voltage Accuracy	±0.3 % rdg + 4 Digits
	Clamp Meter Type	AC/DC Clamp Meter
	Maximum Operating Temperature	40°C
	Height	32mm
	Weight	139g
	Length	190mm
	Width	63mm
	Standards/Approvals	No
	Functions Measured	AC Current, AC Voltage, DC Voltage, Frequency, Resistance
	True RMS	No
	Maximum AC Current Measurement	600A ac
	Safety Category Voltage	600V
	Display Type	LCD
	Battery Type	3 V Coin Battery
	Safety Category Level	CAT III
	Power Source	Battery
	Maximum Conductor Size	26mm
	Calibrated	RSCAL

	Select all
	Brand Amprobe
	Product Type Clamp Meter
	Maximum AC Voltage Measurement 600V ac
	Maximum DC Voltage Measurement 600V dc
	Maximum Resistance Measurement 40MΩ
	Model Number ACD-10 PLUS
	Resistance Measurement Accuracy ±2% + 4 Digits
	Minimum Operating Temperature 0°C
	AC Voltage Accuracy ±1.5 % rdg + 5 Digits
	Maximum Jaw Opening 26mm
	AC Current Accuracy ±1.5 % rdg + 8 Digits
	DC Voltage Accuracy ±0.3 % rdg + 4 Digits
	Clamp Meter Type AC/DC Clamp Meter
	Maximum Operating Temperature 40°C
	Height 32mm
	Weight 139g
	Length 190mm
	Width 63mm
	Standards/Approvals No
	Functions Measured AC Current, AC Voltage, DC Voltage, Frequency, Resistance
	True RMS No
	Maximum AC Current Measurement 600A ac
	Safety Category Voltage 600V
	Display Type LCD
	Battery Type 3 V Coin Battery
	Safety Category Level CAT III
	Power Source Battery
	Maximum Conductor Size 26mm
	Calibrated RSCAL

RoHS Status: Exempt

COO (Country of Origin):: TW

Fluke Clamp Meter, 600A Maximum AC Current, 600V Maximum AC Voltage - ACD-10 PLUS

This clamp meter is a battery-powered handheld instrument designed to measure electrical parameters in installations up to industrial low-voltage levels. It performs AC current, AC and DC voltage, frequency and resistance measurements, offering portable diagnostics for electricians and maintenance technicians in environments rated to 600V CAT III.

Features and Benefits:

• Measures up to 600A ac for non-invasive current checks
• AC voltage range to 600V ac for live-circuit diagnostics
• DC voltage accuracy ±0.3% rdg +4 Digits for precise DC readings
• Resistance range to 40MΩ for continuity and insulation checks
• Frequency measurement for motor and generator analysis
• Lightweight 139g for reduced user fatigue during inspections

Applications

• Suitable for troubleshooting distribution circuits up to 600V
• Ideal for verifying AC current draw on motors and pumps
• Used for measuring DC supply rails in control panels
• Can be used for component resistance checks in field repairs
• Suitable for portable testing where Compact jaw access is required

What conductor size can be accommodated in the jaw?

The clamp accepts conductors up to 26mm in diameter.

What power source does the instrument require for field use?

It operates from a 3V button cell battery suitable for extended portable use.

How is measurement visibility provided in low light?

Readings are presented on an LCD display for clear numeric visibility.

What accuracy applies to AC current readings?

AC current measurements are specified at ±1.5% rdg +8 Digits.

Which safety category rating applies to live-work scenarios?

The tool is rated for 600V in a CAT III environment.

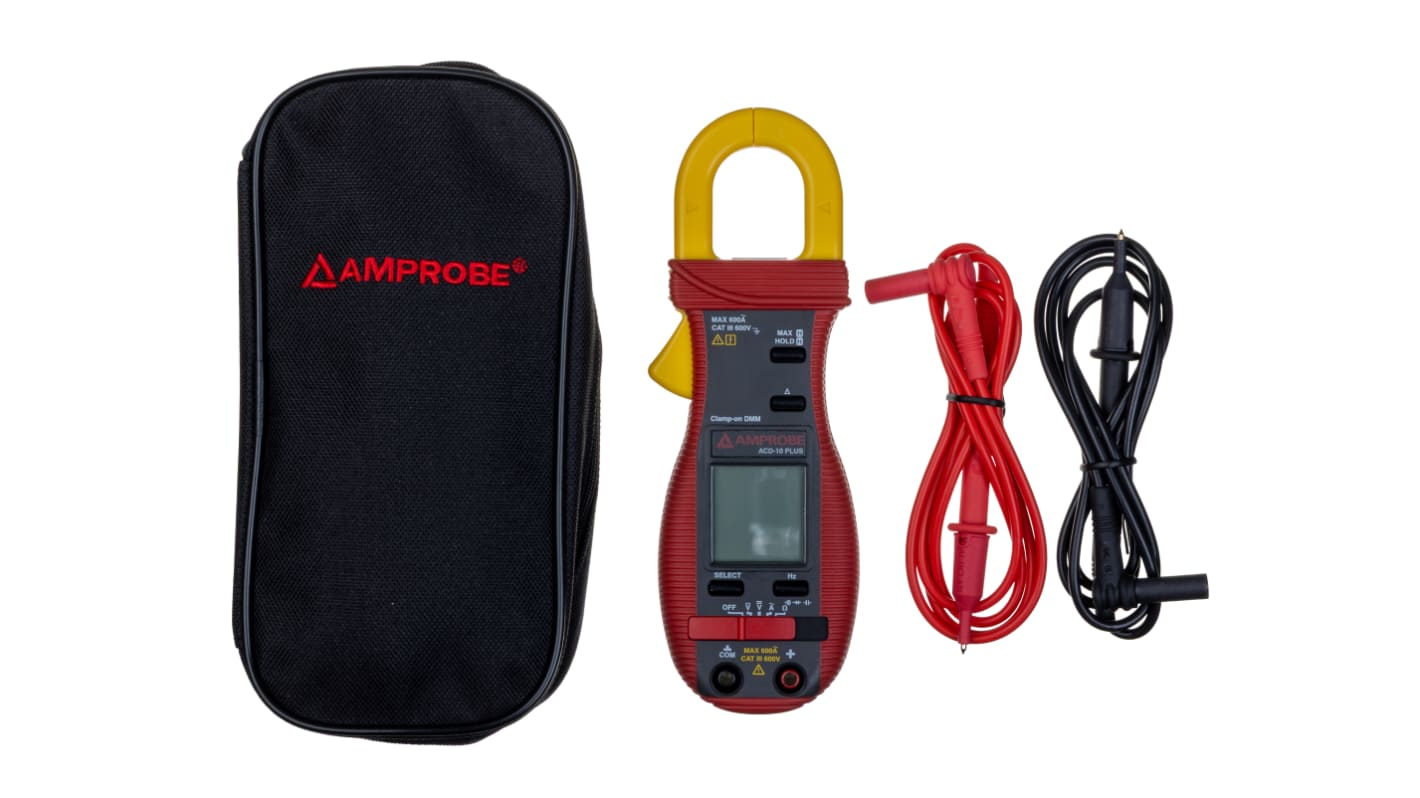

Supplied with

Test leads, battery installed, soft carrying pouch and users manual
