Eaton 3 Position 45°, 690V ac, 20A, Toggle Actuator
- RS Stock No.:
- 269-9708
- Mfr. Part No.:
- 207095 T0-2-15907/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£40.47
(exc. VAT)
£48.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 1 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £40.47 |
*price indicative
- RS Stock No.:
- 269-9708
- Mfr. Part No.:
- 207095 T0-2-15907/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller Series T0 | |
| Normal State Configuration | NO/NC | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V ac | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45° | |
| Length | 137mm | |
| Width | 80mm | |
| Depth | 137mm | |
| Actuator Type | Toggle | |
| Mounting Type | Surface Mount | |
| Dimensions | 137 x 80 x 137mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller Series T0 | ||
Normal State Configuration NO/NC | ||
Maximum Current 20A | ||
Maximum Voltage 690V ac | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Angle of Throw 45° | ||
Length 137mm | ||
Width 80mm | ||
Depth 137mm | ||
Actuator Type Toggle | ||
Mounting Type Surface Mount | ||
Dimensions 137 x 80 x 137mm | ||
- COO (Country of Origin):
- GB

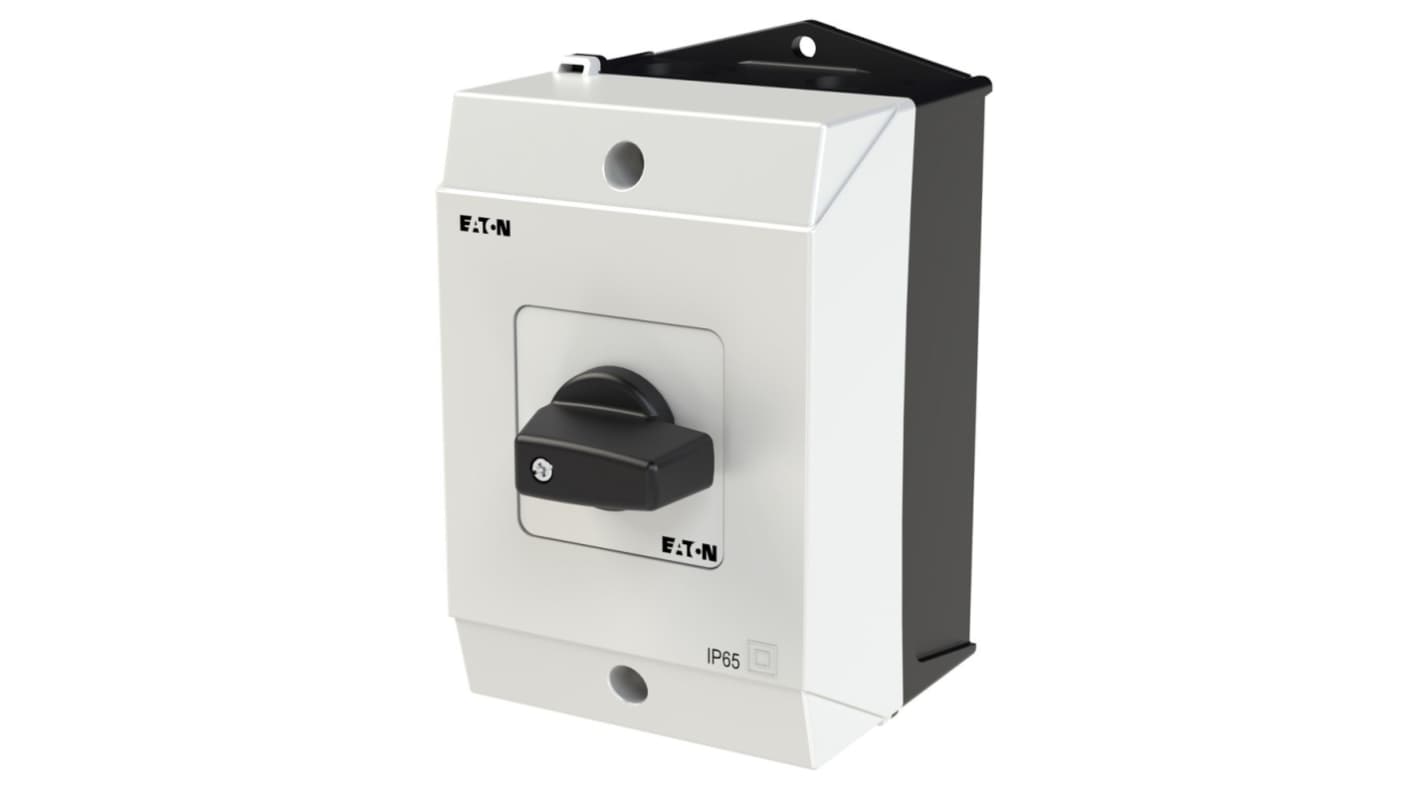

Eaton Cam Switch, 20A Maximum Current, 690V AC Maximum Voltage - 207095 T0-2-15907/I1
This Eaton Cam Switch is designed for robust performance as a Changeover Cam Switch, featuring a toggle actuator and surface mount design. It measures 137mm in length, 80mm in width, and 102mm in height. Intended for various electrical applications, this cam switch offers reliable operation, handling currents of up to 20A and voltages of 690V AC.
Features & Benefits
• Built to operate reliably within a temperature range of -25°C to 40°C
• IP65 rated for enhanced protection against dust and water
• Toggle actuator ensures easy manual control and functionality
• Screw terminals facilitate secure electrical connections
• 3 positions available to meet diverse control needs
• Mechanical lifespan of 400,000 operations for longevity
• IP65 rated for enhanced protection against dust and water
• Toggle actuator ensures easy manual control and functionality
• Screw terminals facilitate secure electrical connections
• 3 positions available to meet diverse control needs
• Mechanical lifespan of 400,000 operations for longevity
Applications
• Used for automation control in industrial environments
• Integrates seamlessly into electrical distribution systems
• Suitable for motor control and equipment operation
• Ideal for use in mechanical installations requiring robust switch solutions
• Integrates seamlessly into electrical distribution systems
• Suitable for motor control and equipment operation
• Ideal for use in mechanical installations requiring robust switch solutions
What are the terminal requirements for installation?
The cam switch features screw terminals designed to accommodate flexible wires with a cross-section of 0.75 to 2.5 mm² and solid or stranded wires up to 2.5 mm².
Can it operate under high humidity conditions?
Yes, the product is designed to withstand damp heat, meeting the requirements of IEC standards for high humidity applications.
What is the rated breaking capacity at 400V?
The rated breaking capacity at 400/415V is 110A, making it suitable for high-current applications.
How does the degree of protection enhance usability?
The IP65 rating provides excellent sealing against water and dust, allowing for reliable operation in challenging environments.
Is it suitable for ground mounting?
Yes, the switch can be effectively mounted on the ground, providing versatility in installation options.
