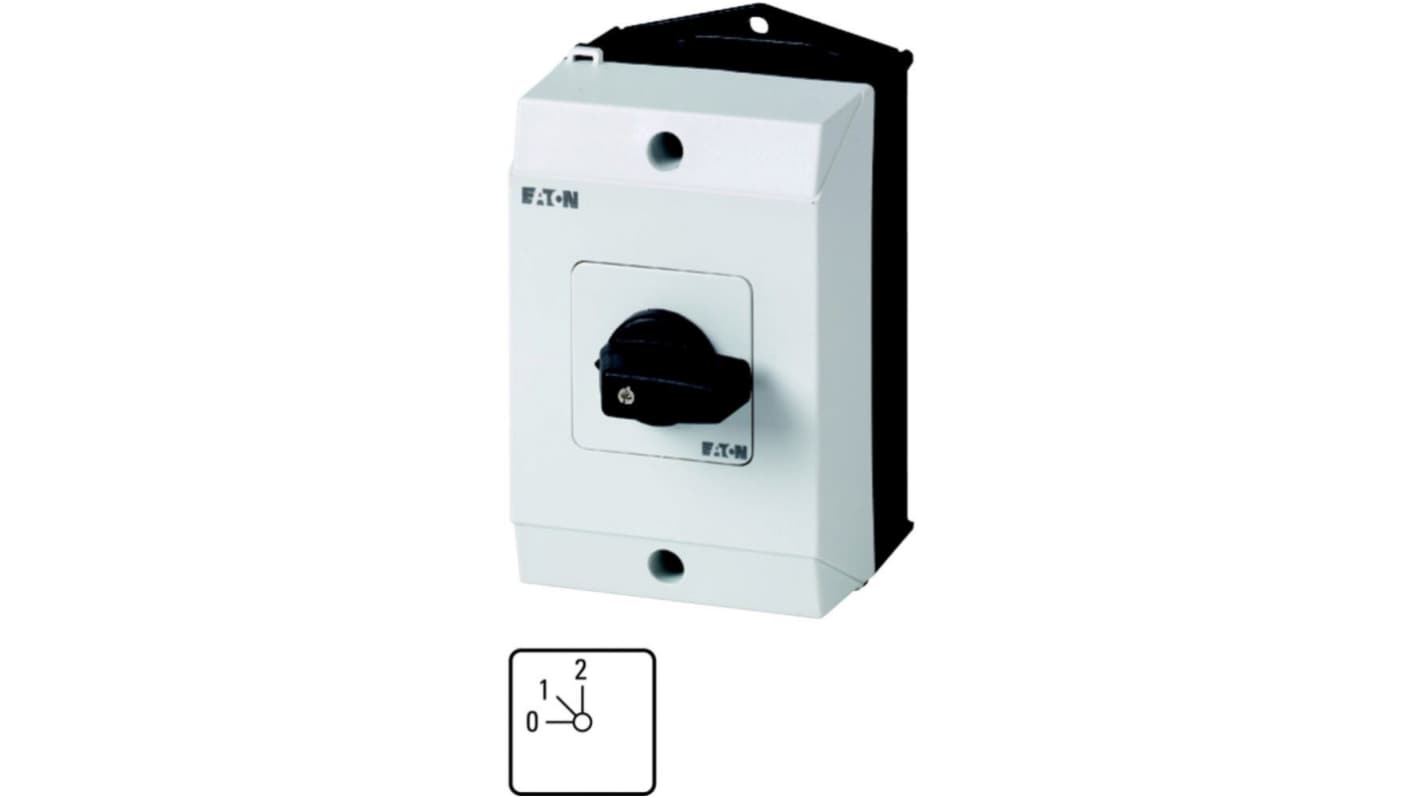

Eaton 3 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 255-328
- Mfr. Part No.:
- 222619 T0-2-8260/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£49.88
(exc. VAT)
£59.86
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 03 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.88 |
*price indicative
- RS Stock No.:
- 255-328
- Mfr. Part No.:
- 222619 T0-2-8260/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Number of Positions | 3 | |
| Mount Type | Surface | |
| Terminal Type | Screw | |
| Number of Poles | 2 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Toggle | |
| Contact Voltage | 690V ac | |
| Width | 8mm | |
| Standards/Approvals | IEC/EN 60947, IEC/EN 60204, IEC/EN 60947-3, VDE, VDE 0660 | |
| Hazardous Area Certification | NO | |
| Depth | 102mm | |
| Length | 137mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Number of Positions 3 | ||
Mount Type Surface | ||
Terminal Type Screw | ||
Number of Poles 2 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Toggle | ||
Contact Voltage 690V ac | ||
Width 8mm | ||
Standards/Approvals IEC/EN 60947, IEC/EN 60204, IEC/EN 60947-3, VDE, VDE 0660 | ||
Hazardous Area Certification NO | ||
Depth 102mm | ||
Length 137mm | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton Moeller series T0 Step switch is an exceptional solution designed for high-performance applications in control and automation. With its robust construction and innovative design, this step switch meets the demanding needs of diverse environments, ensuring reliability and longevity. Featuring a double pole configuration with a maintained actuator function, this surface-mounted switch offers seamless operation with a thermal stability guarantee. The comprehensive specifications ensure that it is well-suited for various industrial applications, making it an ideal choice for users seeking high standards in electrical equipment. Engineered for easy installation and effective heat dissipation, the T0 Step switch guarantees optimal performance across a range of conditions, from extreme temperatures to intensive operational use. With its dual functionality and myriad certifications, users can rely on this switch for safe and effective control in any setup.
Offers surface mounting for versatile installation
Showcases a toggle actuator style for precise control
Designed with a pollution degree rating of 3 for high durability
Features a high degree of protection rated at IP65
Includes a thermal stability verification to uphold reliability
Ensures electromagnetic compatibility for smooth operational flow
Incorporates a shock resistance rating of 15 g to withstand mechanical impacts
Durable enough to handle up to 400,000 mechanical operations
Provides secure connections with a tightening torque of 1 Nm
Includes corrosion resistance measures to ensure longevity in challenging environments
