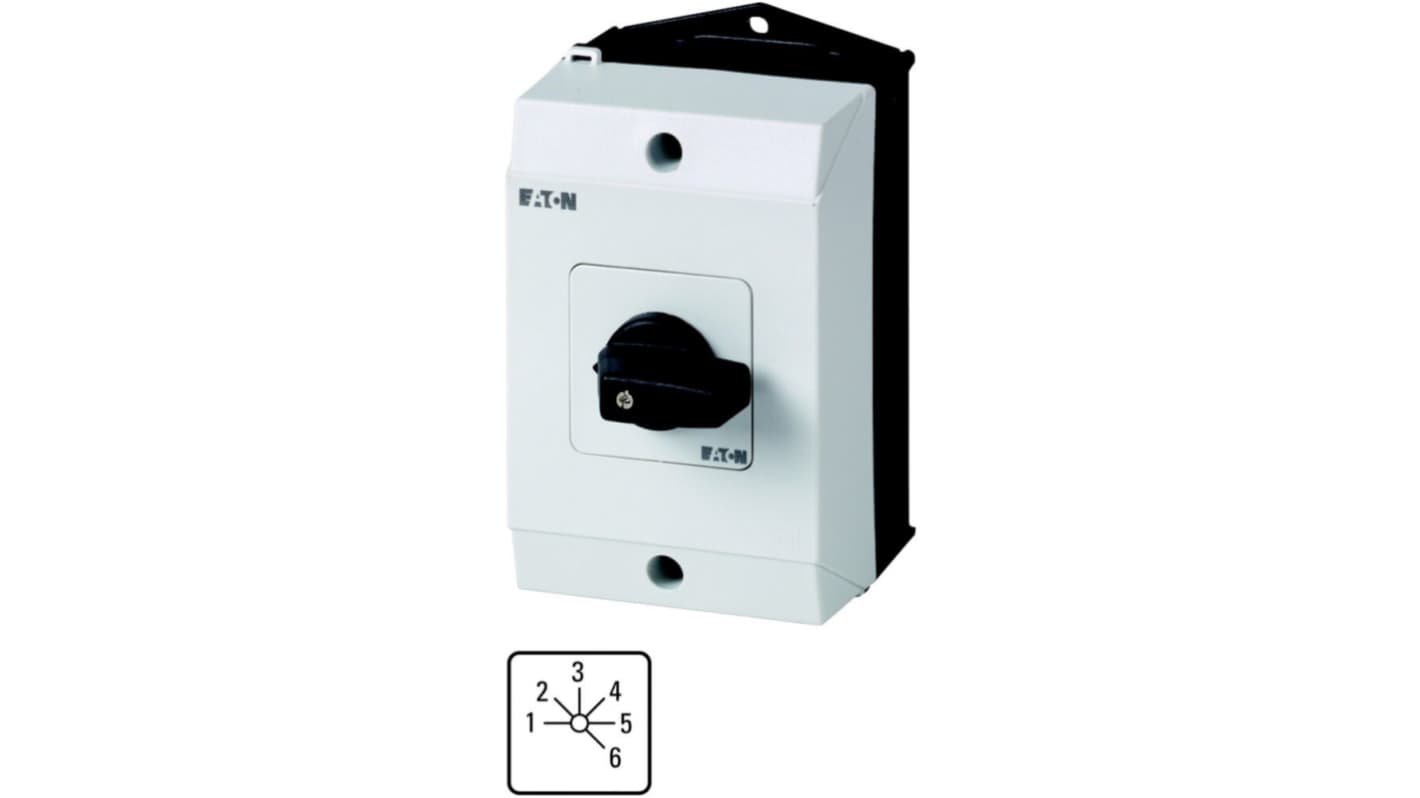

Eaton 6 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 255-125
- Mfr. Part No.:
- 222640 T0-3-151/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£73.58
(exc. VAT)
£88.30
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 12 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £73.58 |
*price indicative
- RS Stock No.:
- 255-125
- Mfr. Part No.:
- 222640 T0-3-151/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Mount Type | Surface | |
| Number of Positions | 6 | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Toggle | |
| Contact Voltage | 690V ac | |
| Standards/Approvals | IEC/EN 60204, IEC/EN 60947, VDE 0660, IEC/EN 60947-3, VDE | |
| Hazardous Area Certification | NO | |
| Length | 137mm | |
| Width | 8mm | |
| Depth | 102mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Mount Type Surface | ||
Number of Positions 6 | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Toggle | ||
Contact Voltage 690V ac | ||
Standards/Approvals IEC/EN 60204, IEC/EN 60947, VDE 0660, IEC/EN 60947-3, VDE | ||
Hazardous Area Certification NO | ||
Length 137mm | ||
Width 8mm | ||
Depth 102mm | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
The Eaton T0 series step switch is engineered for precision and reliability, making it ideal for demanding applications. This surface-mounted device boasts a robust design that stands up to rigorous operational conditions while providing seamless control. With its multiple contact units and extensive operational ratings, the switch ensures efficient performance, whether in industrial settings or smaller installations. The unit also features a maintained contact mechanism, which enhances operational safety and performance under various load conditions. Its compact form factor and strategic mounting options make it versatile for a range of configurations, simplifying installation and maintenance procedures. Ensuring compliance with international standards, this switch is built with robust materials to deliver excellent longevity and reliability in service.
Designed for surface mounting, facilitating flexible installation
Maintained contact mechanism enhances safety and reliability
Multiple contact units provide greater operational versatility
Robust construction withstands harsh operational conditions
Compact size allows for more efficient use of space in control panels
Excellent heat dissipation characteristics to maintain performance
Compatibility with various operational voltages ensures wide usage
Complies with international safety standards for peace of mind
High mechanical lifespan enhances long-term value and performance
