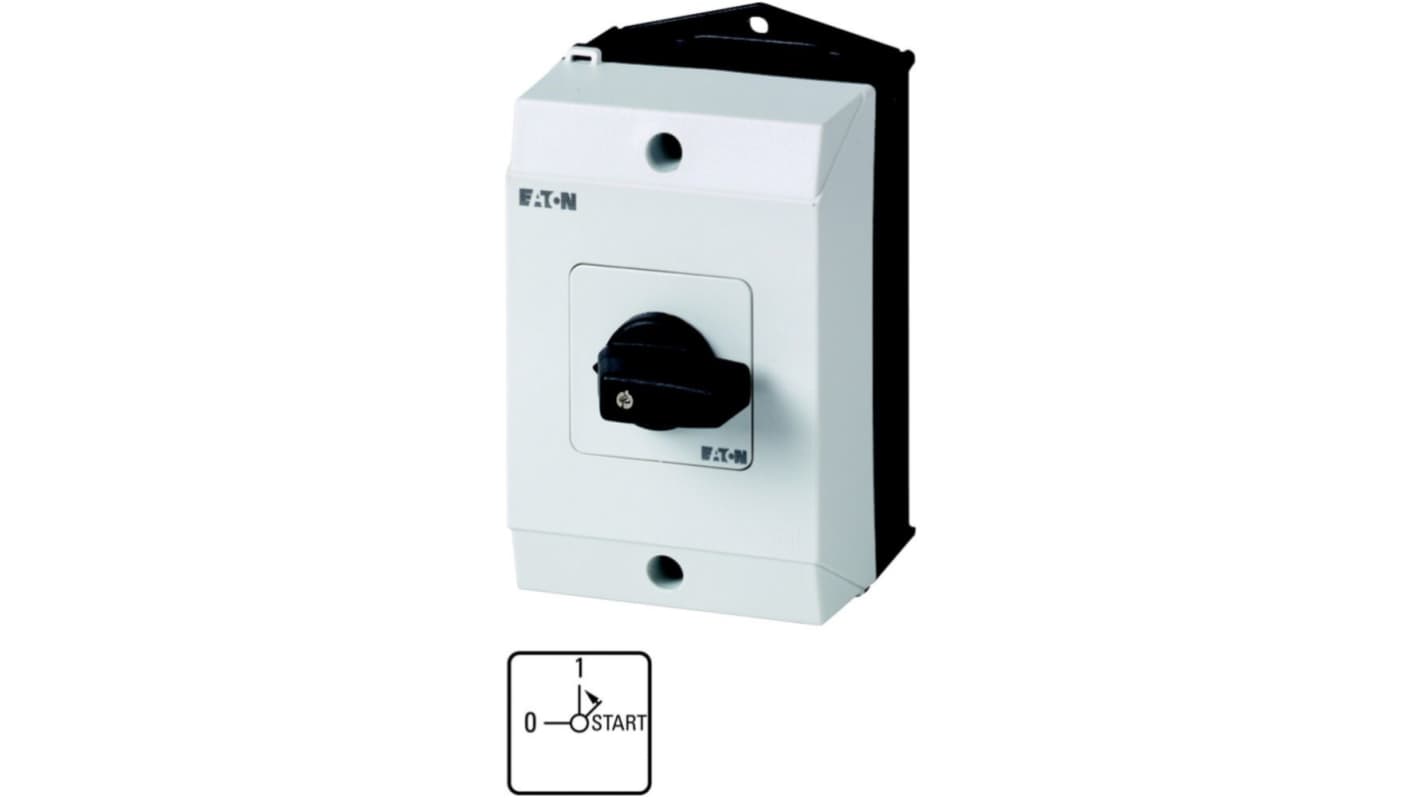

Eaton 3 Position 45 °, Spring Return Actuator 20 A
- RS Stock No.:
- 255-087
- Mfr. Part No.:
- 222623 T0-2-8425/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£49.98
(exc. VAT)
£59.98
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 19 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.98 |
*price indicative
- RS Stock No.:
- 255-087
- Mfr. Part No.:
- 222623 T0-2-8425/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Series | Eaton Moeller | |
| Product Type | Cam Switch | |
| Mount Type | Surface | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Number of Poles | 2 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 40°C | |
| Actuator Type | Spring Return | |
| Contact Voltage | 690V ac | |
| Width | 8mm | |
| Hazardous Area Certification | No | |
| Standards/Approvals | VDE 0660, VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204 | |
| Depth | 102mm | |
| Length | 137mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Series Eaton Moeller | ||
Product Type Cam Switch | ||
Mount Type Surface | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Number of Poles 2 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 40°C | ||
Actuator Type Spring Return | ||
Contact Voltage 690V ac | ||
Width 8mm | ||
Hazardous Area Certification No | ||
Standards/Approvals VDE 0660, VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204 | ||
Depth 102mm | ||
Length 137mm | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton auxiliary winding switch from The Eaton Moeller series T0 is designed to provide superior operational reliability and ease of integration into various control systems. Featuring a robust two-pole design, it ensures excellent performance in demanding environments, making it ideal for industrial applications. The switch boasts surface mounting capabilities and comes equipped with user-friendly features such as a maintained actuator function and a reliable spring-return mechanism. Its compact dimensions allow for versatile installation options, while the mechanical lifespan of 400,000 operations promises long-term viability. With specific design considerations for maximum corrosion resistance and compliance to stringent industry standards, this device offers peace of mind alongside performance. The Eaton Moeller T0 series is synonymous with quality, assuring users of its impeccable standards in electrical control solutions.
Compatible with a range of modular spacings for flexible installation
Ensures protection against electric shock to enhance safety protocols
Rated IP65, providing exceptional resistance against dust and moisture
Includes provisions for heat dissipation, ensuring optimal performance
Designed for both ground and surface mounting, adapting to varying installation needs
Offers multiple switch positions to cater to diverse operational requirements
Incorporates a toggle actuator for intuitive manual operation
Temperature and corrosion resistant, promoting extended usage in challenging environments
