Eaton 3 Position 45 °, Short Lever Actuator 20 A
- RS Stock No.:
- 271-5424
- Mfr. Part No.:
- 207434 T0-3-8216/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£49.93
(exc. VAT)
£59.92
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- Plus 4 unit(s) shipping from 04 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £49.93 |
*price indicative
- RS Stock No.:
- 271-5424
- Mfr. Part No.:
- 207434 T0-3-8216/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller Series T0 | |
| Number of Positions | 3 | |
| Mount Type | Surface | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Maximum Operating Temperature | 40°C | |
| Contact Voltage | 690V | |
| Actuator Type | Short Lever | |
| Hazardous Area Certification | NO | |
| Standards/Approvals | CSA, EN/IEC 60204 | |
| Width | 80mm | |
| Length | 137mm | |
| Depth | 122mm | |
| Mechanical Life | 400000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller Series T0 | ||
Number of Positions 3 | ||
Mount Type Surface | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Maximum Operating Temperature 40°C | ||
Contact Voltage 690V | ||
Actuator Type Short Lever | ||
Hazardous Area Certification NO | ||
Standards/Approvals CSA, EN/IEC 60204 | ||
Width 80mm | ||
Length 137mm | ||
Depth 122mm | ||
Mechanical Life 400000Cycles | ||

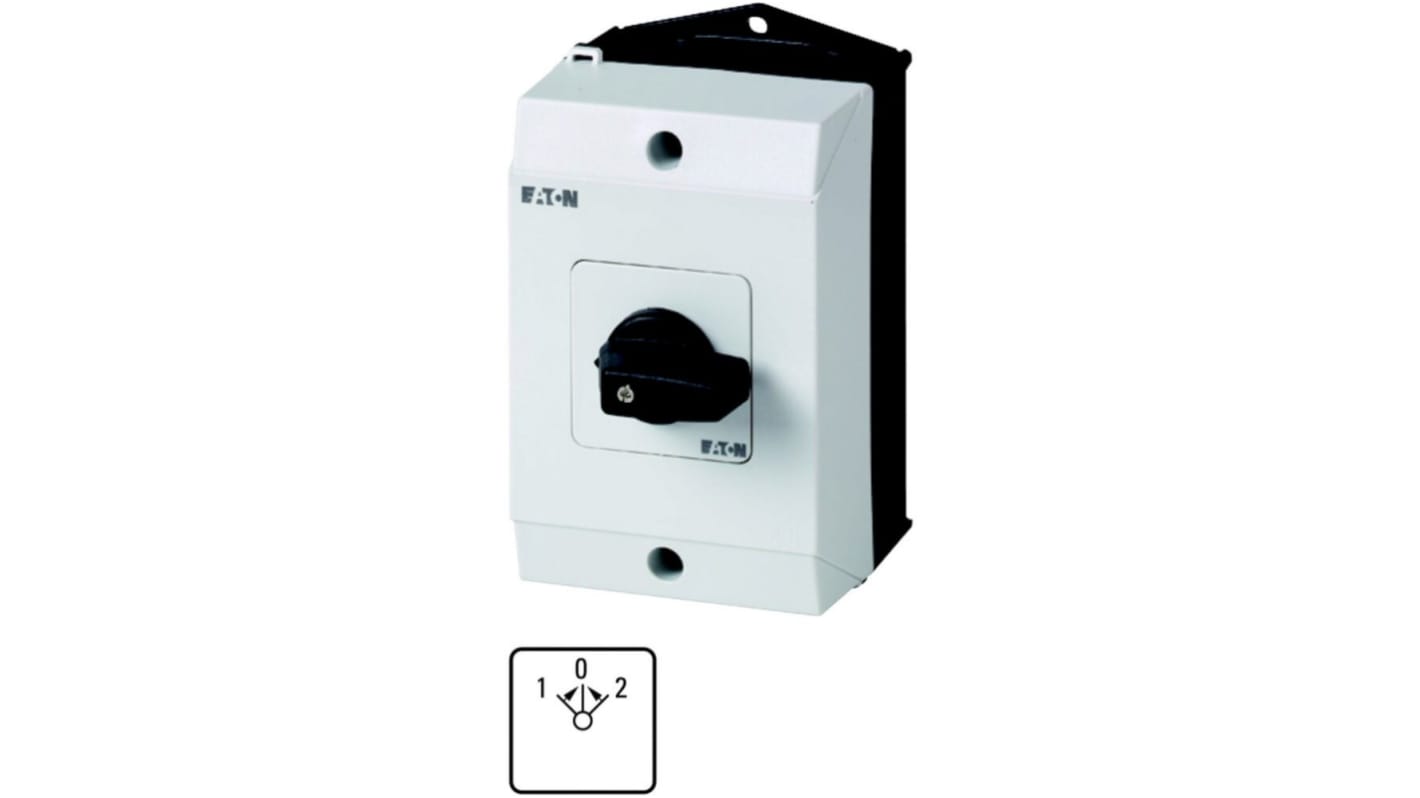

The Eaton changeover control switch is type of electrical switch operated by rotation. The switch allow the user to turn a knob or shaft that increases or decreases the resistance conducted through the contacts depending on the direction of the turn.
Part group reference T0
Degree of Protection IP65
Design surface mounting
