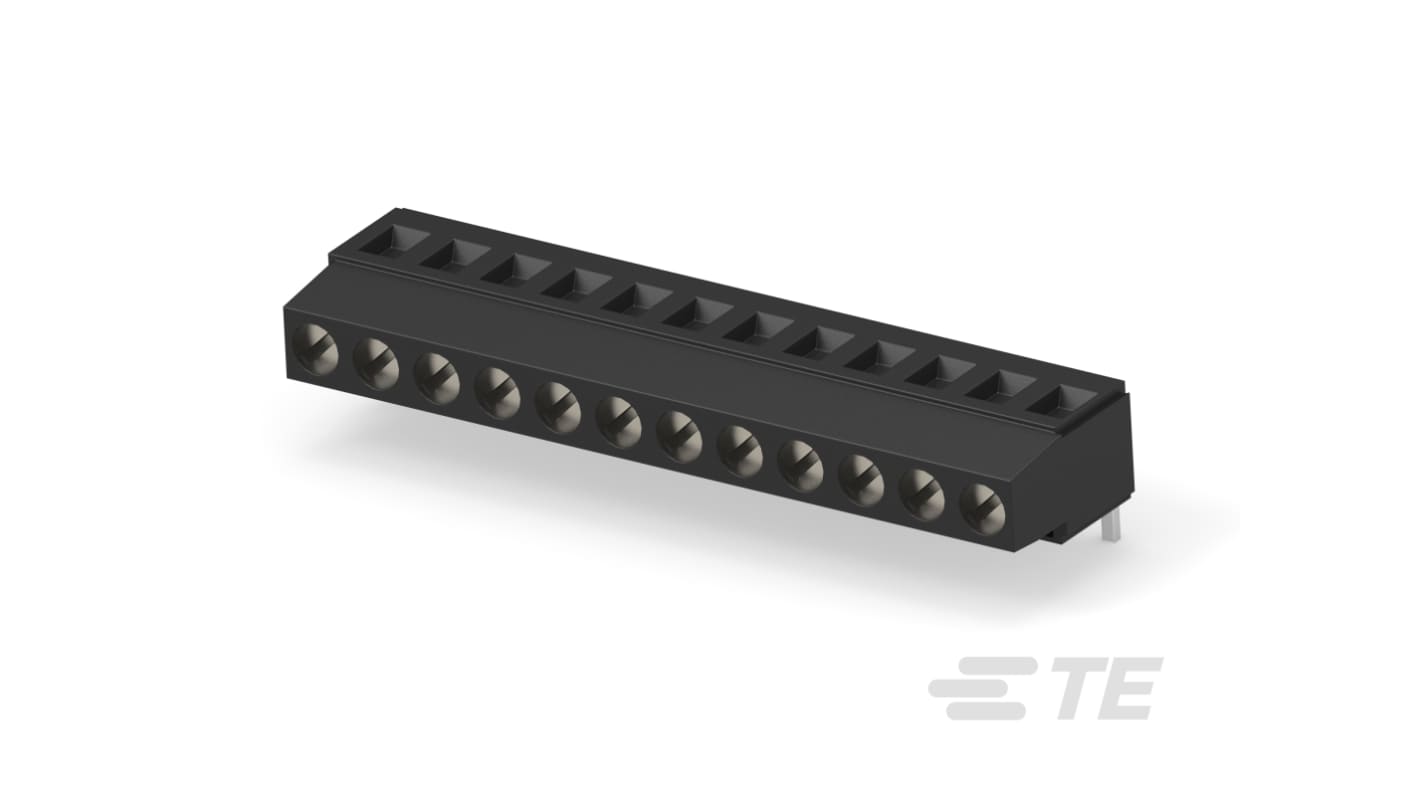

TE Connectivity Barrier Strip, 12 Contact, 5.08 mm Pitch, 1 Row, 300 V, 17.5A
- RS Stock No.:
- 508-407
- Mfr. Part No.:
- 1-1546073-2
- Brand:
- TE Connectivity
Subtotal (1 box of 30 units)*
£165.55
(exc. VAT)
£198.66
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 06 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Box(es) | Per Box | Per unit* |
|---|---|---|
| 1 + | £165.55 | £5.518 |
*price indicative
- RS Stock No.:
- 508-407
- Mfr. Part No.:
- 1-1546073-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Number of Contacts | 12 | |
| Product Type | Barrier Strip | |
| Pitch | 5.08mm | |
| Current | 17.5A | |
| Orientation | Right Angle | |
| Contact Material | Brass | |
| Housing Material | Polyamide 66 | |
| Contact Plating | Tin | |
| Number of Rows | 1 | |
| Screw Size | M3 | |
| Wire Size | 30 to 12 AWG | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 110°C | |
| Voltage | 300 V | |
| Series | Buchanan | |
| Standards/Approvals | UL | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Number of Contacts 12 | ||
Product Type Barrier Strip | ||
Pitch 5.08mm | ||
Current 17.5A | ||
Orientation Right Angle | ||
Contact Material Brass | ||
Housing Material Polyamide 66 | ||
Contact Plating Tin | ||
Number of Rows 1 | ||
Screw Size M3 | ||
Wire Size 30 to 12 AWG | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 110°C | ||
Voltage 300 V | ||
Series Buchanan | ||
Standards/Approvals UL | ||
- COO (Country of Origin):
- US
The TE Connectivity 12 Position PCB Terminal Block is designed to facilitate reliable connections in various electronic applications. This header connector, specifically crafted for wire-to-board configurations, ensures a robust and efficient electrical interface. Its compact design with a 5.08 mm centerline enhances space utilization on PCBs, while the 90° wire entry angle enables streamlined installations, making it ideal for tight spaces. It accommodates wire sizes ranging from 30 to 12 AWG, ensuring compatibility with a broad spectrum of wiring needs. Constructed from durable materials, this terminal block offers an operating voltage of up to 300 VAC, ensuring safety and longevity in demanding environments. With features tailored for performance and ease of use, it's the perfect choice for both power and signal circuit applications.
Offers a reliable wire protection feature to enhance safety
Constructed from robust PA 66 housing material for durability
Right angle orientation facilitates compact mounting in limited spaces
Easy integration with through hole solder termination method
Nickel-plated screw ensures optimal mechanical attachment
Exhibits low halogen content, making it eco-friendly
Side stackable configuration allows for flexible circuit design
Manufactured to comply with EU RoHS and ELV directives
Includes efficient cadmium-free materials for safer usage
