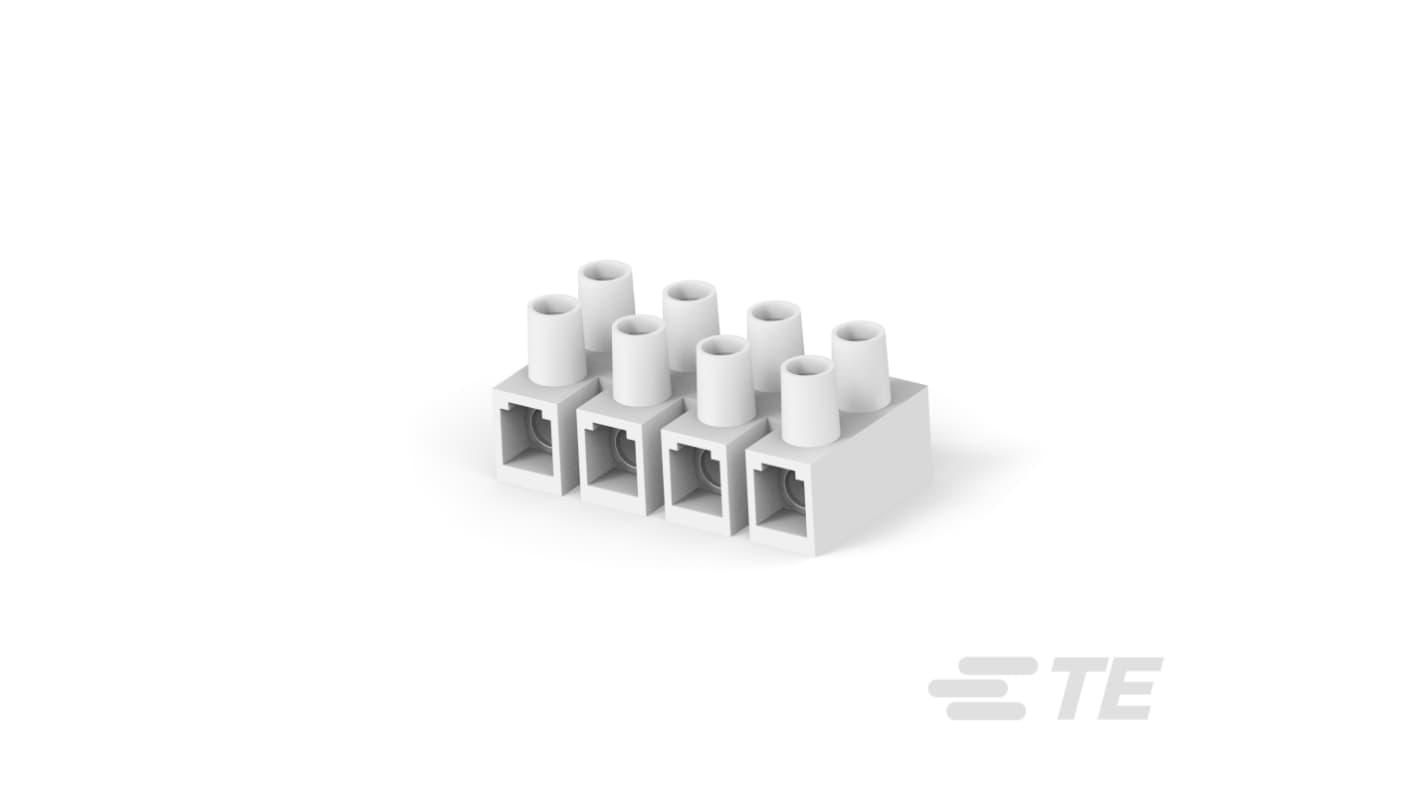

TE Connectivity Barrier Strip, 4 Contact, 14.5 mm Pitch, 1 Row, 600V, 65A
- RS Stock No.:
- 473-090
- Distrelec Article No.:
- 304-63-189
- Mfr. Part No.:
- 1776313-4
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
- RS Stock No.:
- 473-090
- Distrelec Article No.:
- 304-63-189
- Mfr. Part No.:
- 1776313-4
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | Barrier Strip | |
| Number of Contacts | 4 | |
| Pitch | 14.5mm | |
| Orientation | Right Angle | |
| Current | 65A | |
| Contact Material | Brass | |
| Housing Material | Polyamide 6 | |
| Contact Plating | Tin | |
| Number of Rows | 1 | |
| Screw Size | M3.5 | |
| Wire Size | 14AWG | |
| Minimum Operating Temperature | -35°C | |
| Maximum Operating Temperature | 100°C | |
| Voltage | 600V | |
| Series | Europa | |
| Standards/Approvals | UL 94 V-2 | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type Barrier Strip | ||
Number of Contacts 4 | ||
Pitch 14.5mm | ||
Orientation Right Angle | ||
Current 65A | ||
Contact Material Brass | ||
Housing Material Polyamide 6 | ||
Contact Plating Tin | ||
Number of Rows 1 | ||
Screw Size M3.5 | ||
Wire Size 14AWG | ||
Minimum Operating Temperature -35°C | ||
Maximum Operating Temperature 100°C | ||
Voltage 600V | ||
Series Europa | ||
Standards/Approvals UL 94 V-2 | ||
- COO (Country of Origin):
- DE
The TE Connectivity 4 Position Barrier Strip is a reliable solution designed for efficient wire-to-wire connections, particularly ideal for applications involving a variety of wire sizes. Engineered to accommodate a centreline of 14.5 mm, this versatile product ensures easy installation and maintenance. Its robust construction supports an operating voltage of up to 600 V, enabling it to operate effectively in demanding environments. The natural colour polyamide housing offers essential durability while maintaining a low profile, making it suitable for various industrial applications. Designed for panel mounting, this connector excels in performance and functionality, ensuring a speedy, efficient assembly for both new projects and retrofits.
Offers compatibility with multiple wire sizes for flexible usage
Constructed with sturdy polyamide material for enhanced durability
Designed to provide a safe and secure wire connection
Facilitates a streamlined installation process with 4.3mm diameter mounting holes
Achieves low halogen content, making it environmentally friendly
Supports efficient operation with a contact current rating of 65 A
Compliant with various industry standards, ensuring reliability and safety
Incorporates quick connect tab plating for efficient connectivity
